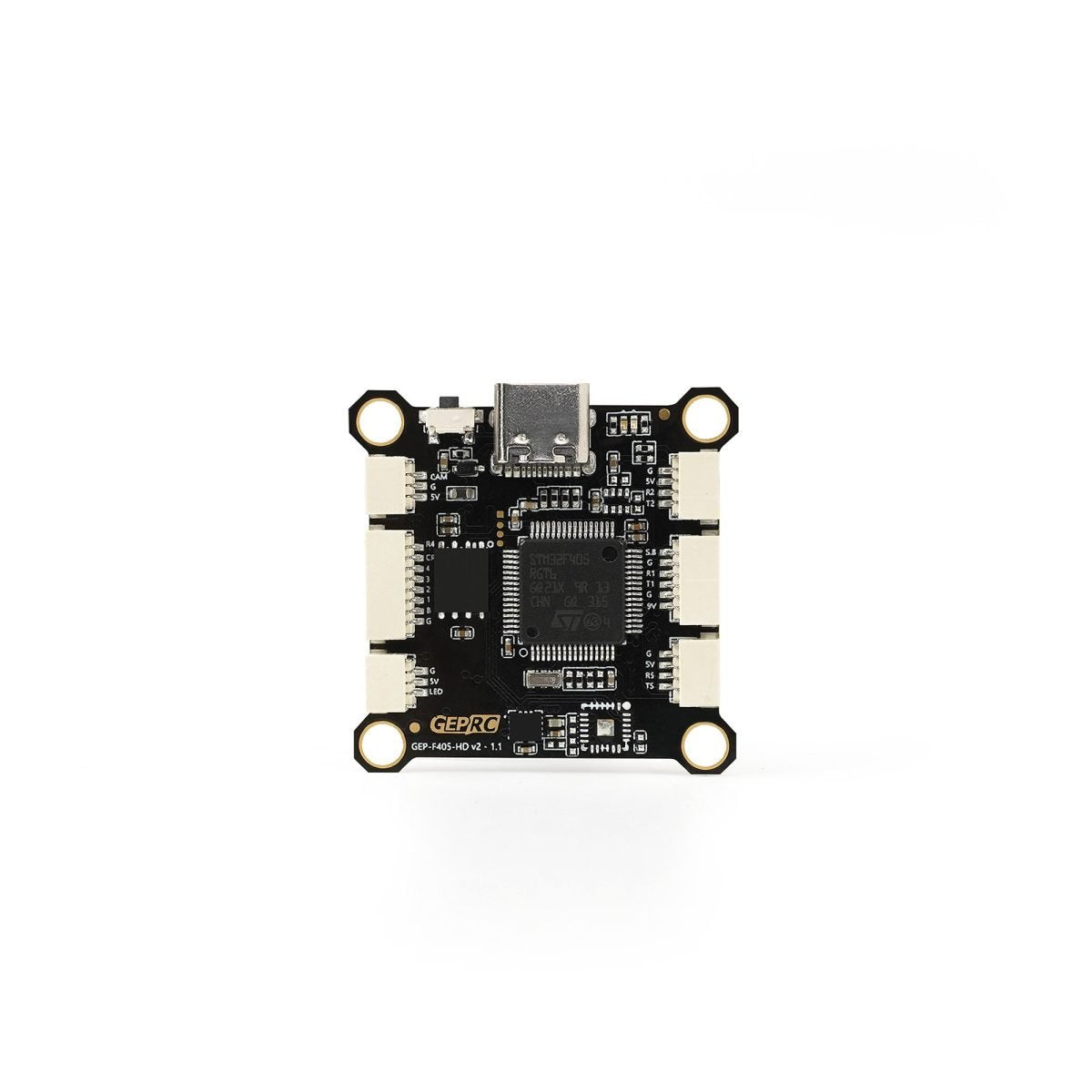

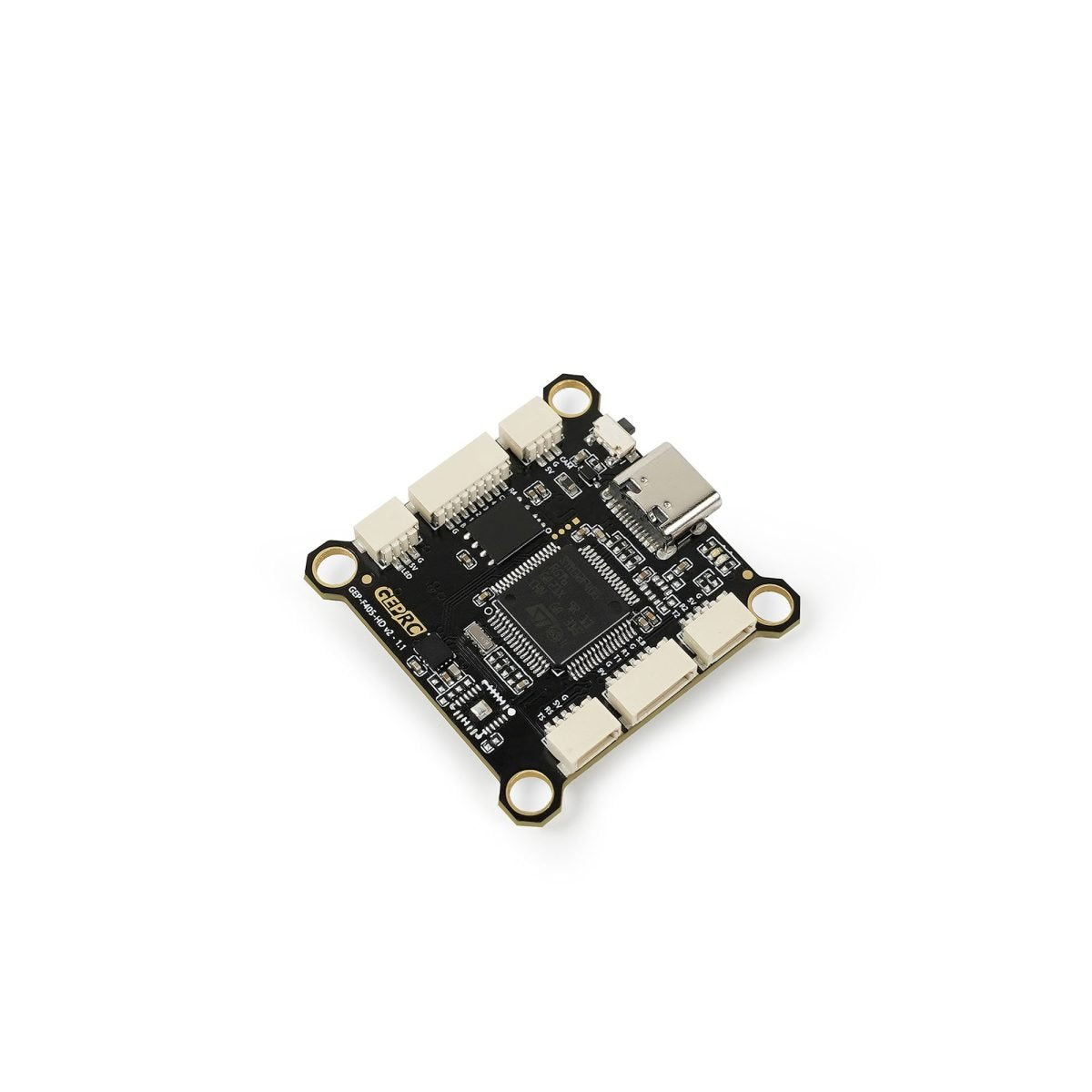

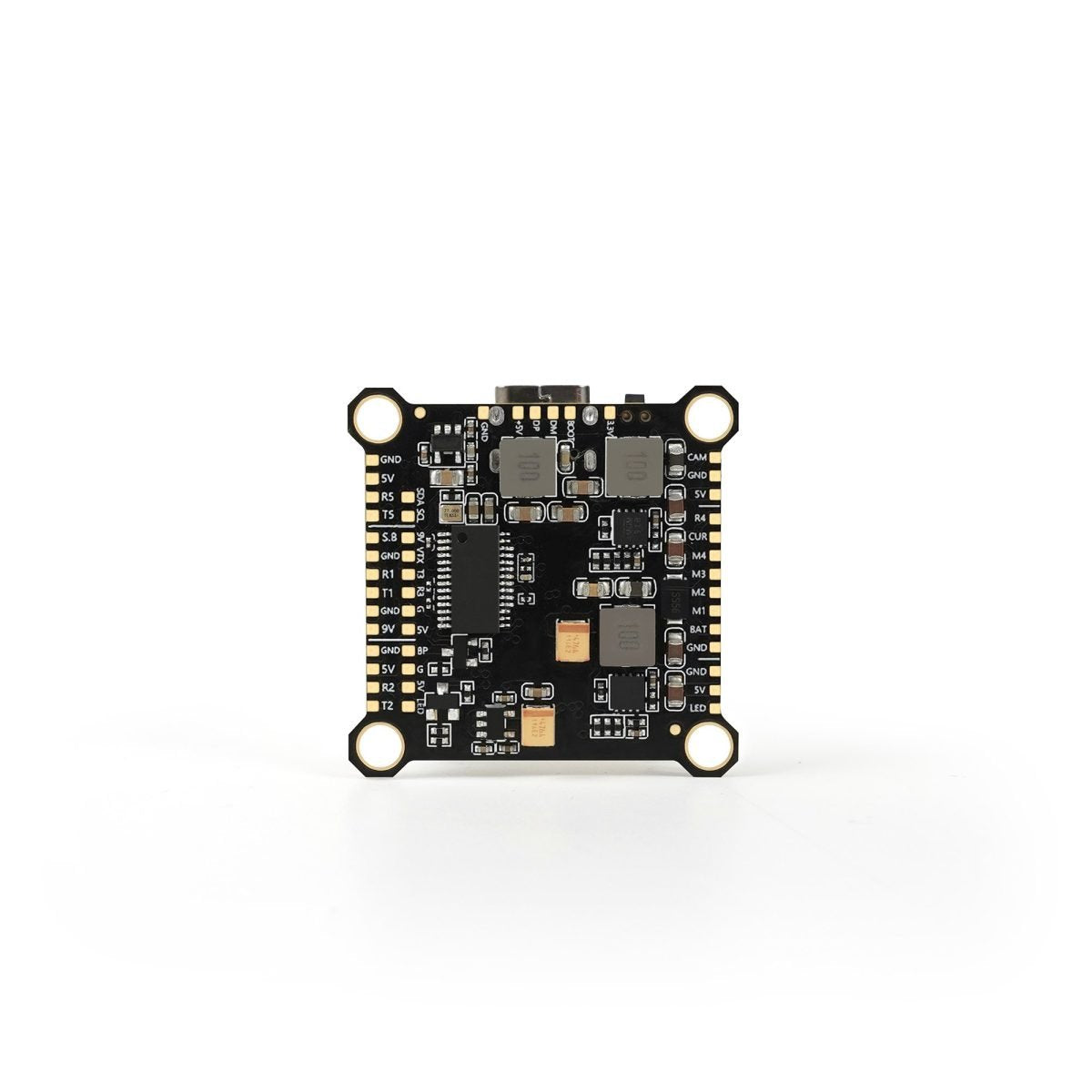

GEP-F405-HD V2 Flight Controller

**Tax & Customs Notice (EU Customers)**

For orders **under €150**, the displayed prices **include all VAT and taxes**. You won’t need to pay anything extra upon delivery.

For orders **over €150**, import VAT and customs duties are **not included** in the price and must be paid by the recipient upon delivery, as per EU regulations.

If you have any questions about taxes or shipping, feel free to contact us — we're happy to help!

Features

1. Use mainstream STM32F405 chip
2. Equipped with the latest 42688-P gyroscope
3. 16M black box storage
4. Integrated LC filter
5. Upgrade type-C USB interface
6. Directly plugged into the DJI Air Unit
7. Simple and reasonable installation method, the shock absorber can make the gyroscope work very stably
8. 9V 2.5A + 5V 3A dual independent BEC

Specifications

• MCU：STM32F405
• IMU：ICM42688-P(SPI)
• Air Unit Connection：Direct plugging into DJI Air Unit
• Black Box：16M onboard
• USB Interface：Type-C
• OSD：BetaFlight OSD w/ AT7456E chip
• BEC：5V@3A,9V@2.5A dual BEC
• Firmware Target：GEPRCF405

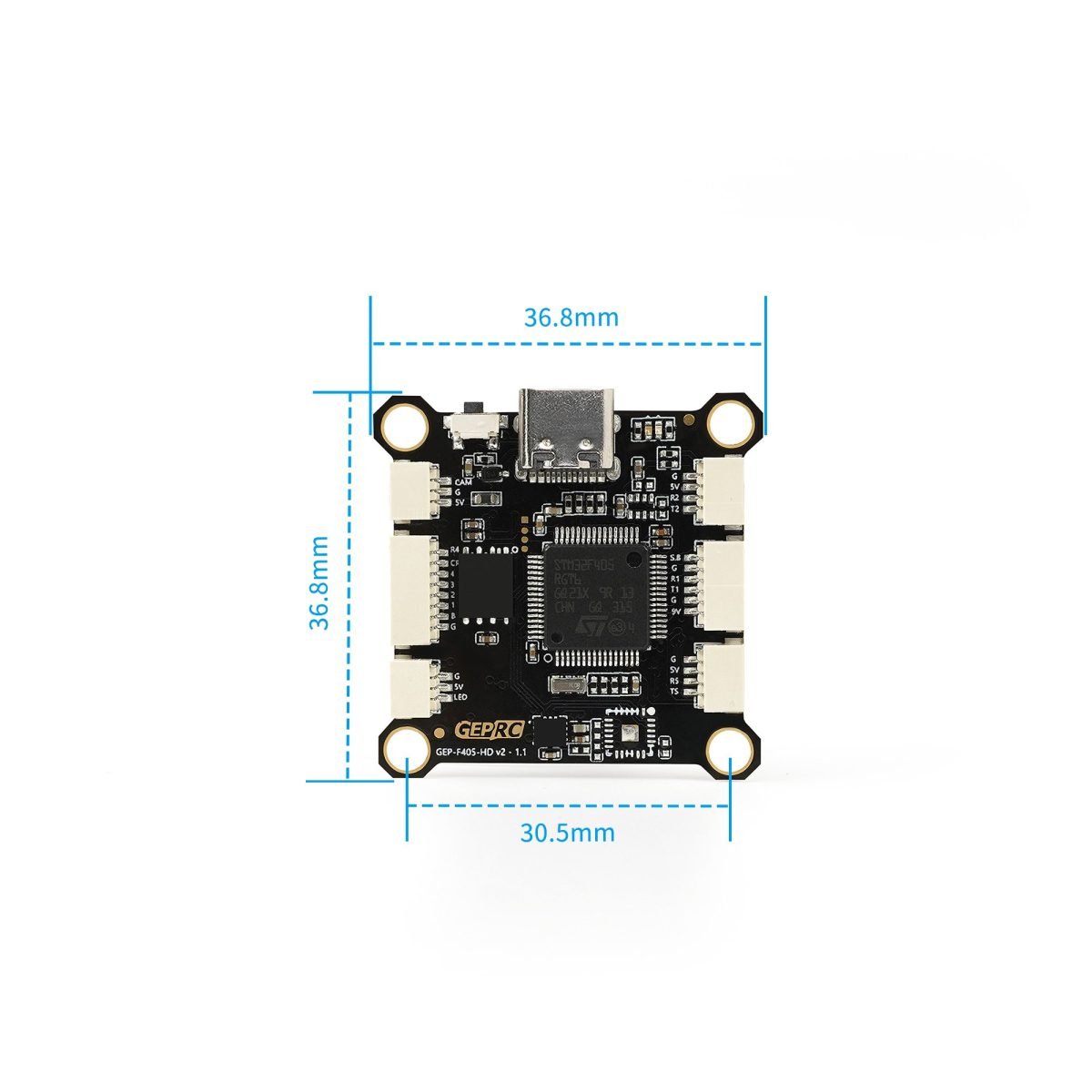

• Size：36.8×36.8mm, hole 30.5×30.5mm，φ4mm hole becomes φ3mm after using a silicone shock-absorbing circle.
• Input Voltage：3-6S LiPo
• UART：6
• Power Filter：Integrated LC filter

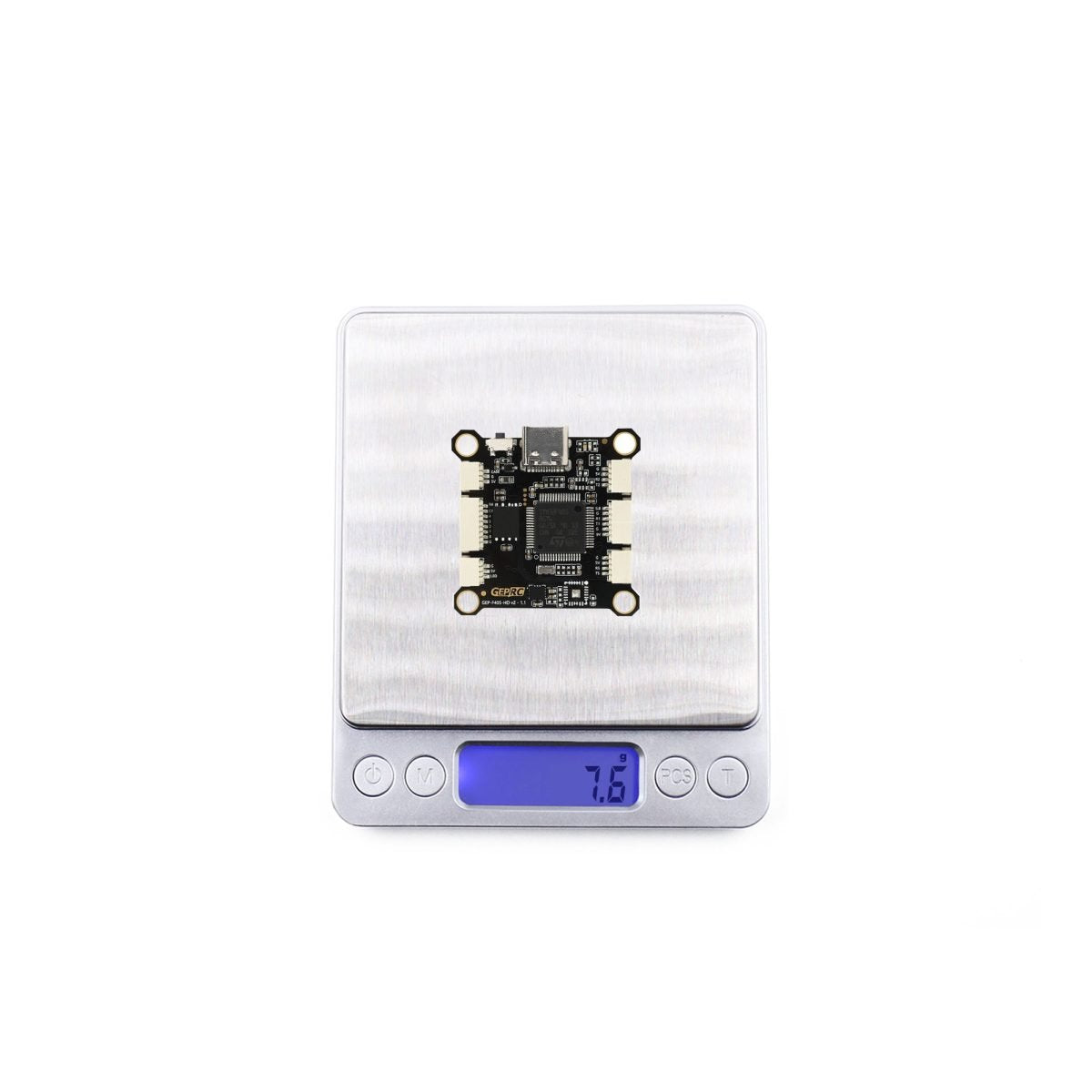

• Weight：7.7g

Includes

1 x Flight Controller

1 x DJI Air Unit Adapter Cable

1 x Flight Controller Adapter Cable

4 x Nylon nuts

4 x Silicone grommets

2 x sh1.0 4pinsilicone cable

1 x Camera connection cable
