Summary

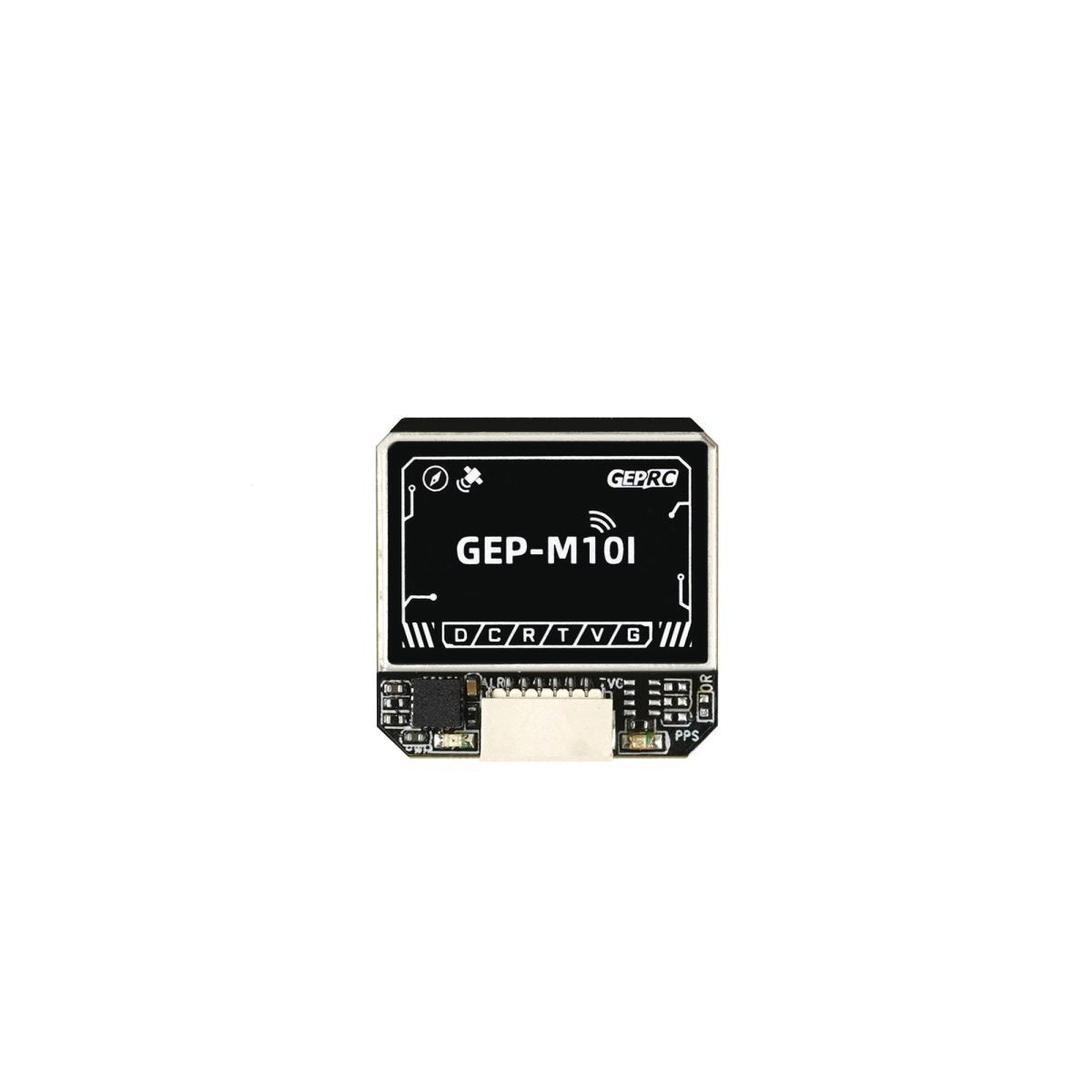

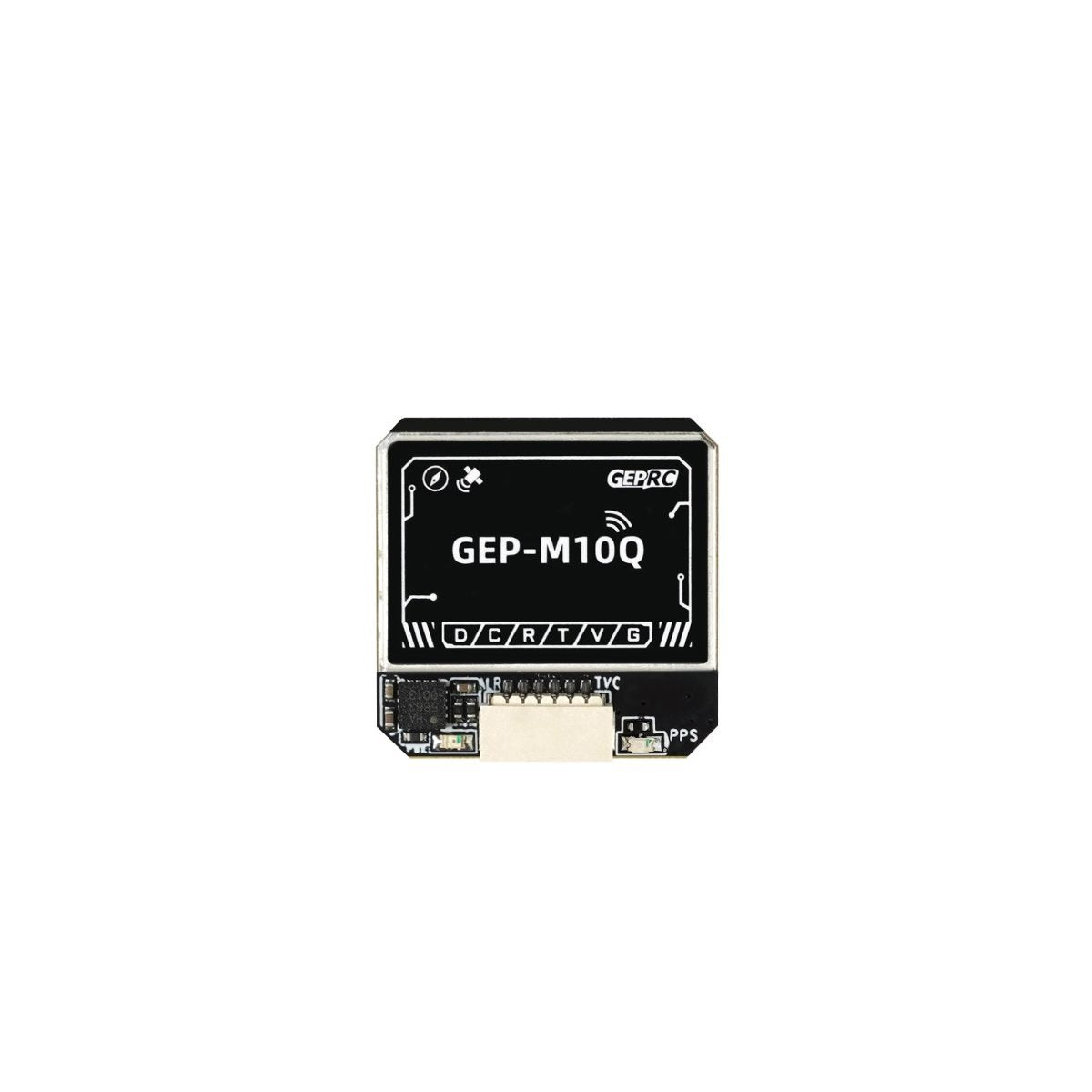

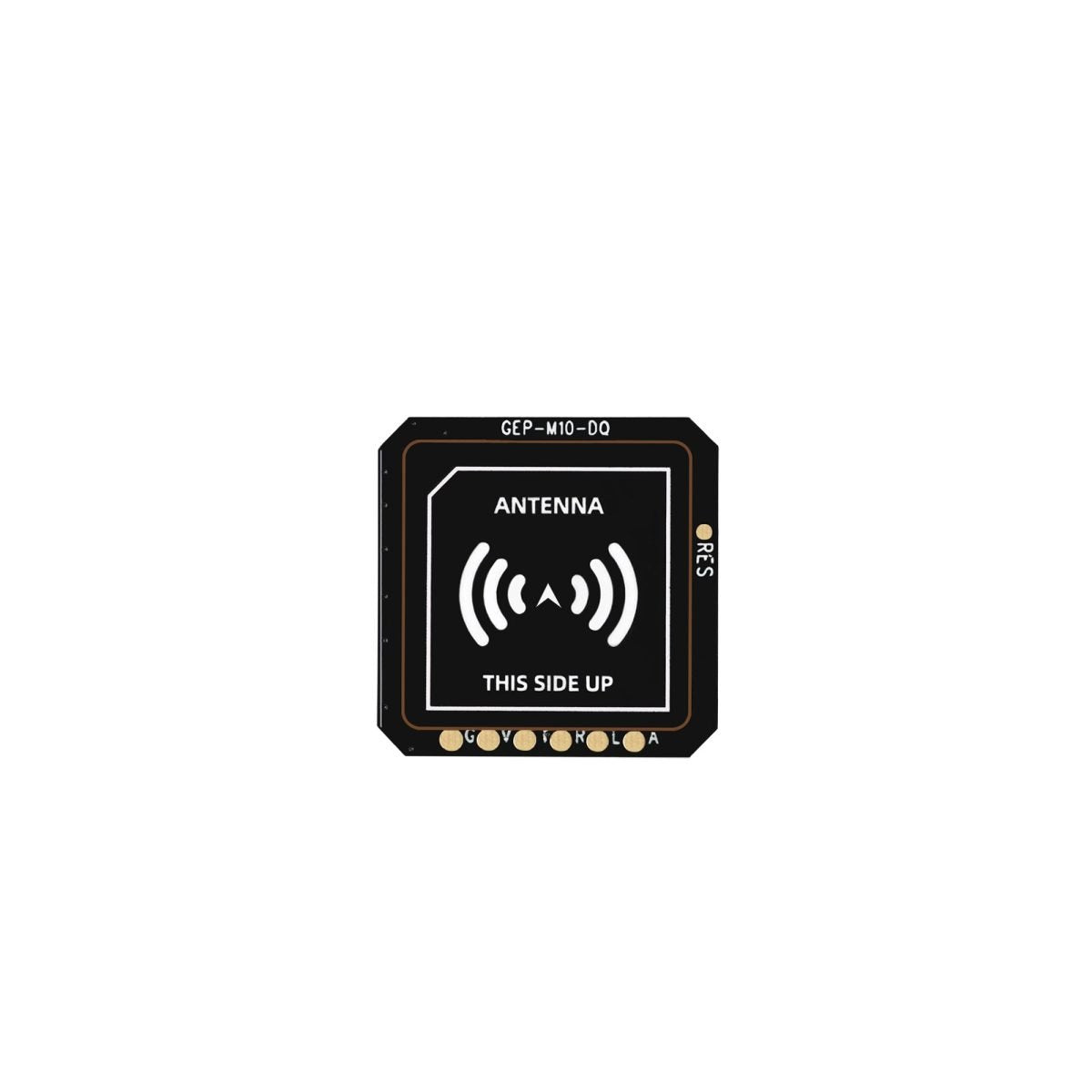

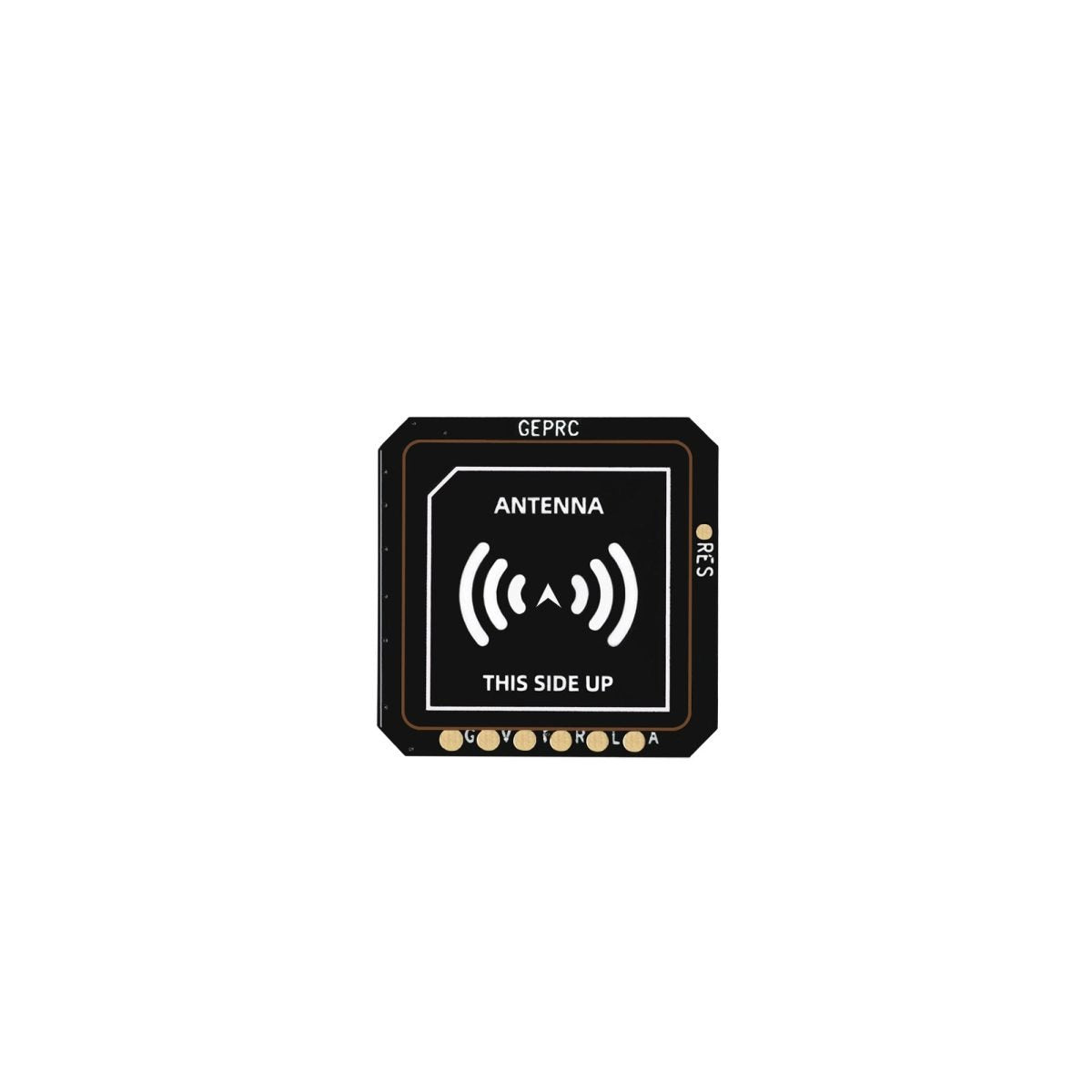

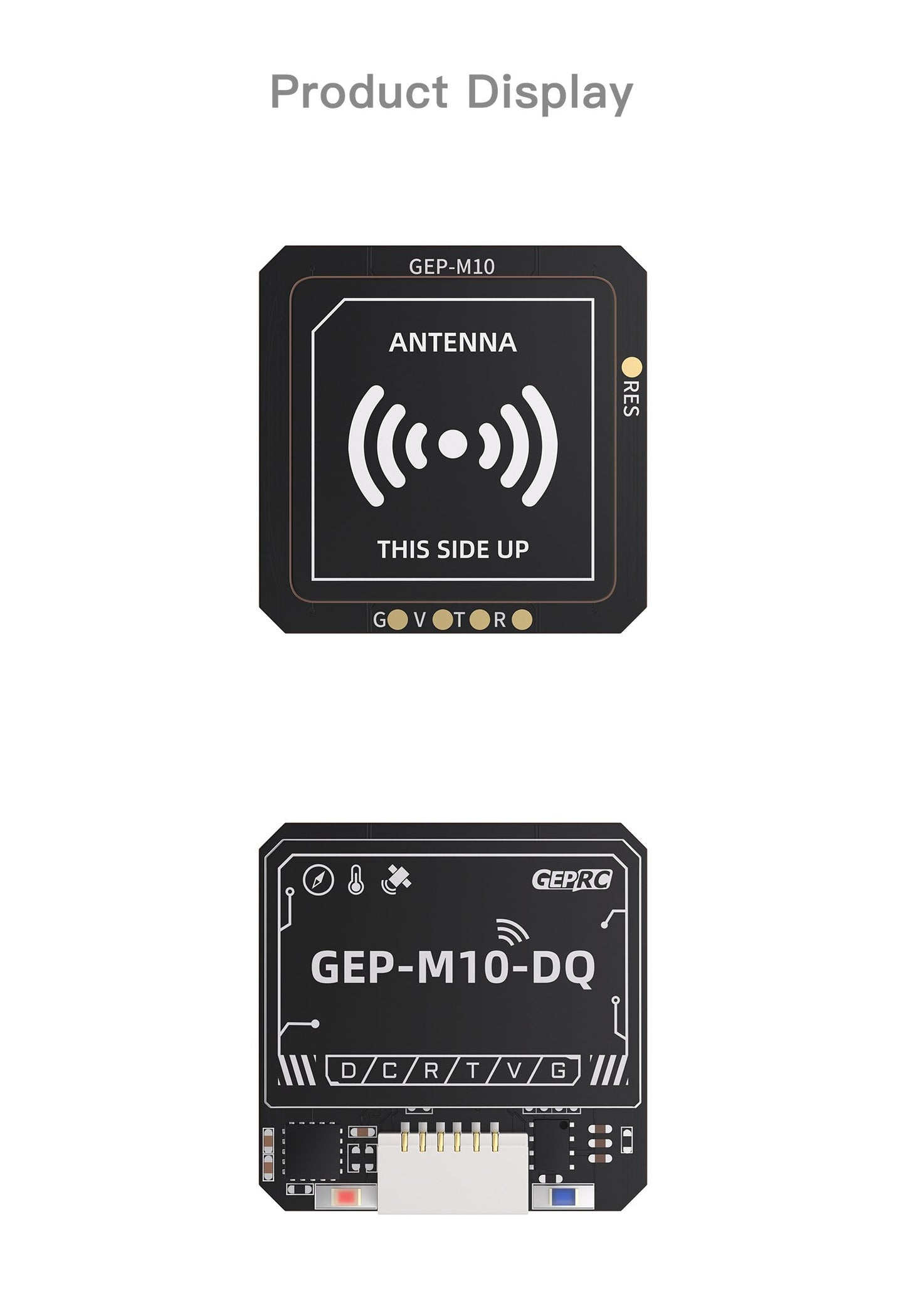

The GEPRC GPS series product line has been fully upgraded. The GEP-M10 series of GPS products based on u-blox M10050 chip are now launched.

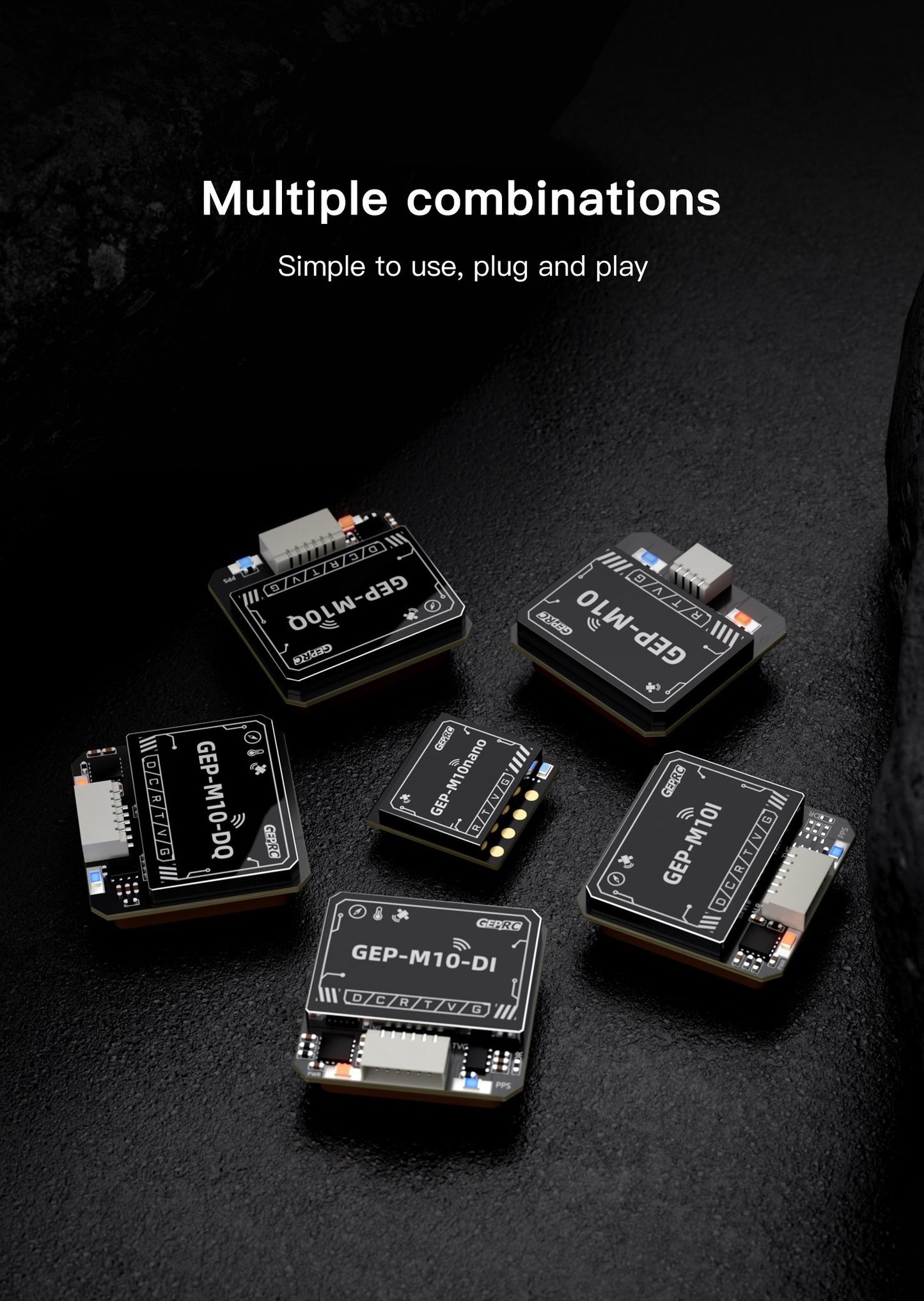

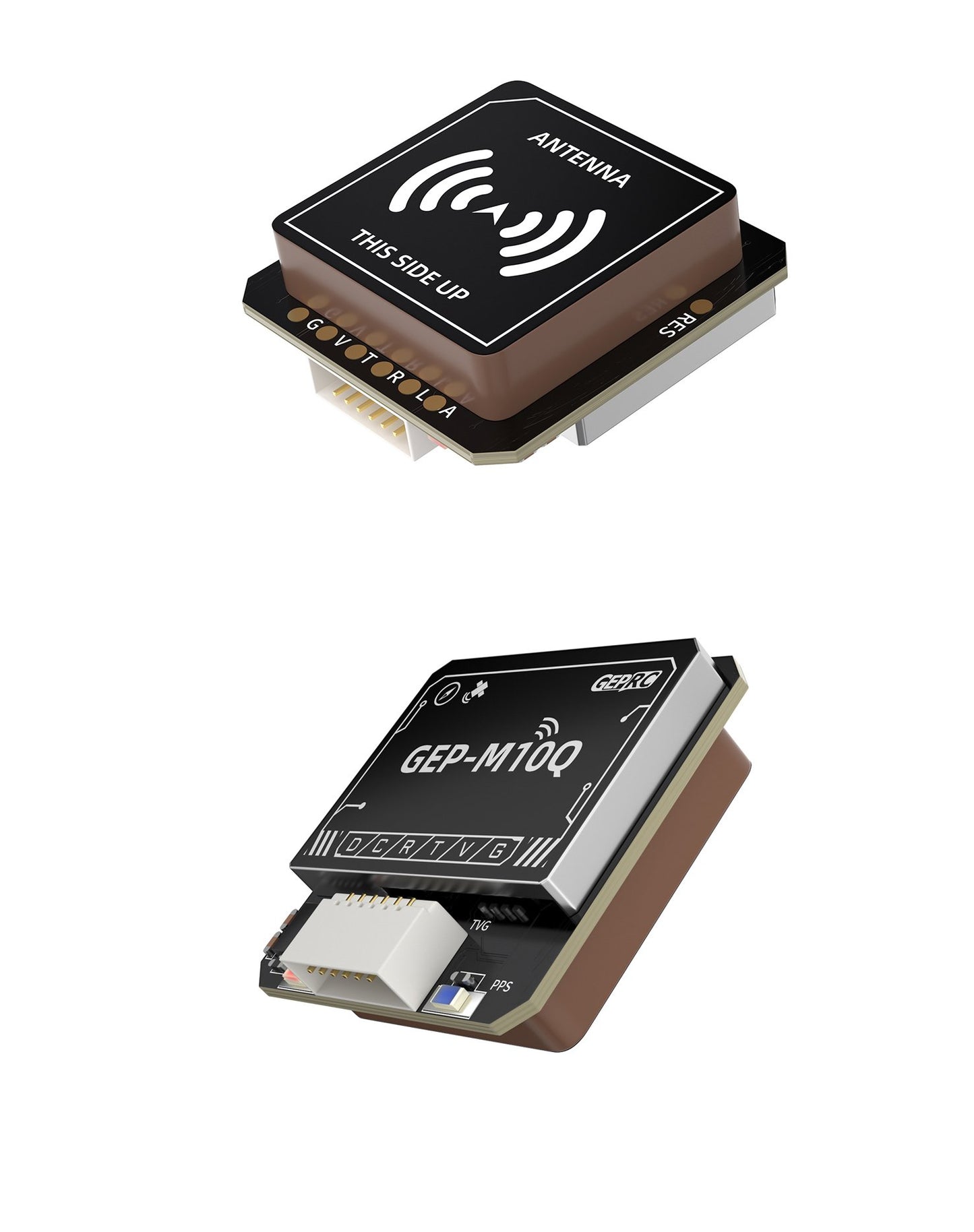

The GEP-M10 series GPS positioning module uses u-blox’s M10 chip solution and supports GPS+BDS+Galileo+QZSS+SBAS joint positioning, up to 32 satellites. There are 12*12mm and 18*18mm ceramic antenna versions, providing better receiving ability. Built-in Flash chip and Farad capacitor can save configuration parameters and quickly hot start.

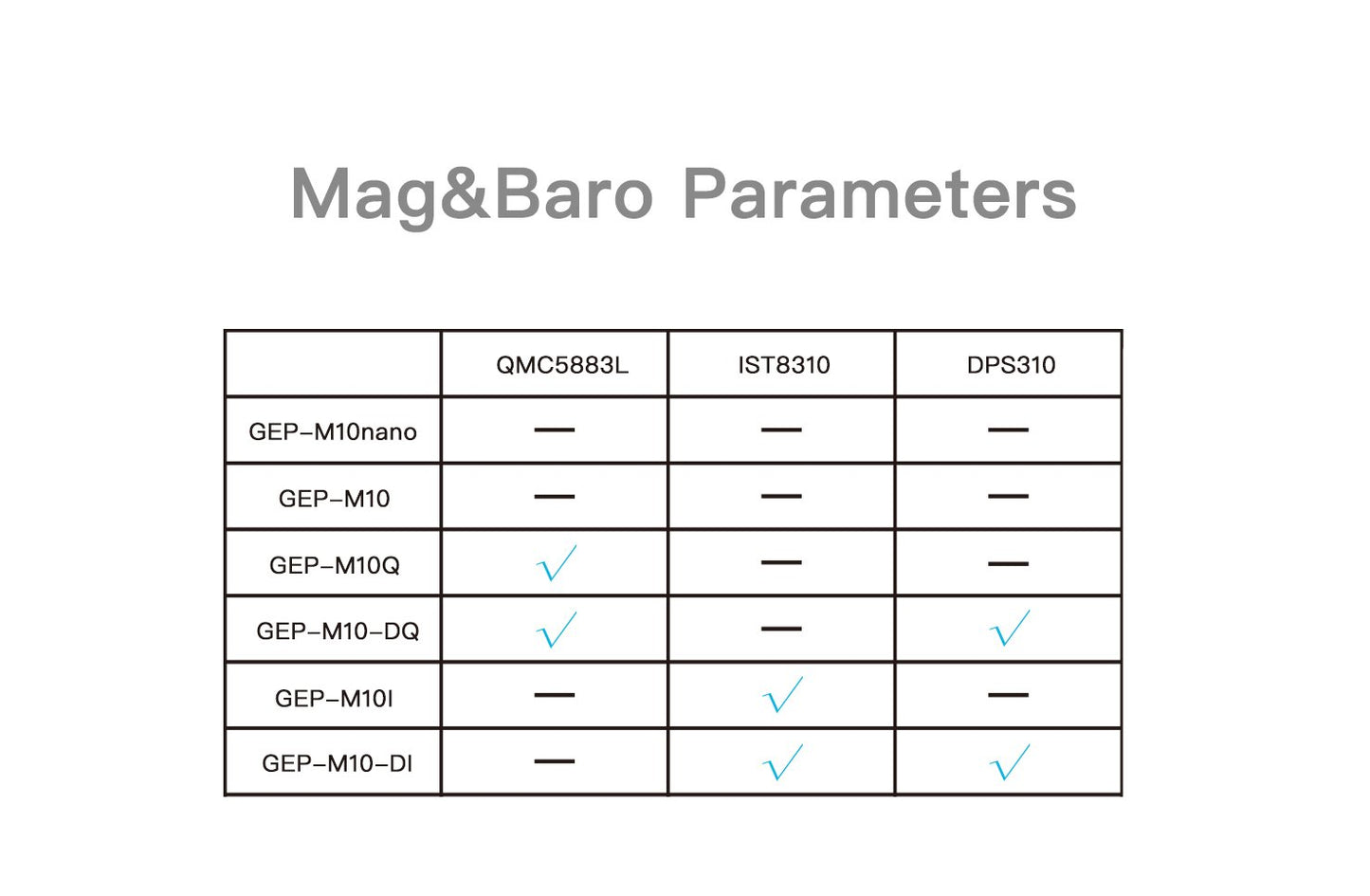

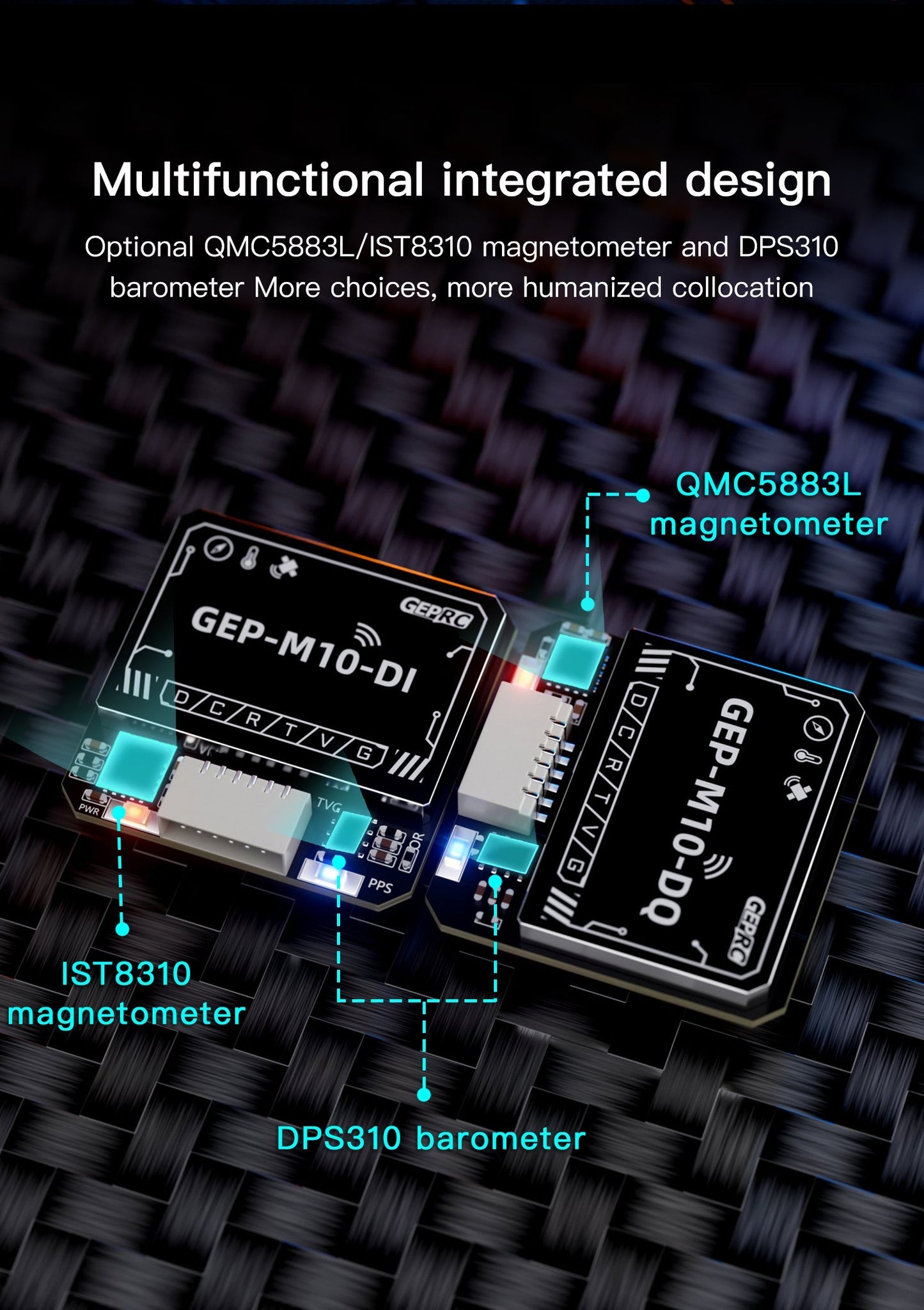

Optional QMC5883L/IST8310 magnetometer and DPS310 barometer. A variety of matching solutions provide accurate azimuth pointing and sensitive altitude change data. It can meet the needs of most FPV quadcopters , multi-rotor, fixed wing and other model products.
Note: Due to the current out-of-stock status of the DPS310 barometer, it will be replaced with the DPS368 barometer. There are no differences in performance or usage between the two barometers, and the old and new versions will be shipped randomly.

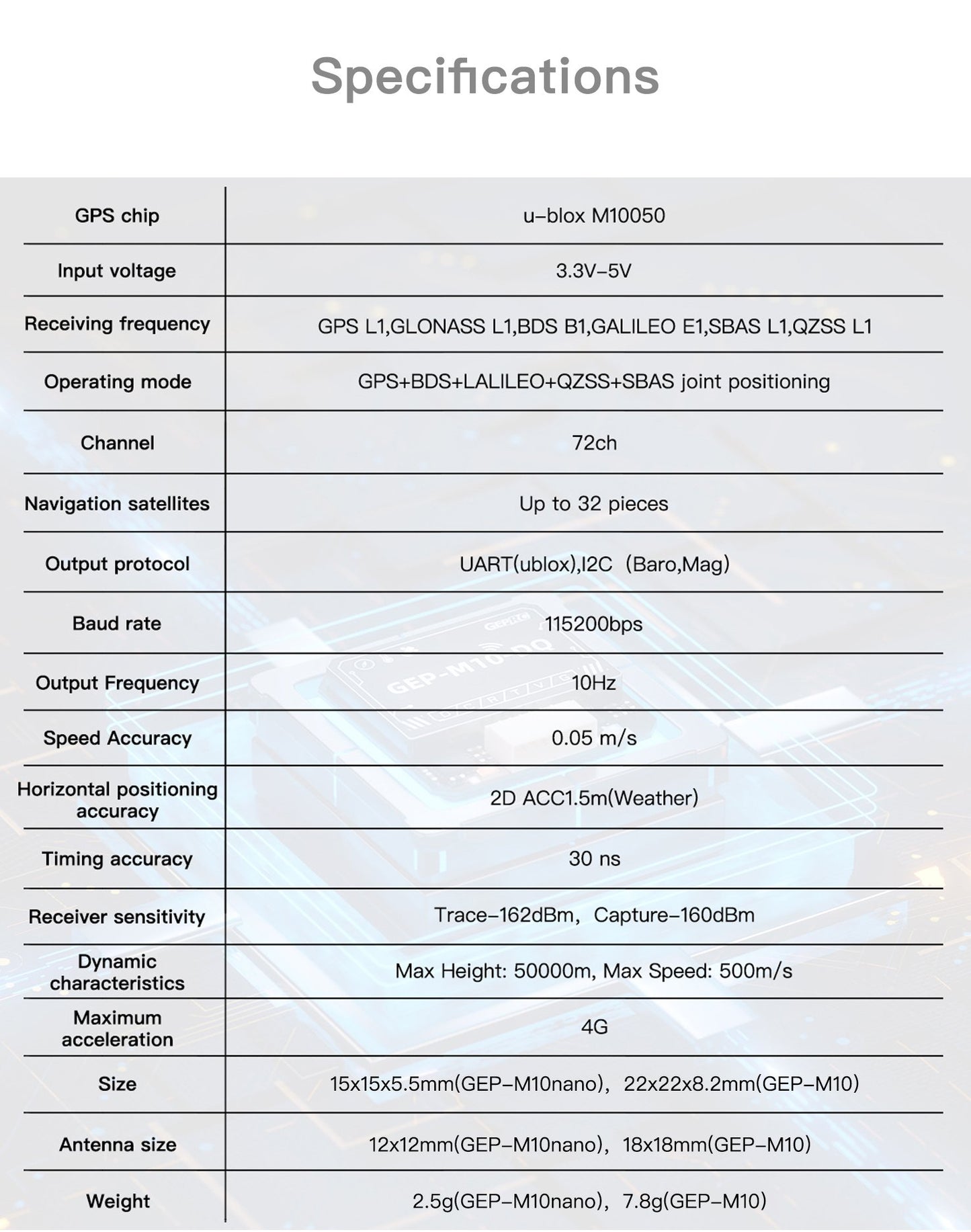

Specifications
- GPS chip：u-blox M10050
- Input voltage：3.3V-5V
- Receiving frequency：GPS L1,GLONASS L1,BDS B1,GALILEO E1,SBAS L1,QZSS L1
- Operating mode：GPS+BDS+LALILEO+QZSS+SBAS joint positioning
- Channel：72ch
- Navigation satellites：Up to 32 pieces

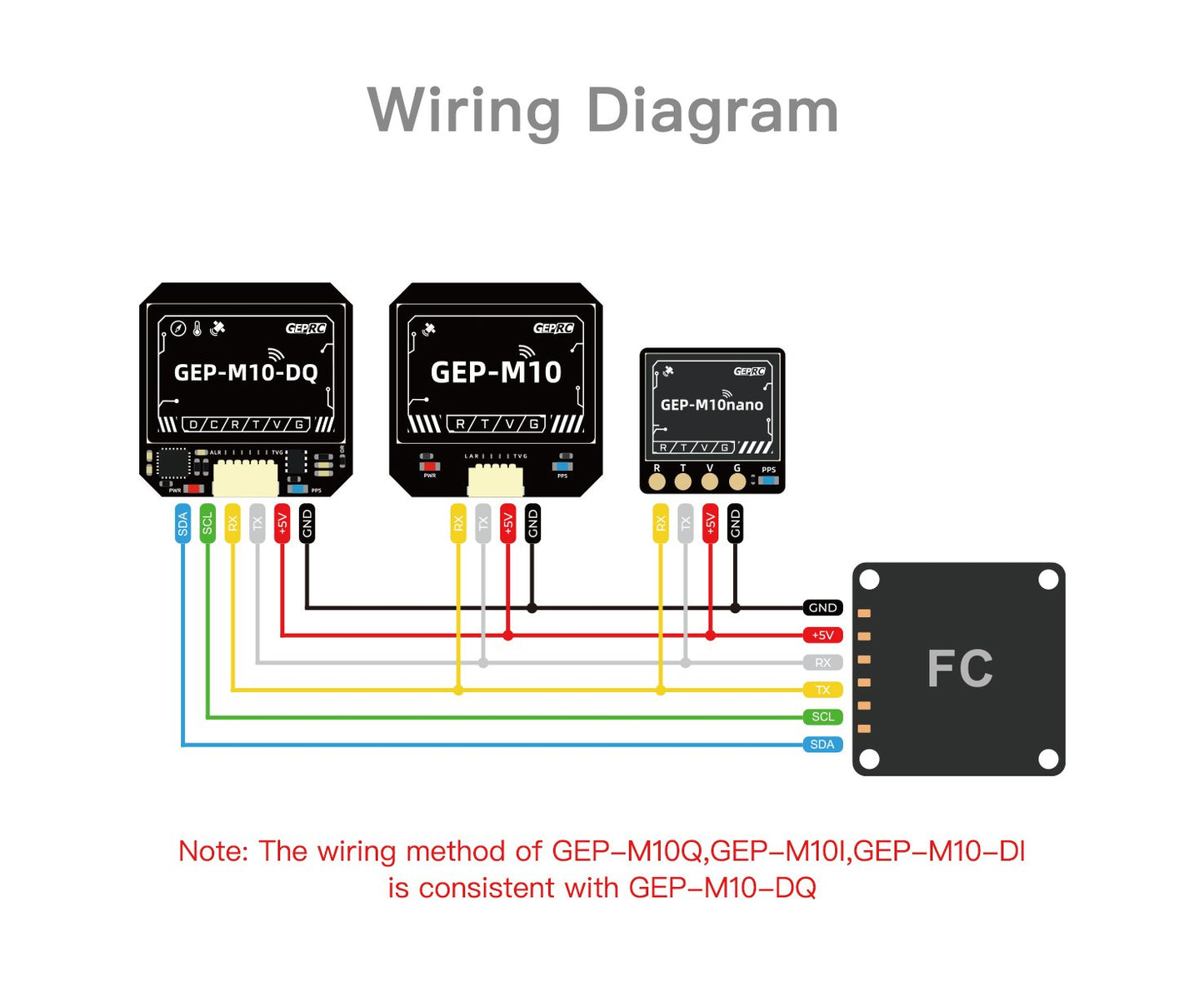

- Output protocol：UART(ublox),I2C（Baro,Mag）
- Baud rate：115200bps
- Output Frequency：10Hz
- Speed Accuracy：0.05 m/s
- Horizontal positioning accuracy：2D ACC1.5m(Weather)
- Timing accuracy：30 ns
- Receiver sensitivity：Trace-162dBm，Capture-160dBm
- Dynamic characteristics：Max Height: 50000m, Max Speed: 500m/s
- Maximum acceleration：4G

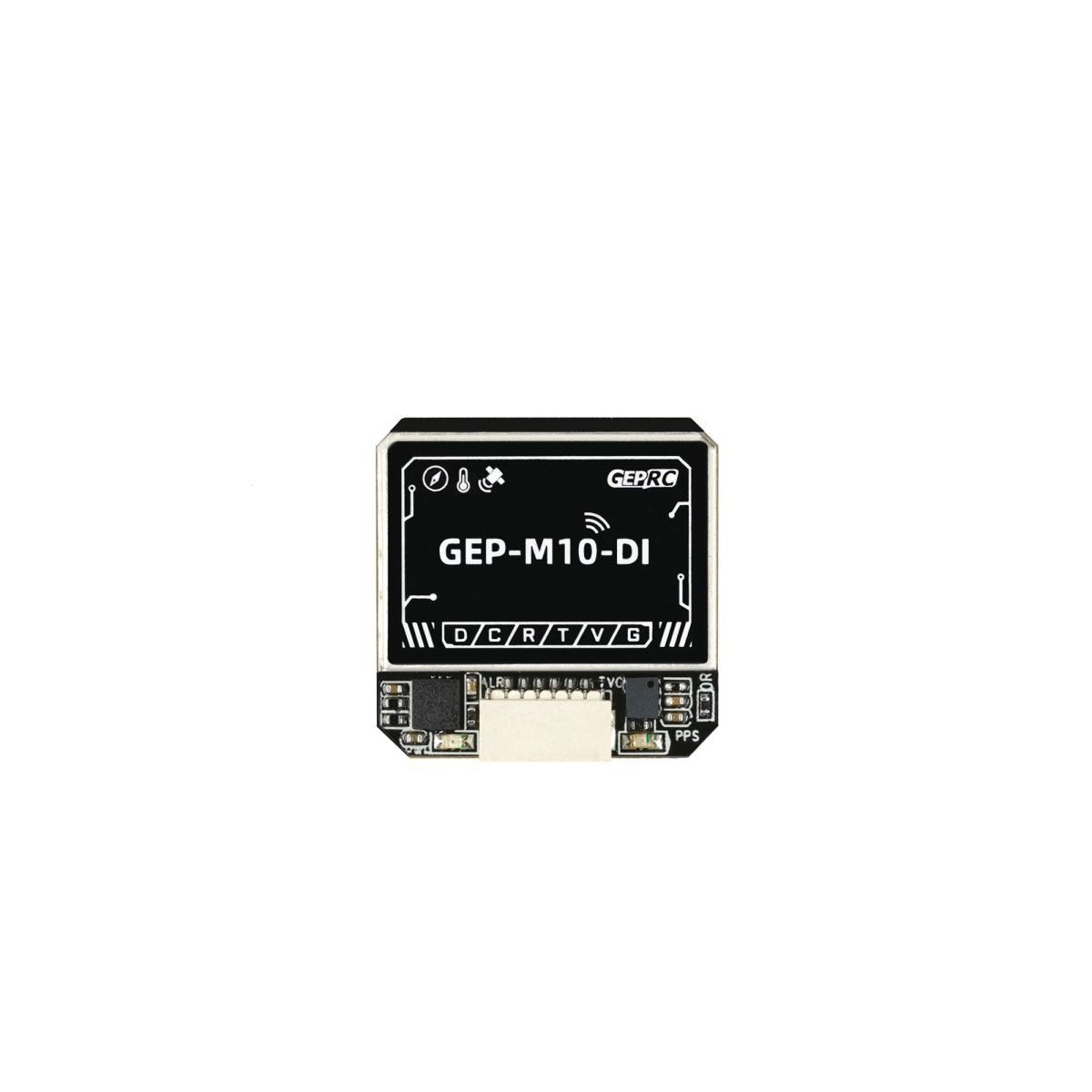

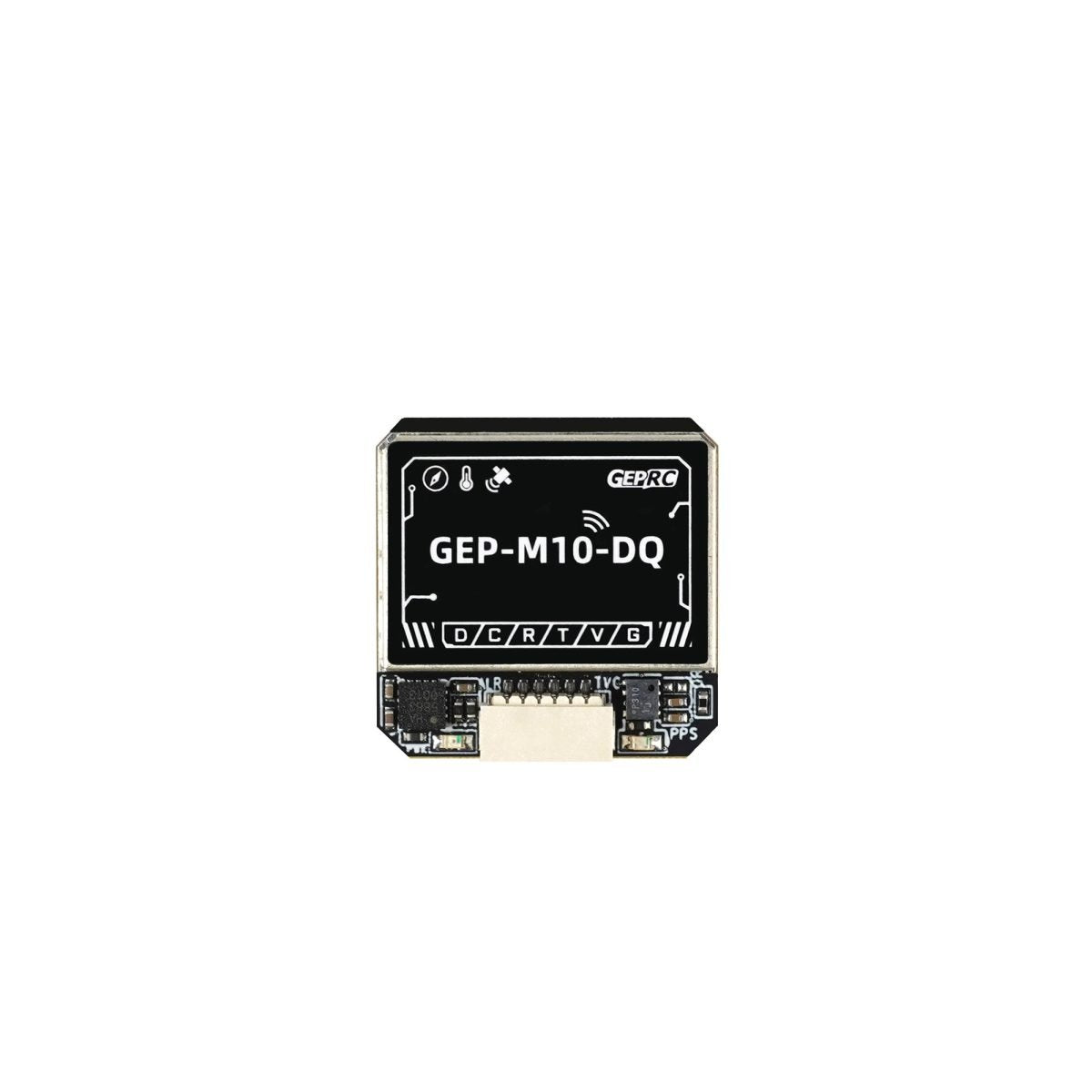

- Mag：QMC5883L,IST8310
- Baro：DPS310

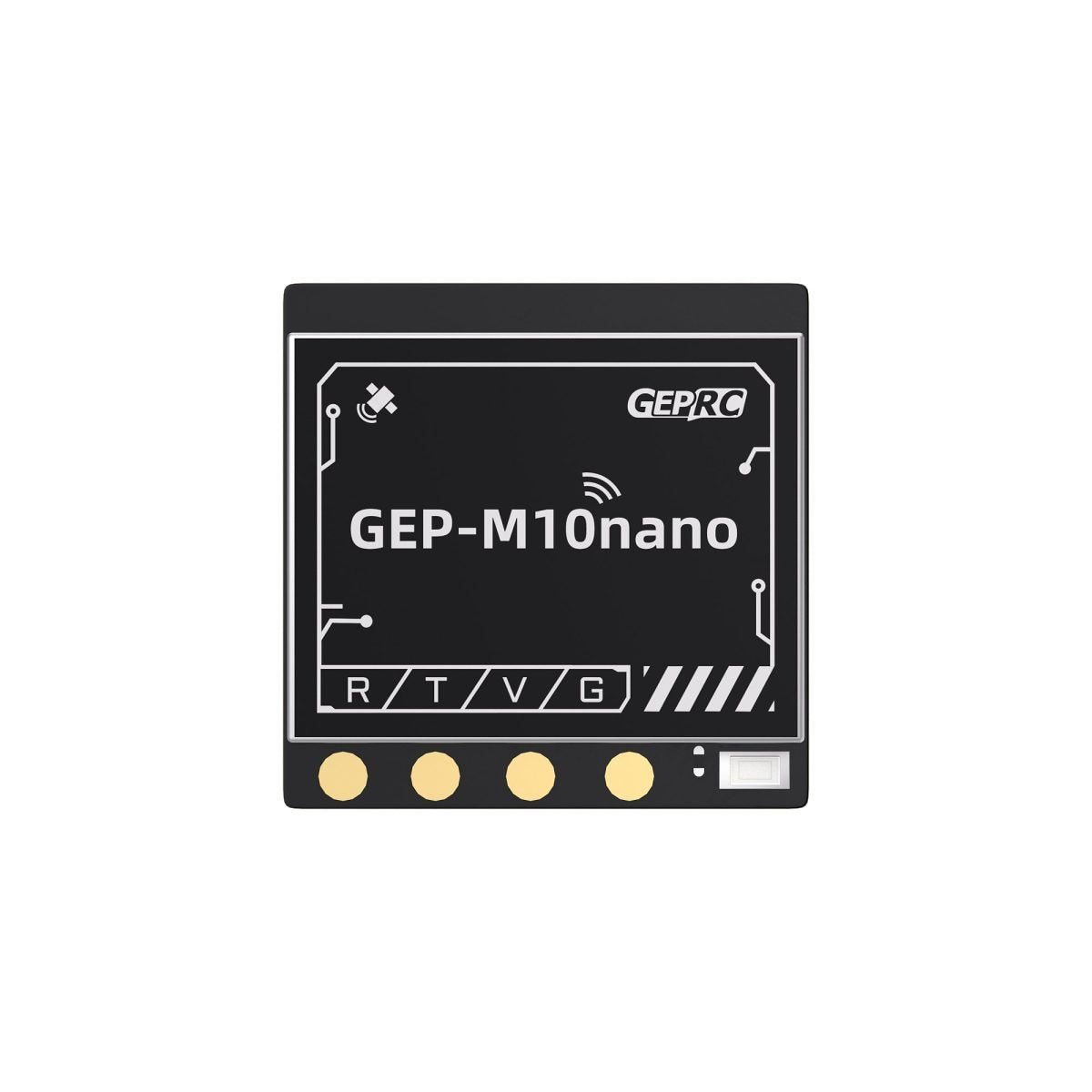

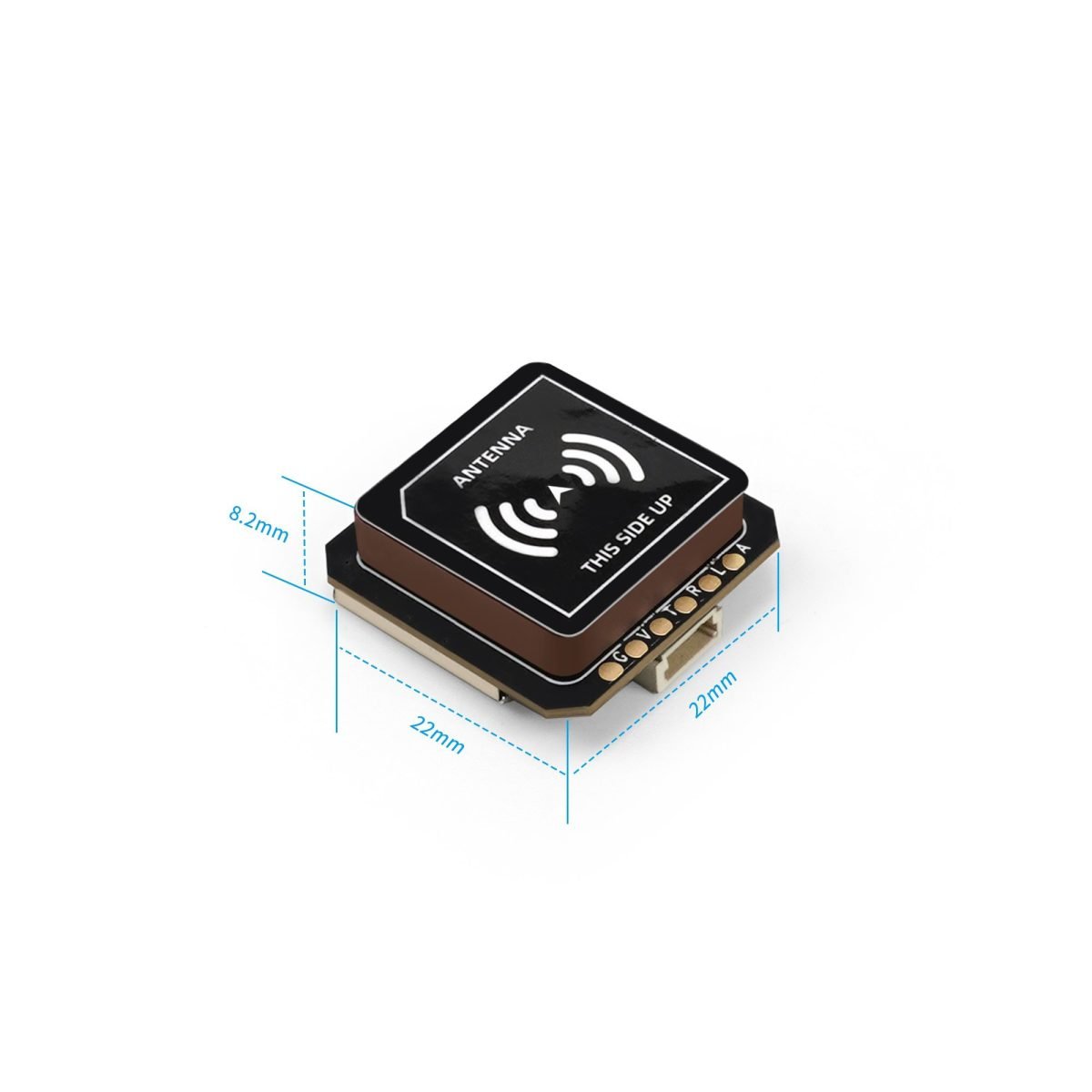

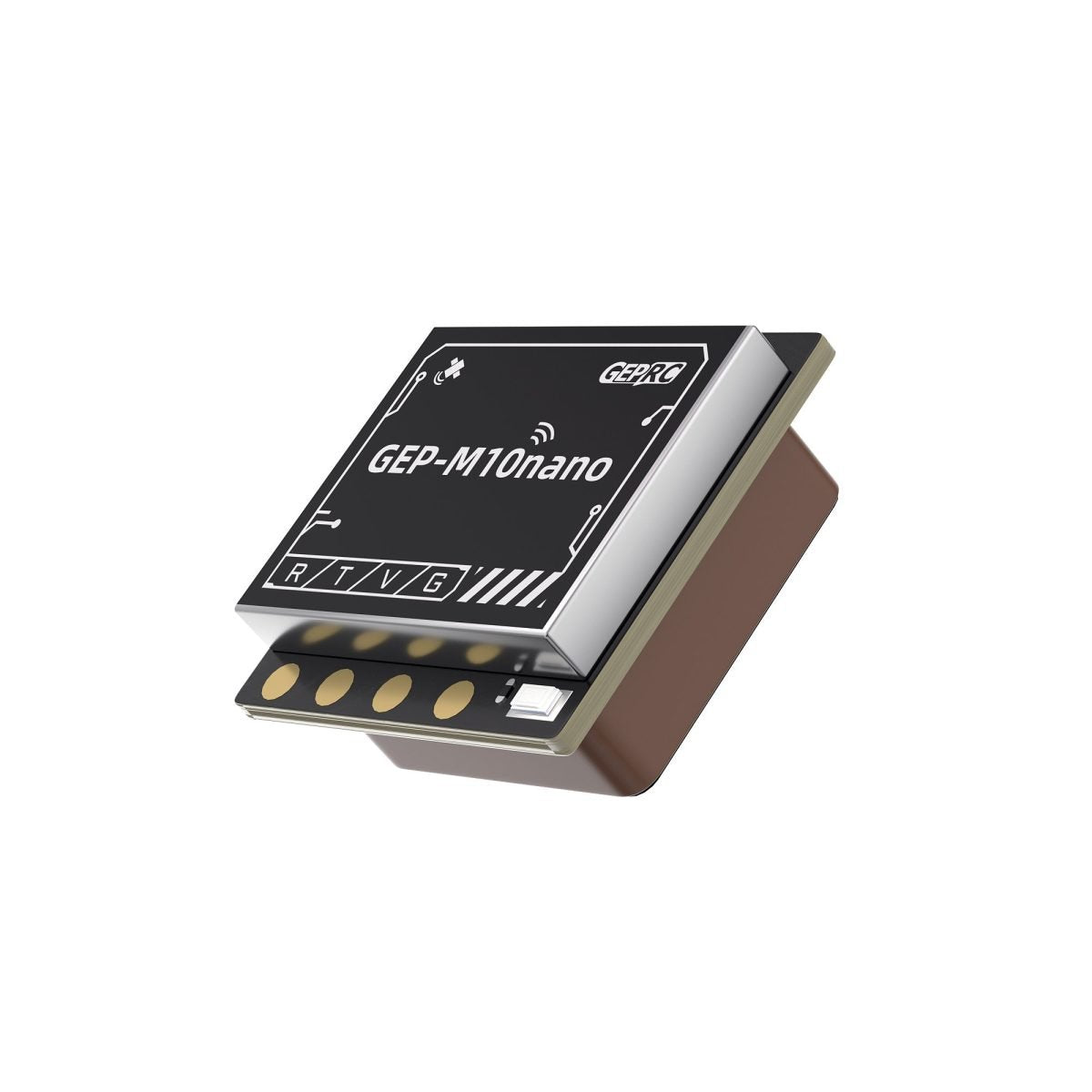

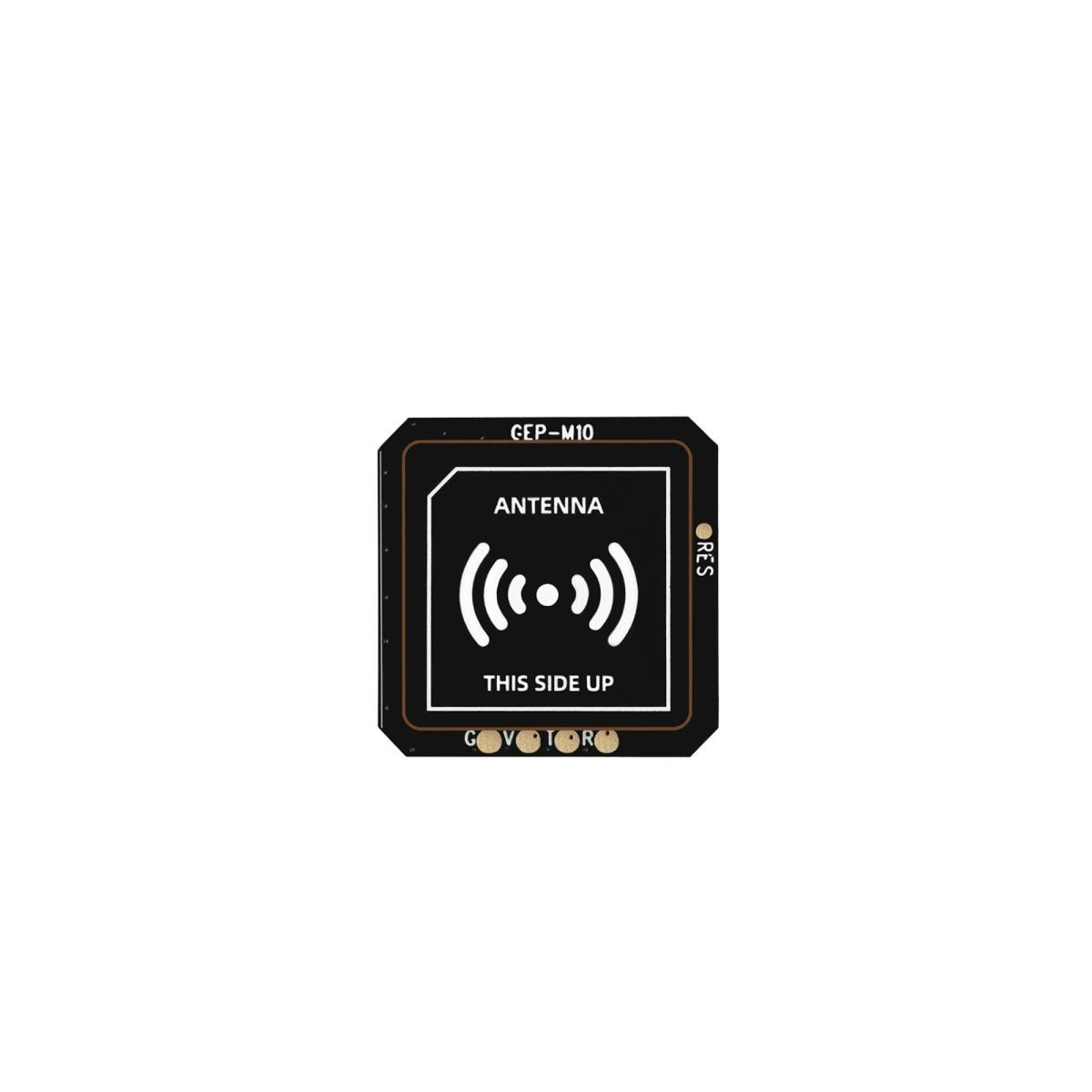

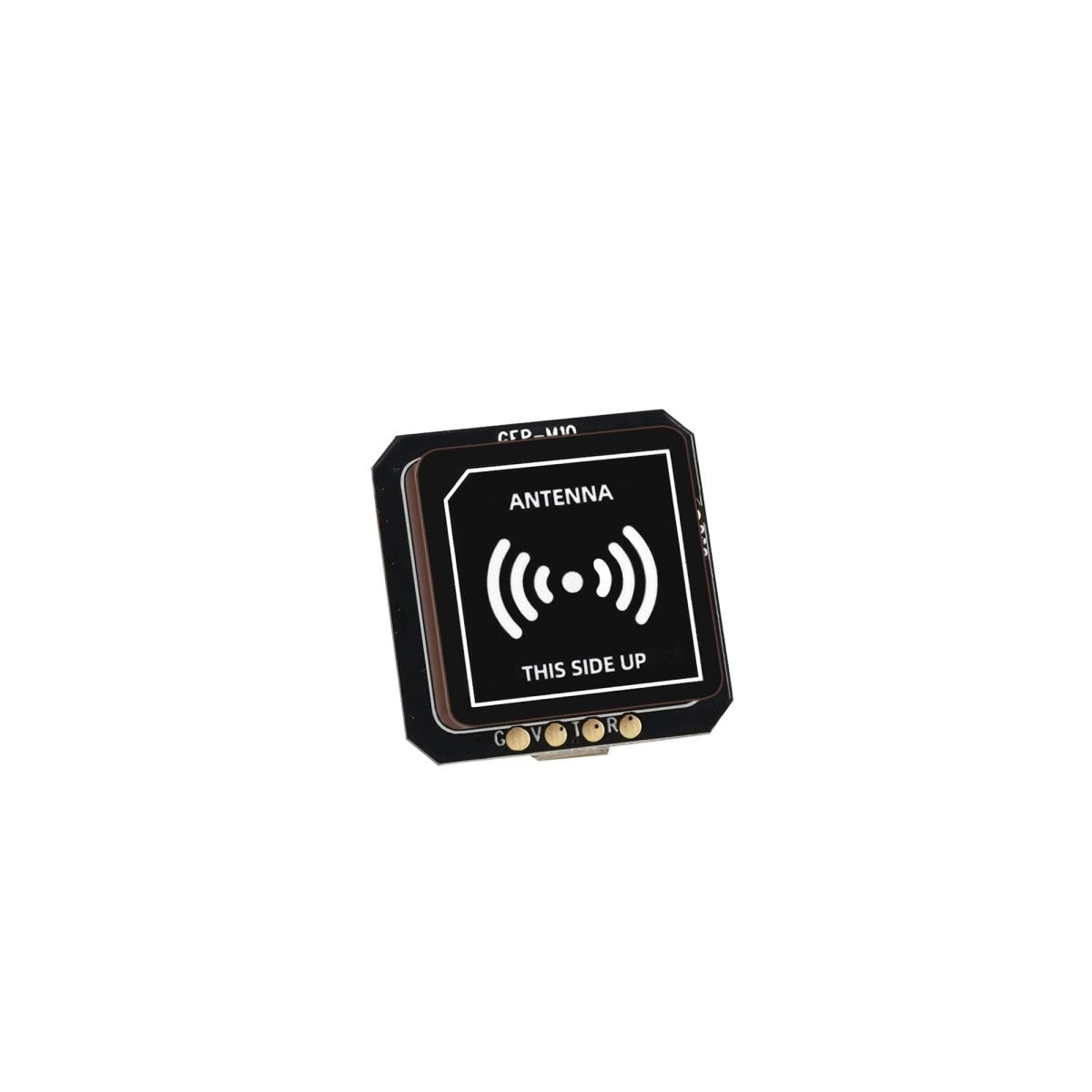

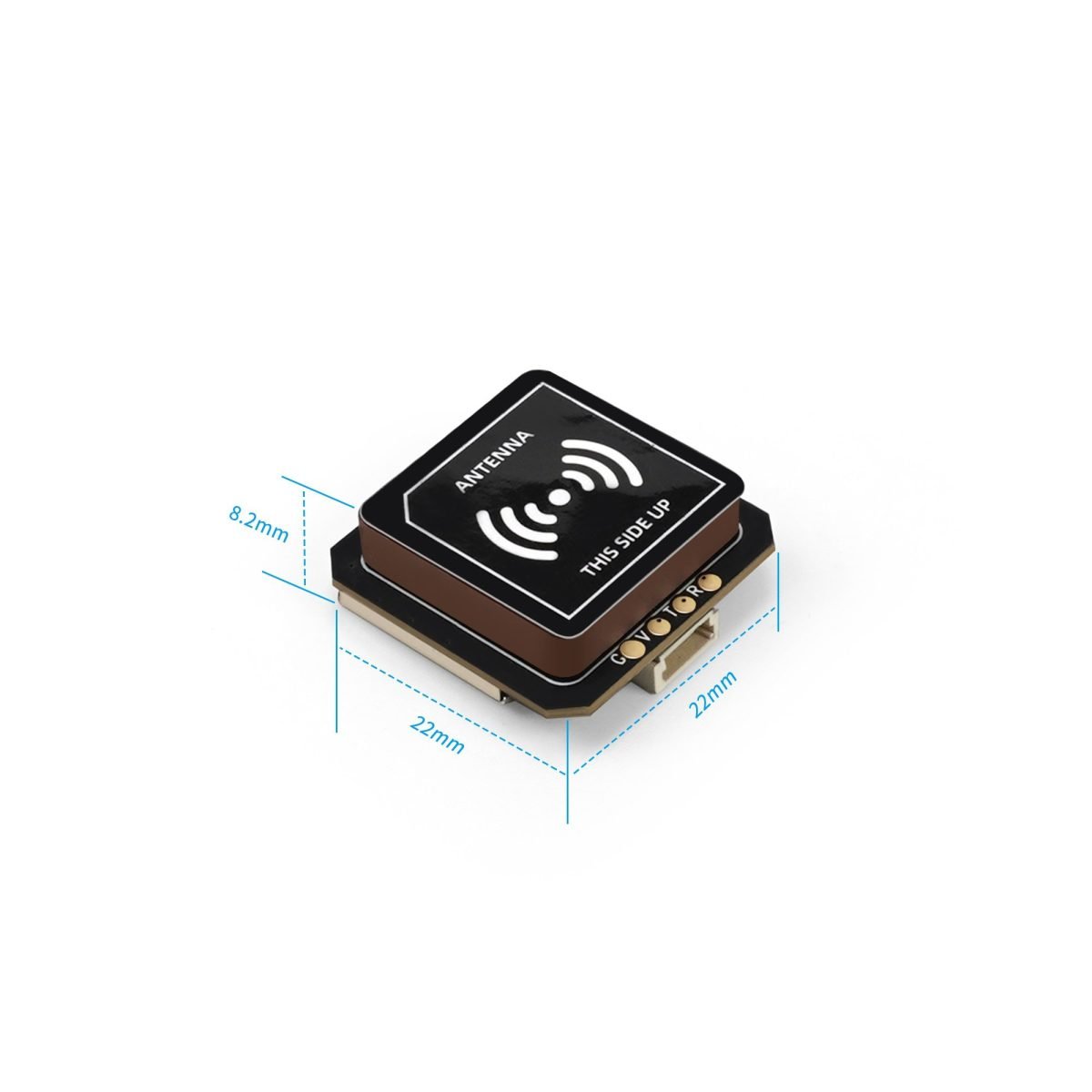

- Size：15x15x7.5mm(GEP-M10nano),22x22x8.2mm(GEP-M10)

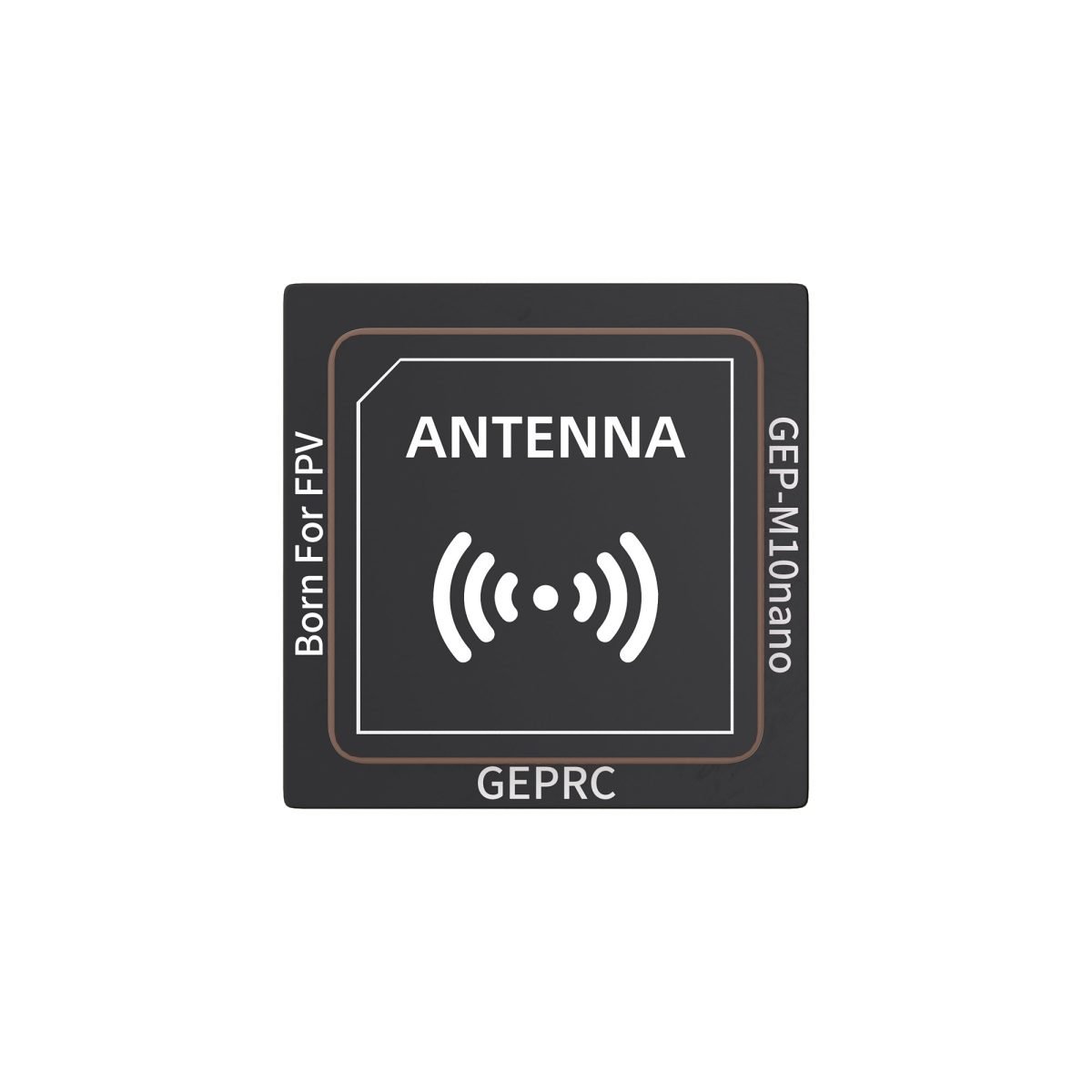

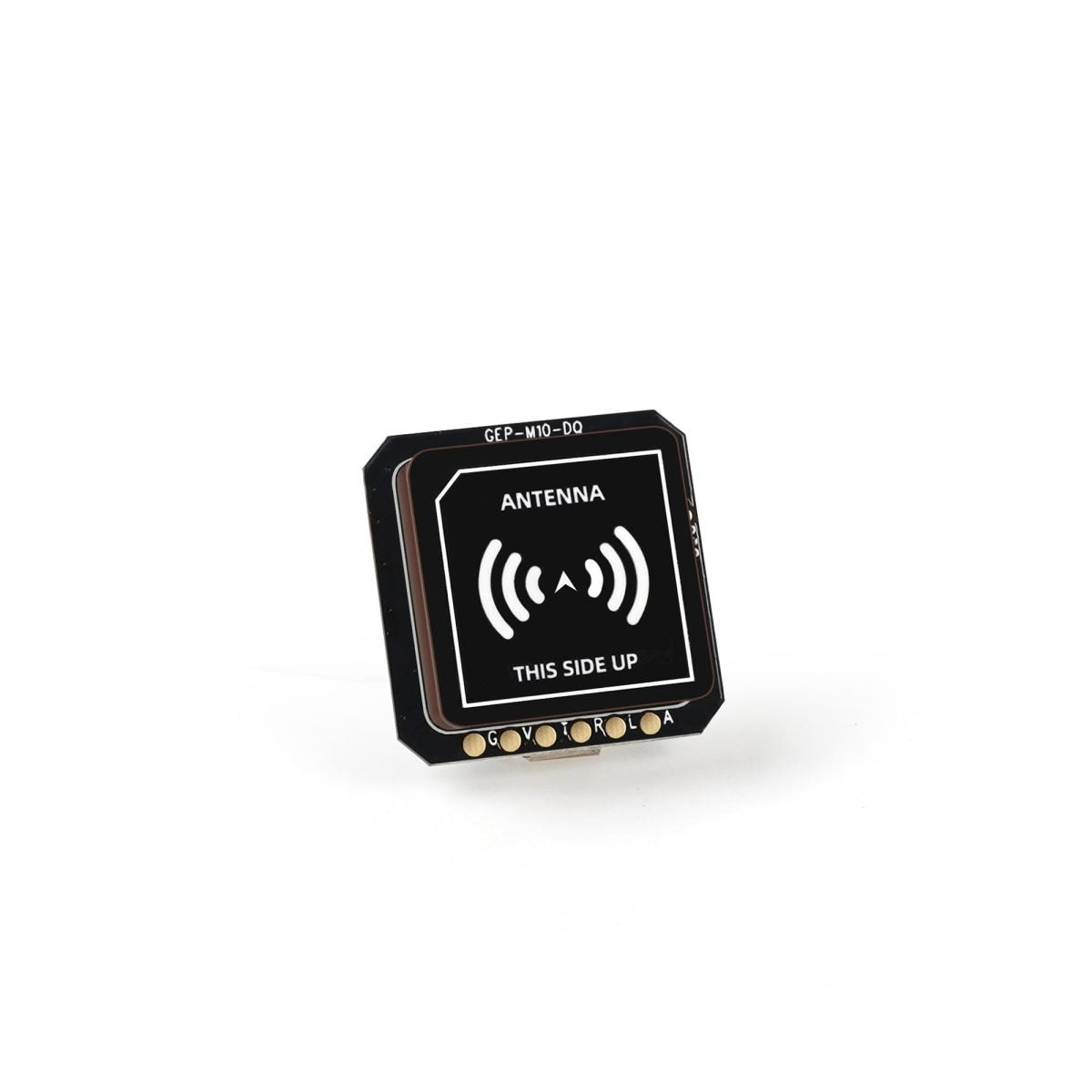

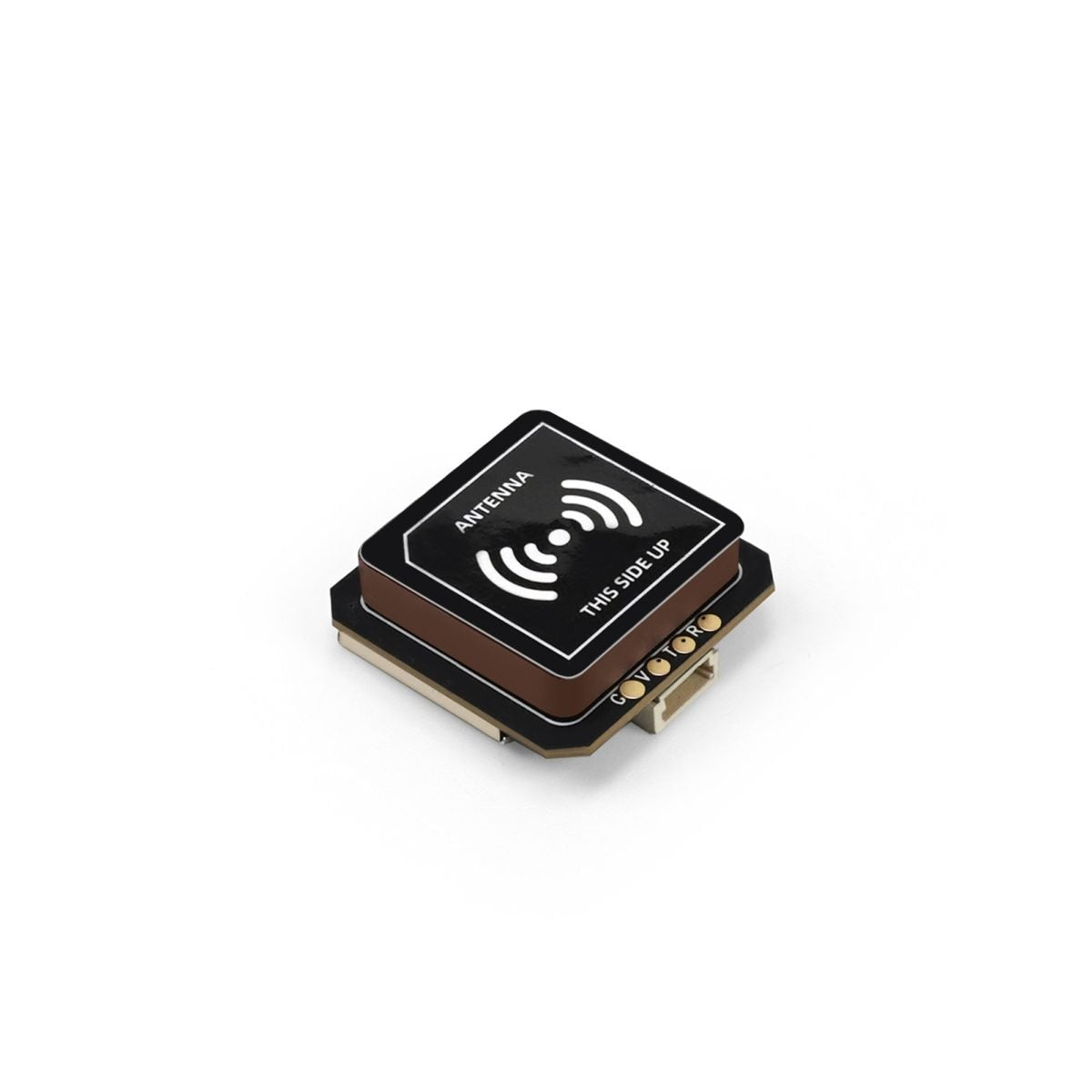

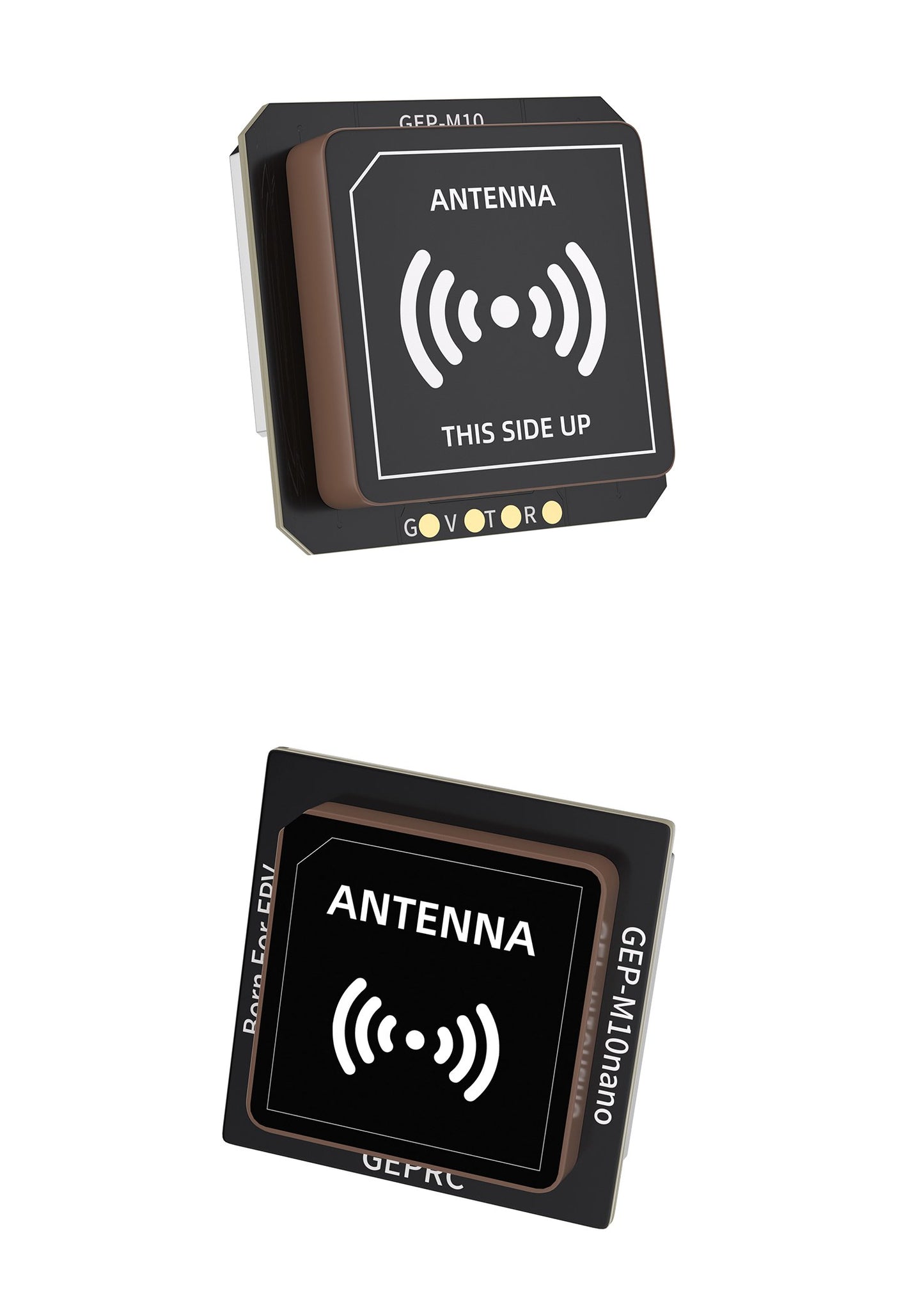

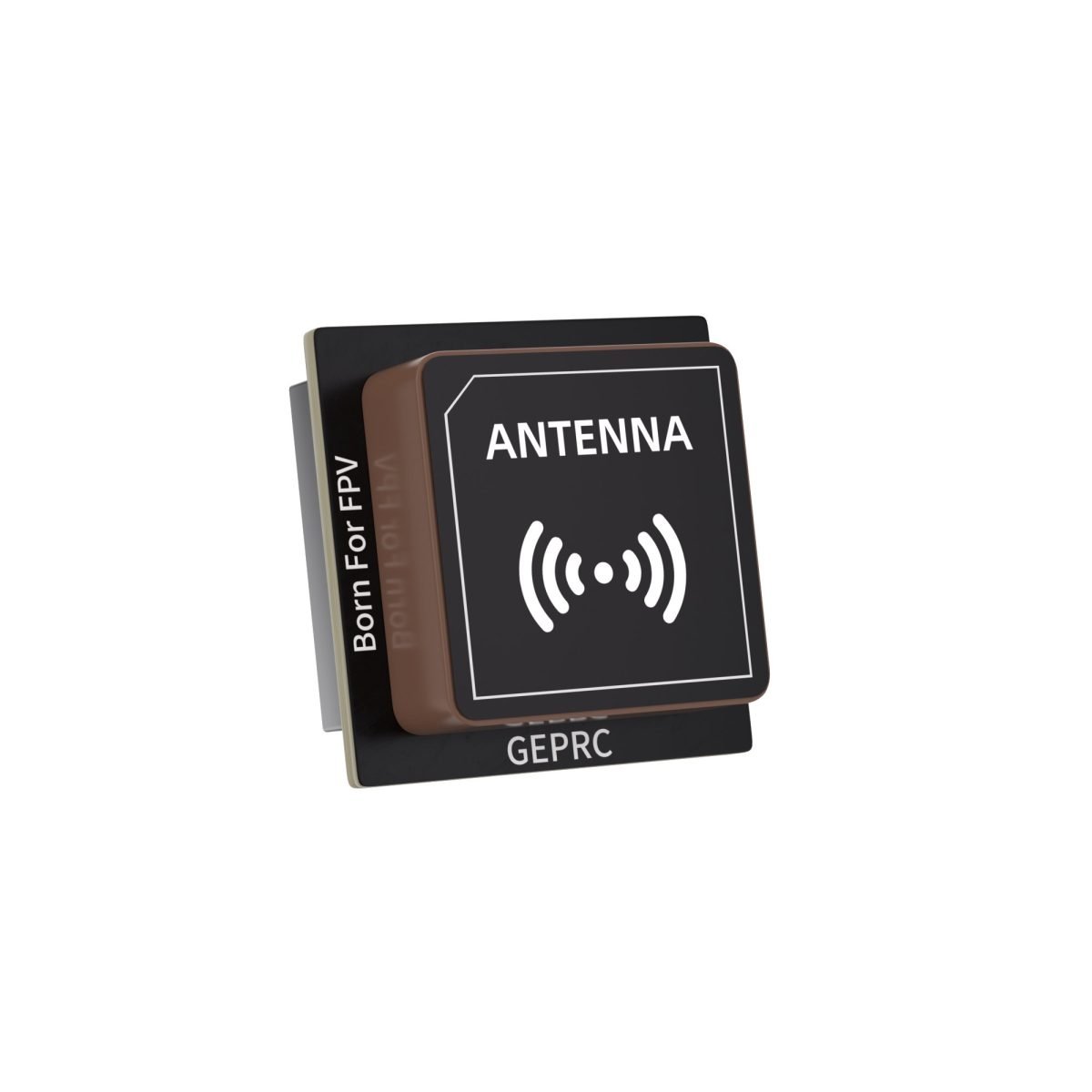

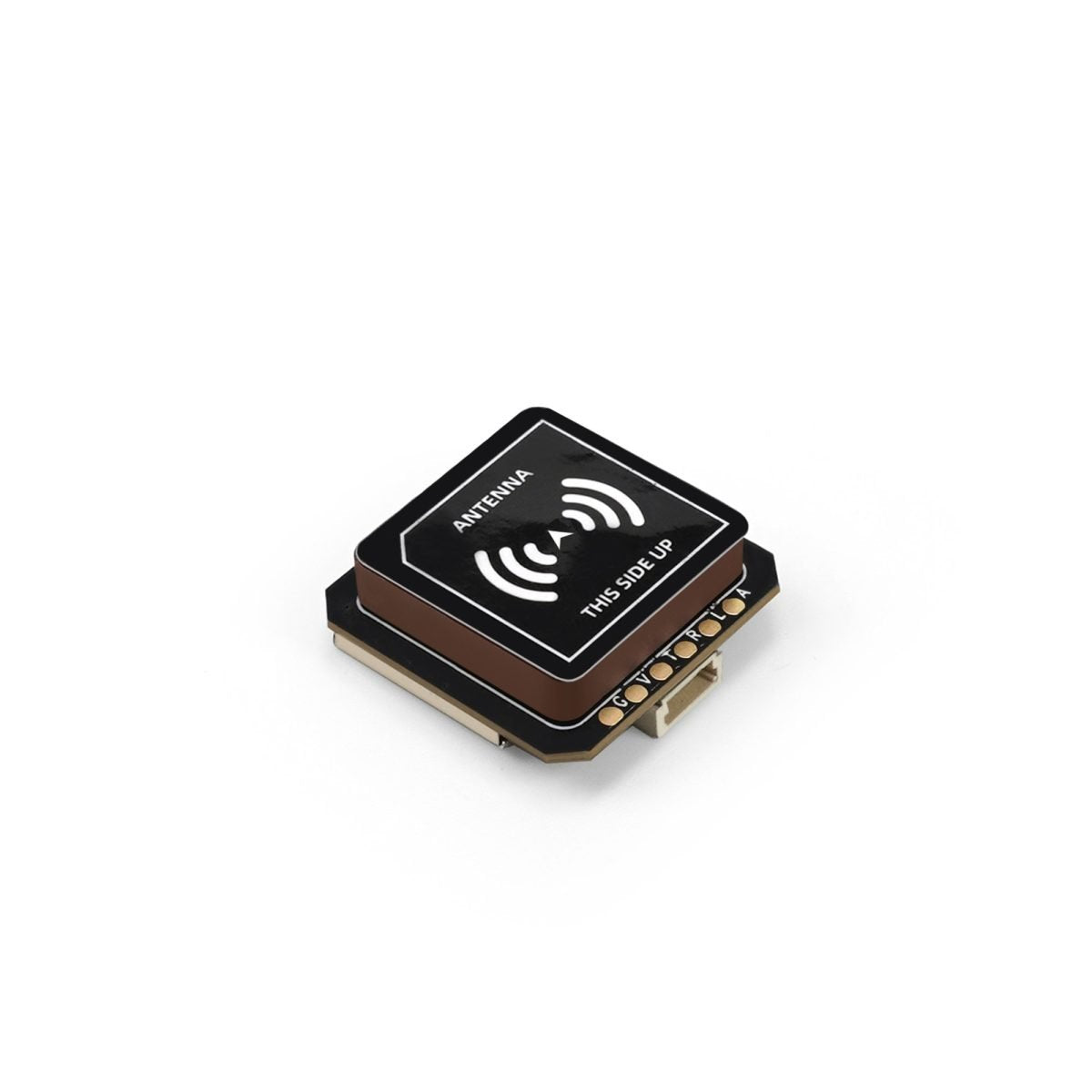

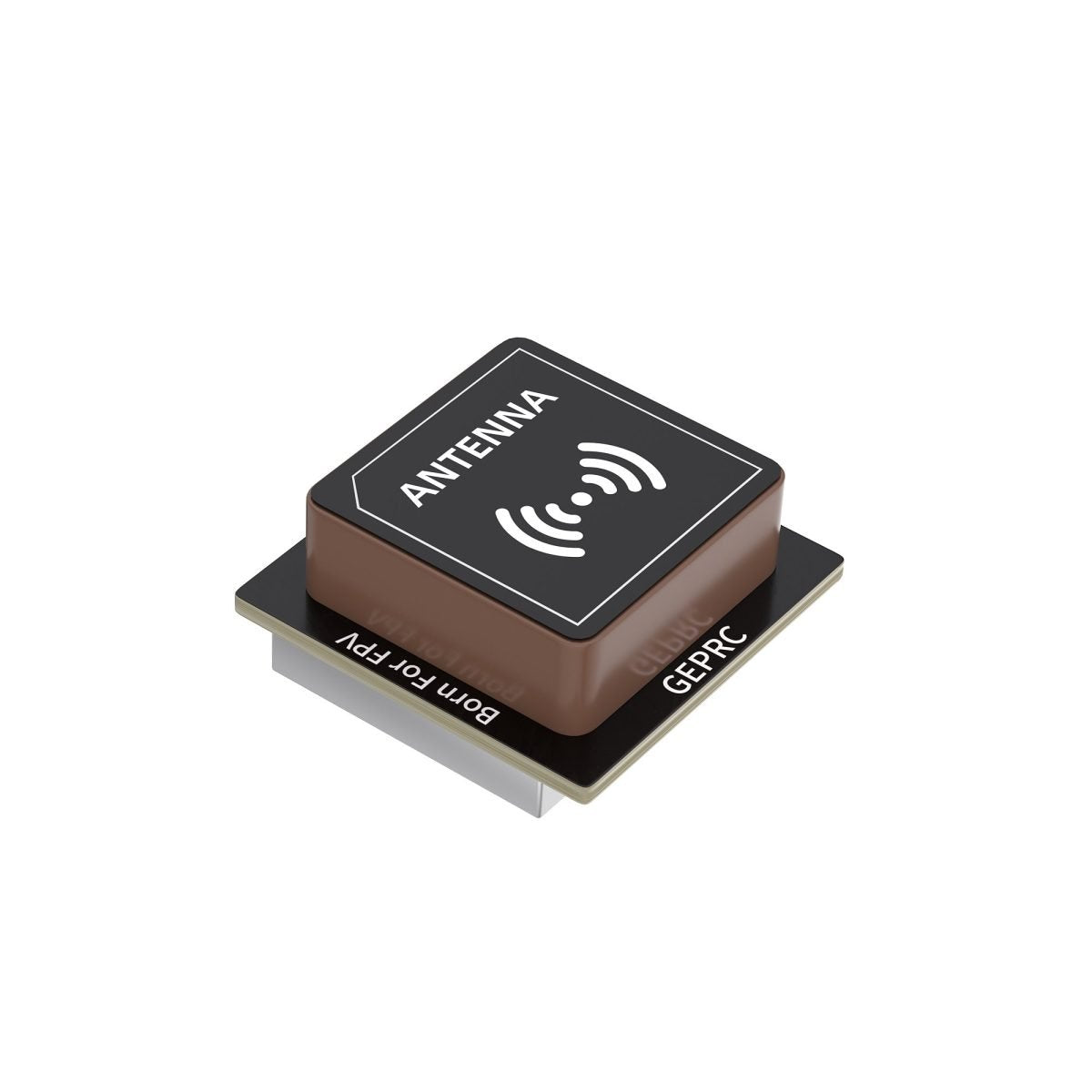

- Antenna size：12x12mm(GEP-M10nano),18x18mm(GEP-M10)

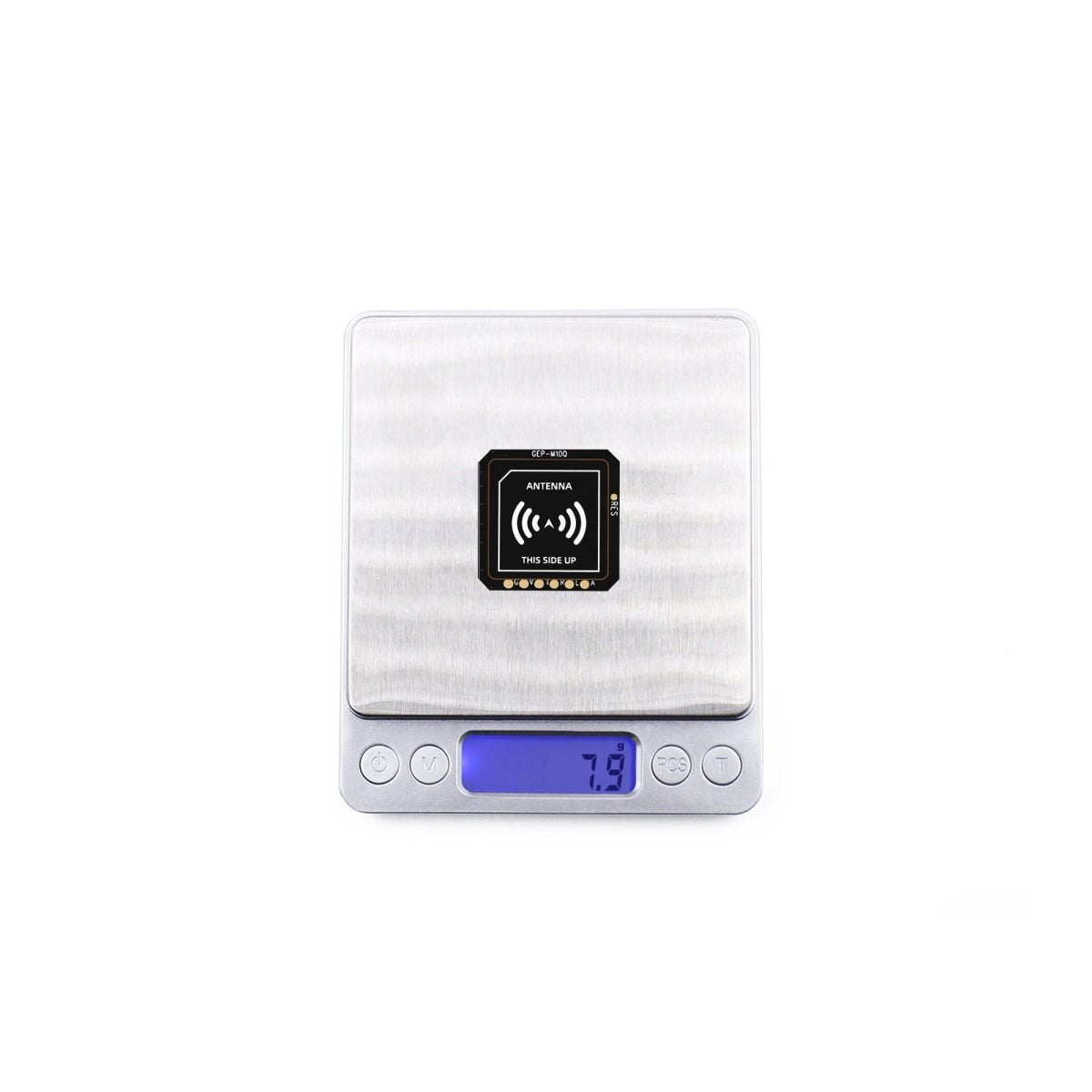

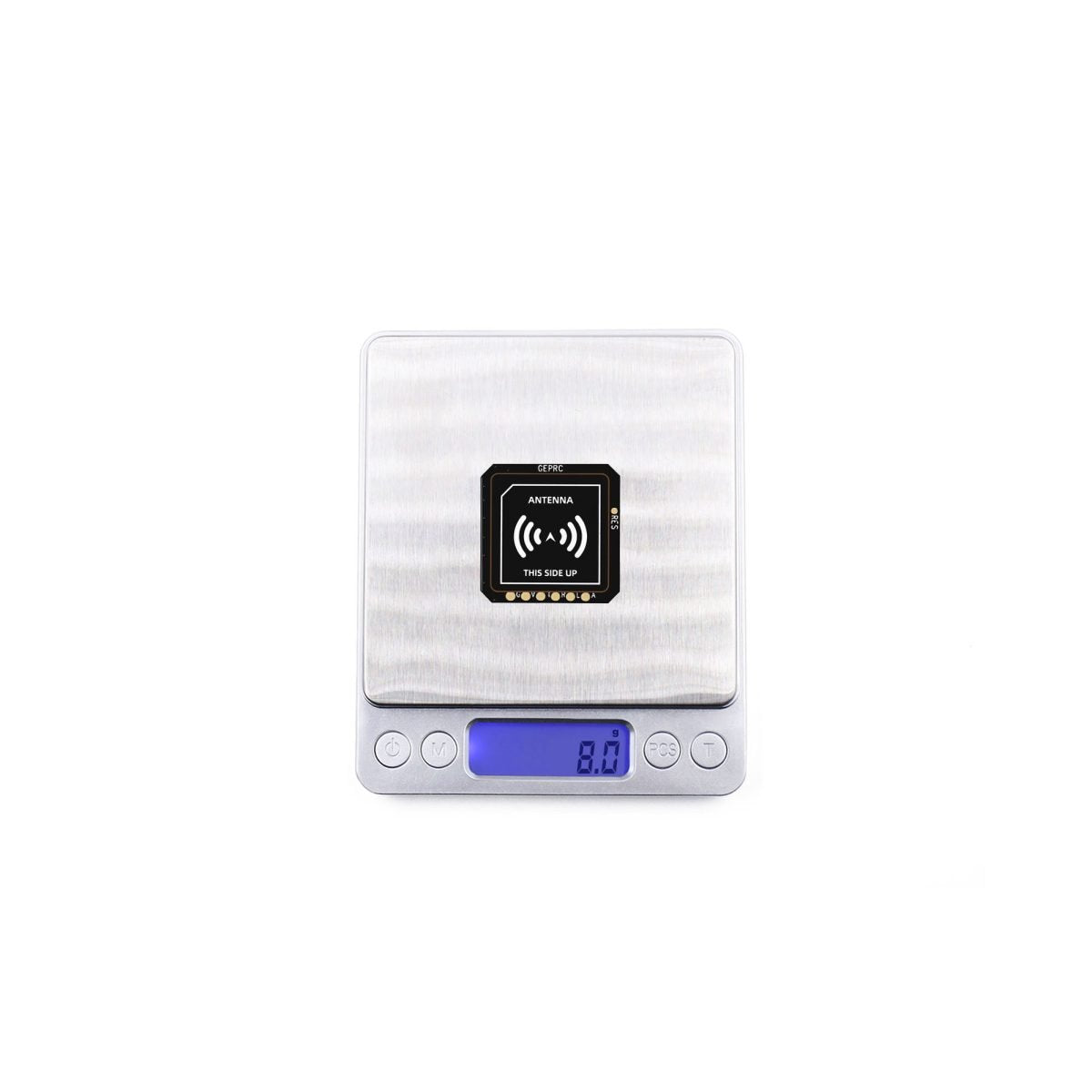

- Weight：4.1g(GEP-M10nano),7.8g(GEP-M10)
Features
- u-blox M10050 chip
- GPS+BDS+Galileo+QZSS+SBAS joint positioning
- Fast positioning speed,Up to 32 satellites
- Stable connection quality
- 12x12mm or 18x18mm antenna size, better signal receiving performance
- Built-in Flash chip and Farad capacitor
- Onboard indicator light, easy to use
- Optional integrated magnetometer + barometer, more collocation scheme
Includes
1 x GPS module
1 x terminal wire
1 x GPS module instruction manual
1 x GEPRC sticker
1 x heat shrink tubing
