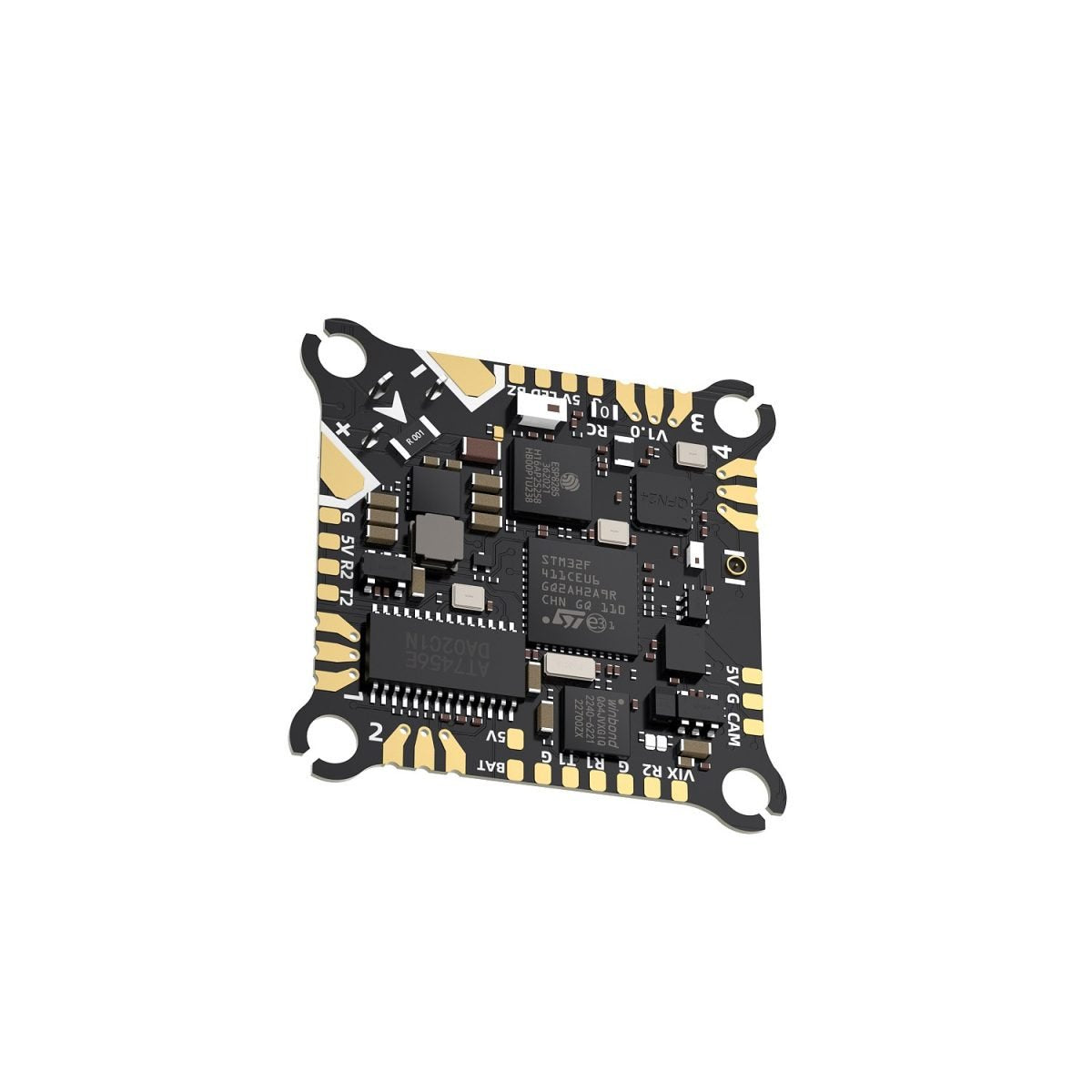

GEP-TAKER F411-12A-E 1~2S AIO

GEP-TAKER F411-12A-E 1~2S AIO

Regular price €69,00 EUR
Regular price Sale price €69,00 EUR
Sale Sold out
Taxes included.

**Tax & Customs Notice (EU Customers)**

For orders **under €150**, the displayed prices **include all VAT and taxes**. You won’t need to pay anything extra upon delivery.

For orders **over €150**, import VAT and customs duties are **not included** in the price and must be paid by the recipient upon delivery, as per EU regulations.

If you have any questions about taxes or shipping, feel free to contact us — we're happy to help!

Summary

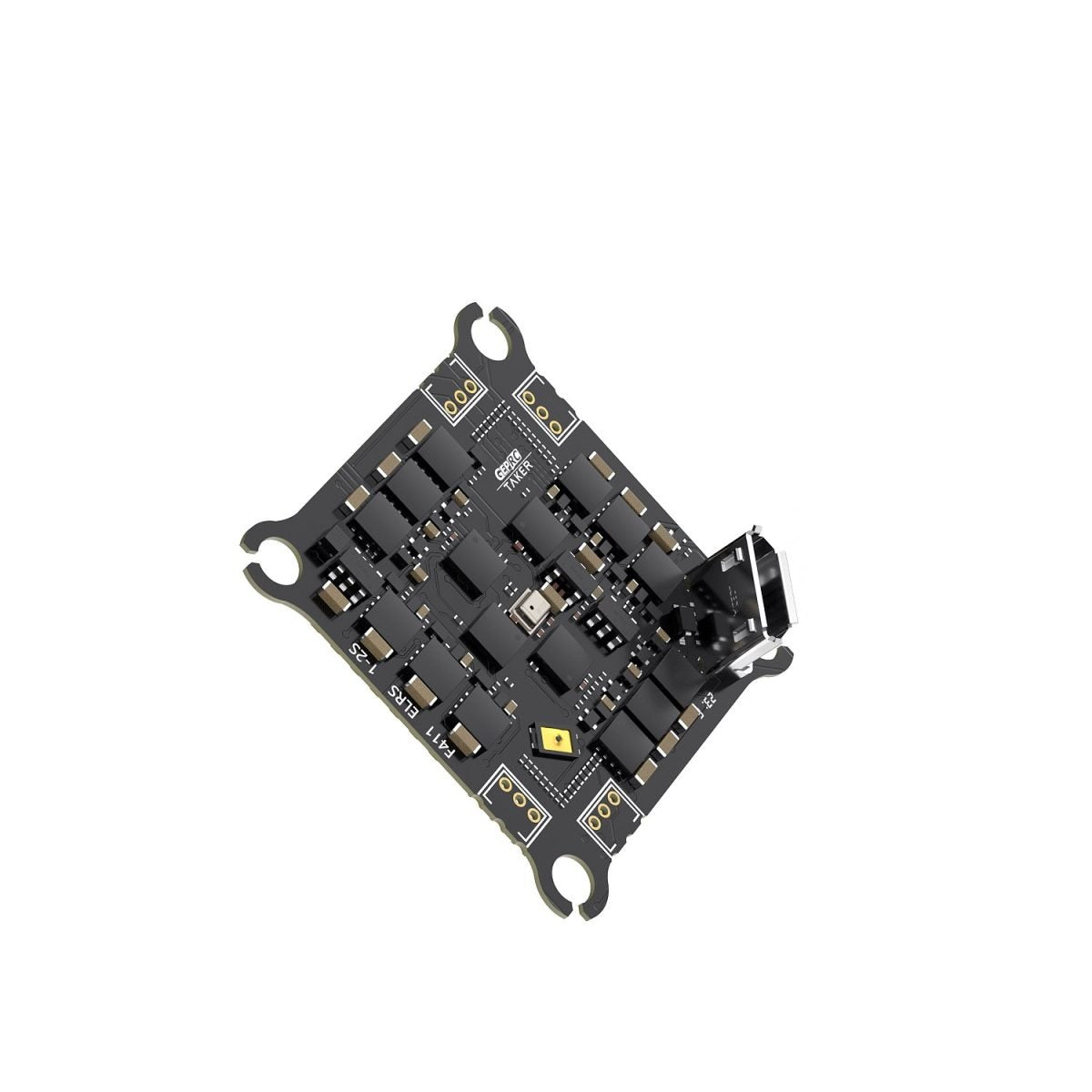

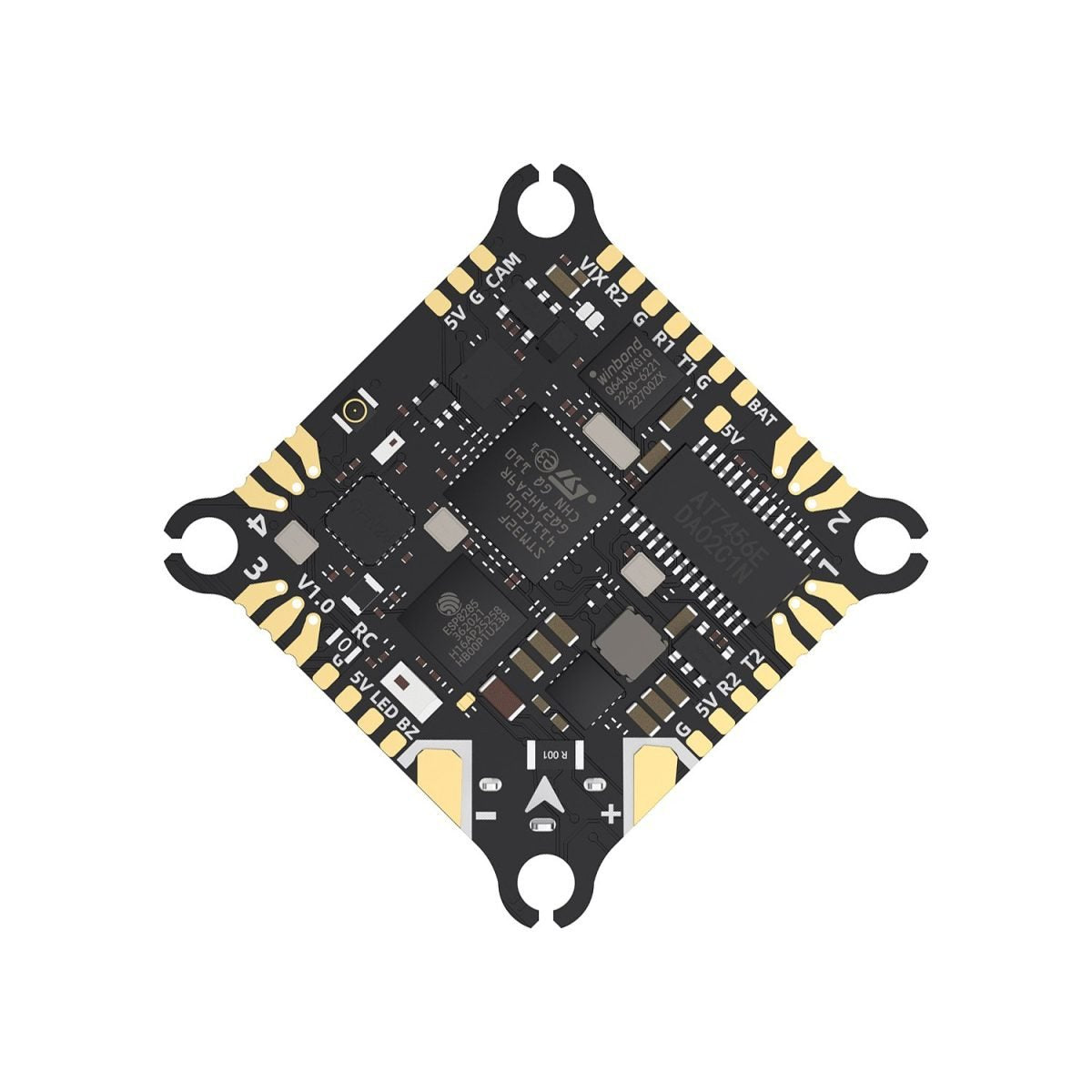

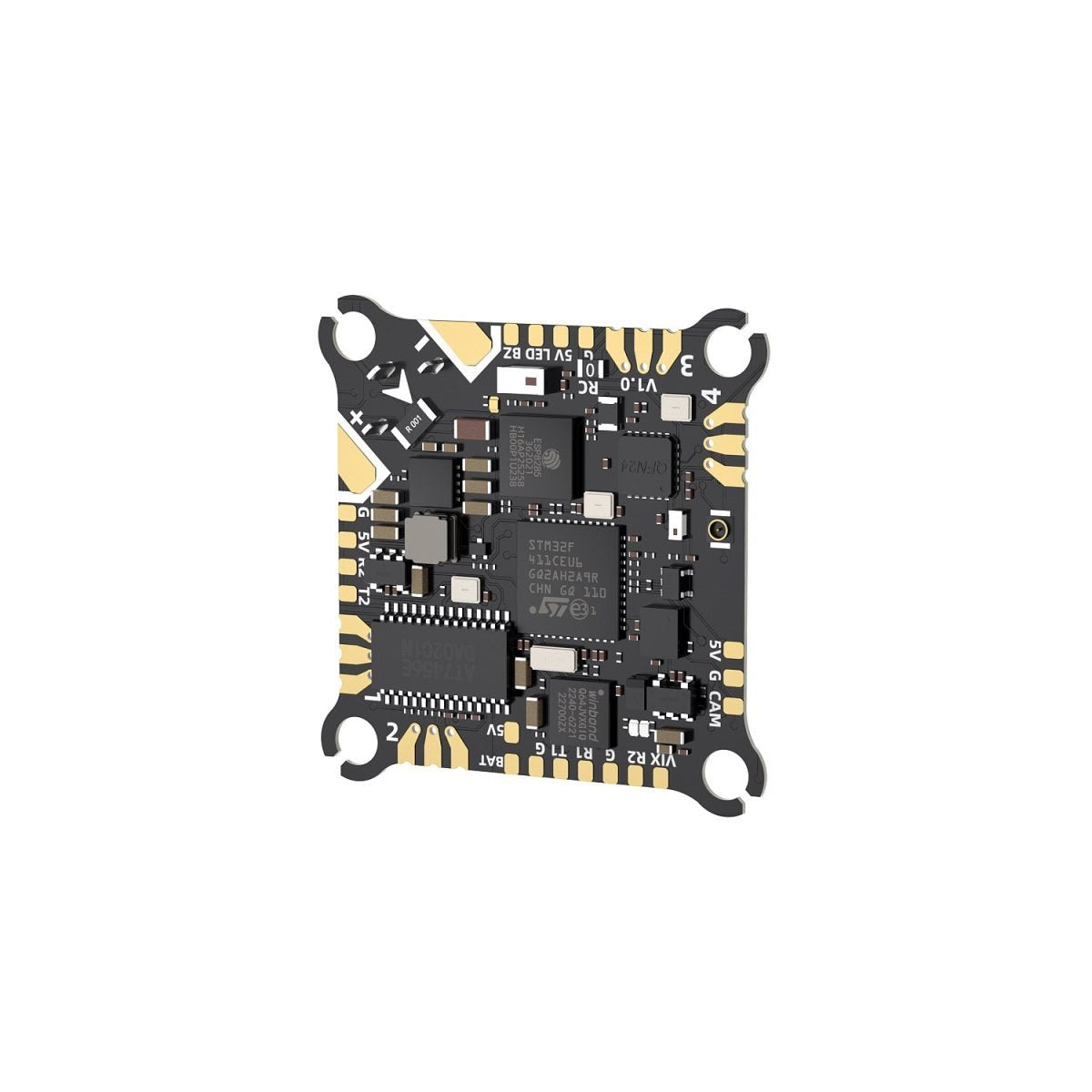

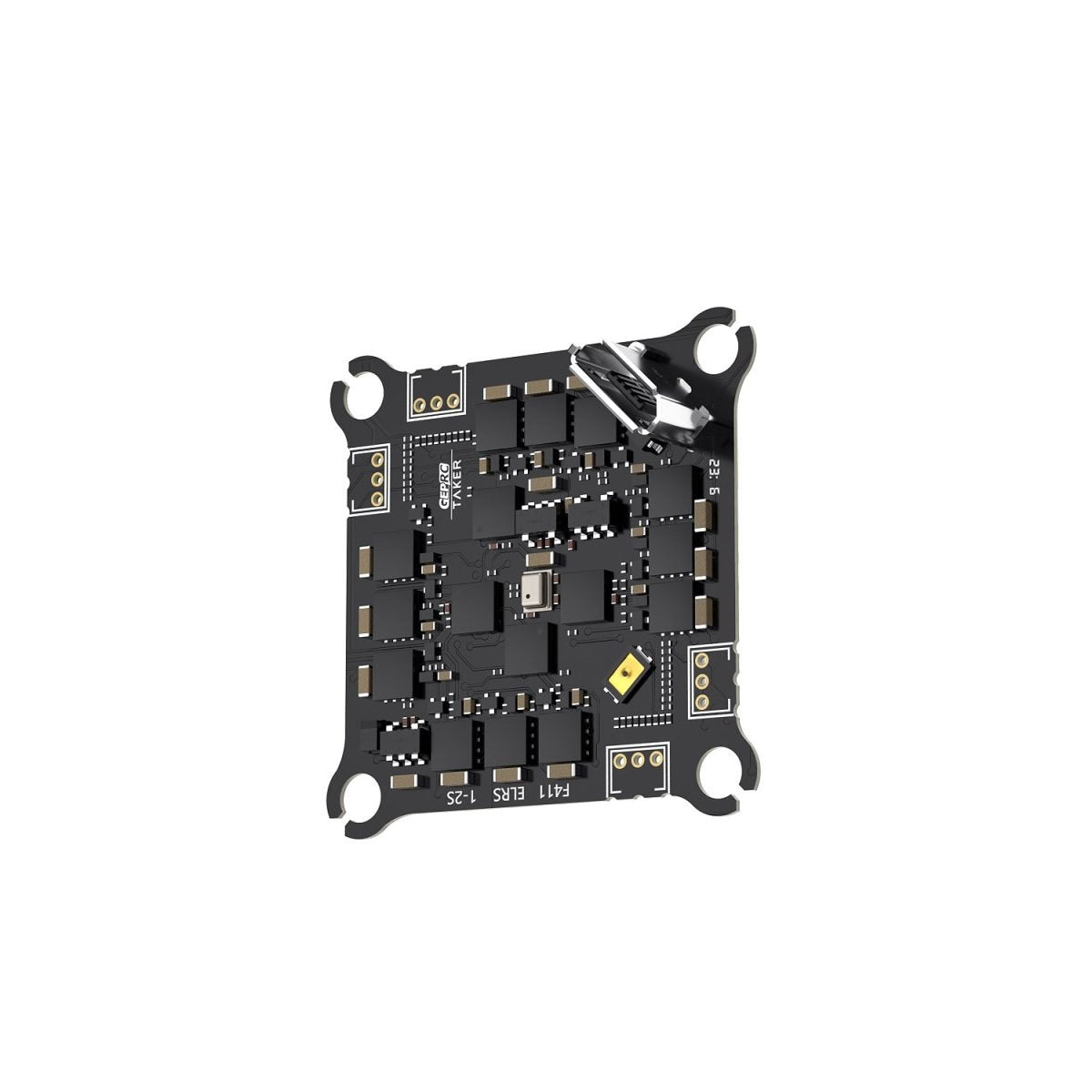

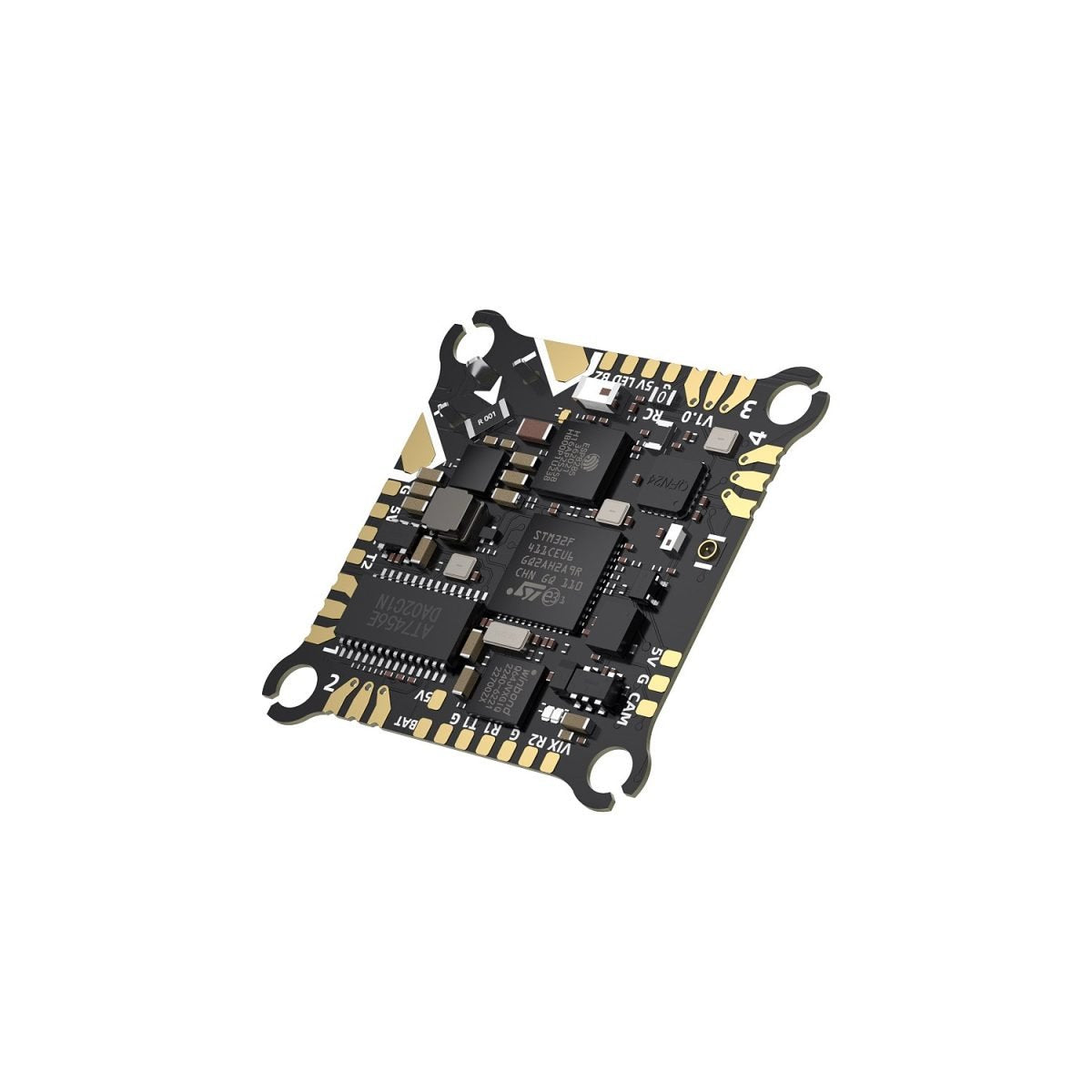

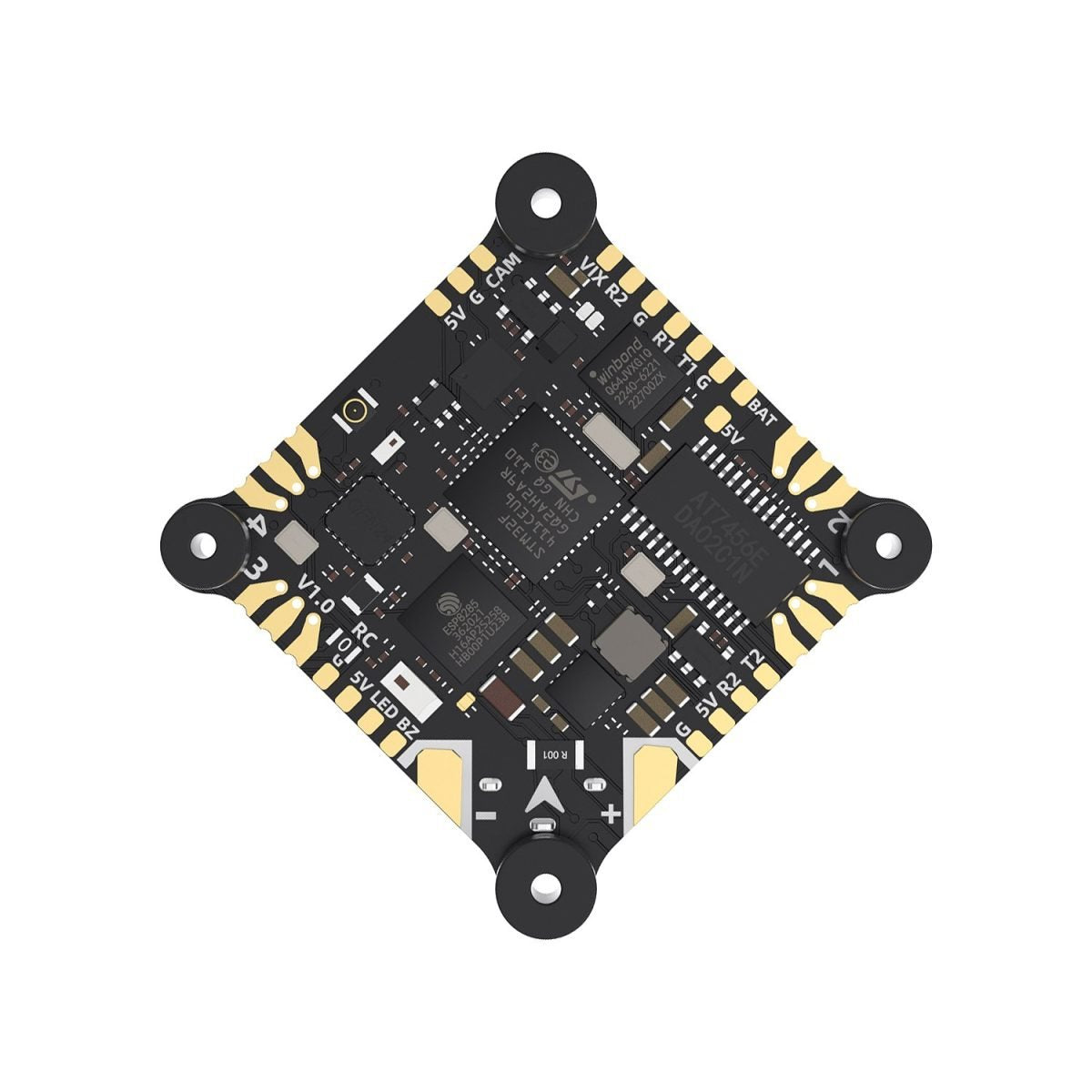

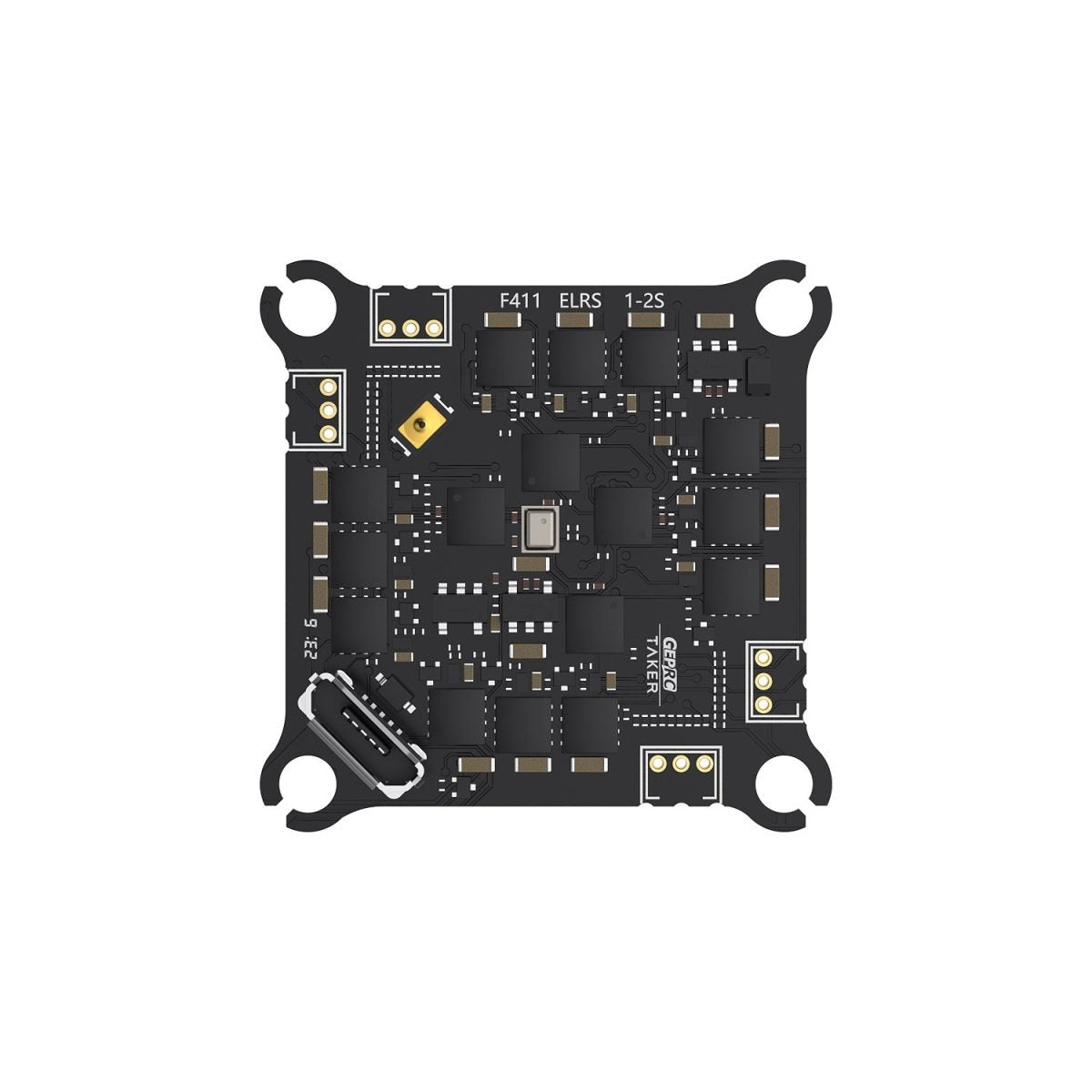

TAKER F411-12A-E 1~2S AIO is a lightweight and highly integrated flight control system, weighing only 4.2g. It is suitable for 1.2-2-inch Whoop models or 3-inch toothpick models.

The 12A ESC overcurrent capability has sufficient redundancy on a small model, and the integrated ELRS2.4G 3.0 receiver makes the installation more space-saving and complete. The F411 main control is equipped with a BMI270 gyroscope, making the flight feel silky and stable.

Feature

  1.  Highly integrated and lightweight flight system
  2.  Supports 1-2S power supply and has higher battery compatibility
  3. STM32F411 main control and BMI270 gyroscope solution, the flight feels silky and stable
  4.  The motor wiring is reserved for welding or SH1
  5.  Integrated ELRS2

Specifications

  • Model: TAKER F411-12A-E 1~2S AIO
  • MCU: STM32F411
  • IMU: ICM 42688-P
  • Firmware Target: TAKERF411
  • OSD: Betaflight OSD w/ AT7456Ev
  • UART: T1 R1 / T2 R2
  • SBUS: R2
  • Receiver: ELRS2.4G 3.0
  • Buzzer: Support
  • LED: Support
  • USB: Micro USB
  • ESC MCU: EFM8BB21F16G
  • Continuous Current: 12A
  • Burst Current: 13A
  • Input Voltage: LiPo/LiHv 1S-2S
  • Support Protocol: Dshot300/600,Oneshot,Multishot
  • Blackbox: 8MB
  • Galvanometer: Support
  • Firmware Target: C-X-30

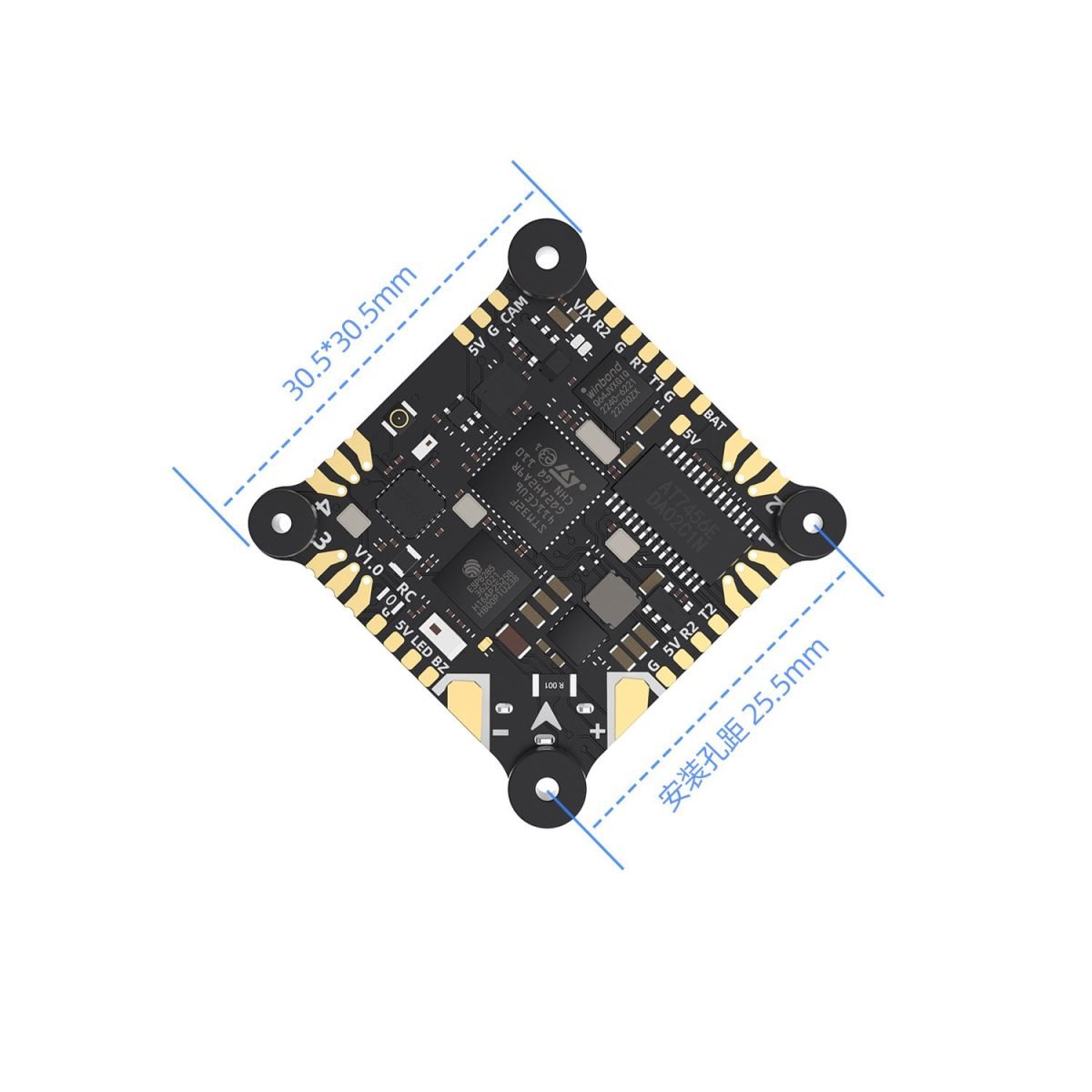

  • Size: 30.5mm*30.5mm
  • Fixing hole size:25.5mm*25.5mm(M2)
  • Weight: 4.2g

Includes

1 x TAKER F411-12A-E 1~2S AIO

1 x Cable Set
