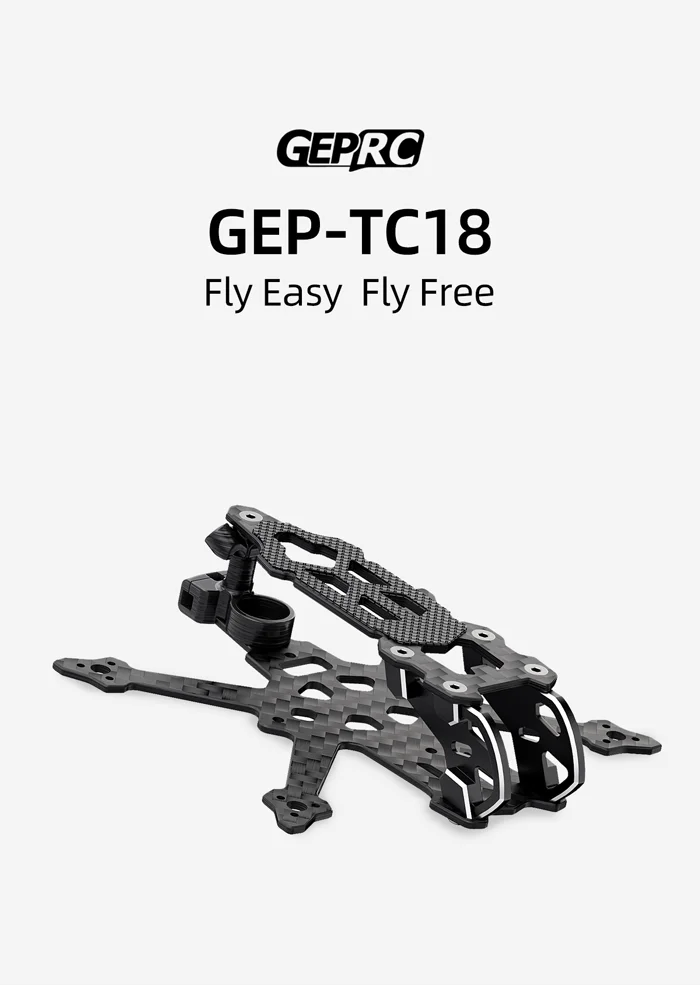

GEP-TC18 Frame

**Tax & Customs Notice (EU Customers)**

For orders **under €150**, the displayed prices **include all VAT and taxes**. You won’t need to pay anything extra upon delivery.

For orders **over €150**, import VAT and customs duties are **not included** in the price and must be paid by the recipient upon delivery, as per EU regulations.

If you have any questions about taxes or shipping, feel free to contact us — we're happy to help!

Features

1.  Camera secured with 7075 aluminum parts for enhanced stability.

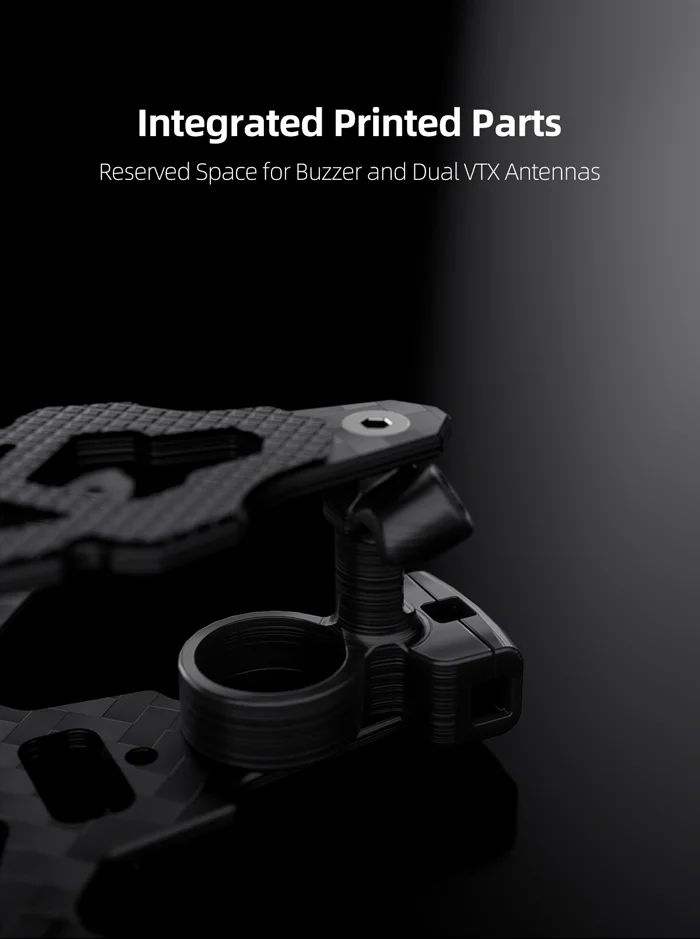

2. Integrated rear design with space for the buzzer and dual VTX antennas.
3. The 1.5mm thick drone arm ensures durability and robustness.

Specification

• Model: GEP-TC 18 frame

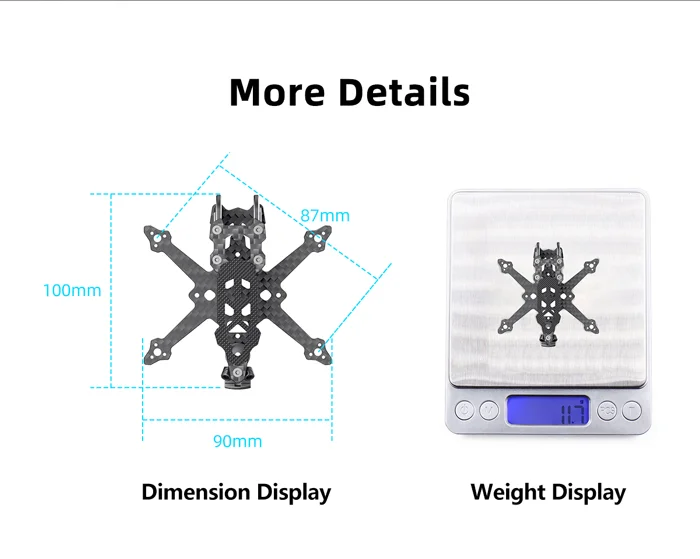

• Wheelbase: 87mm


• Dimension: 100*90mm


• Frame Type: Wide X


• Top Plate: 1.5mm


• Bottom Plate: 1.5mm


• FC Mounting Pattern: 25.5*25.5/M2


• VTX Mounting Patterns:  25.5*25.5/M2


• Motor Mounting Patterns: 6.6*6.6/M1.4


• Camera Side Plate Gap: 14*14mm


• Stack Mounting Height: 12mm


• Weight: 11.7g

Recommended Accessories

• Motor: 0802-1002
• FC:TAKER F411-12A-E 1~2S AIO FC
• VTX: RAD Tiny 5.8G 400mW
