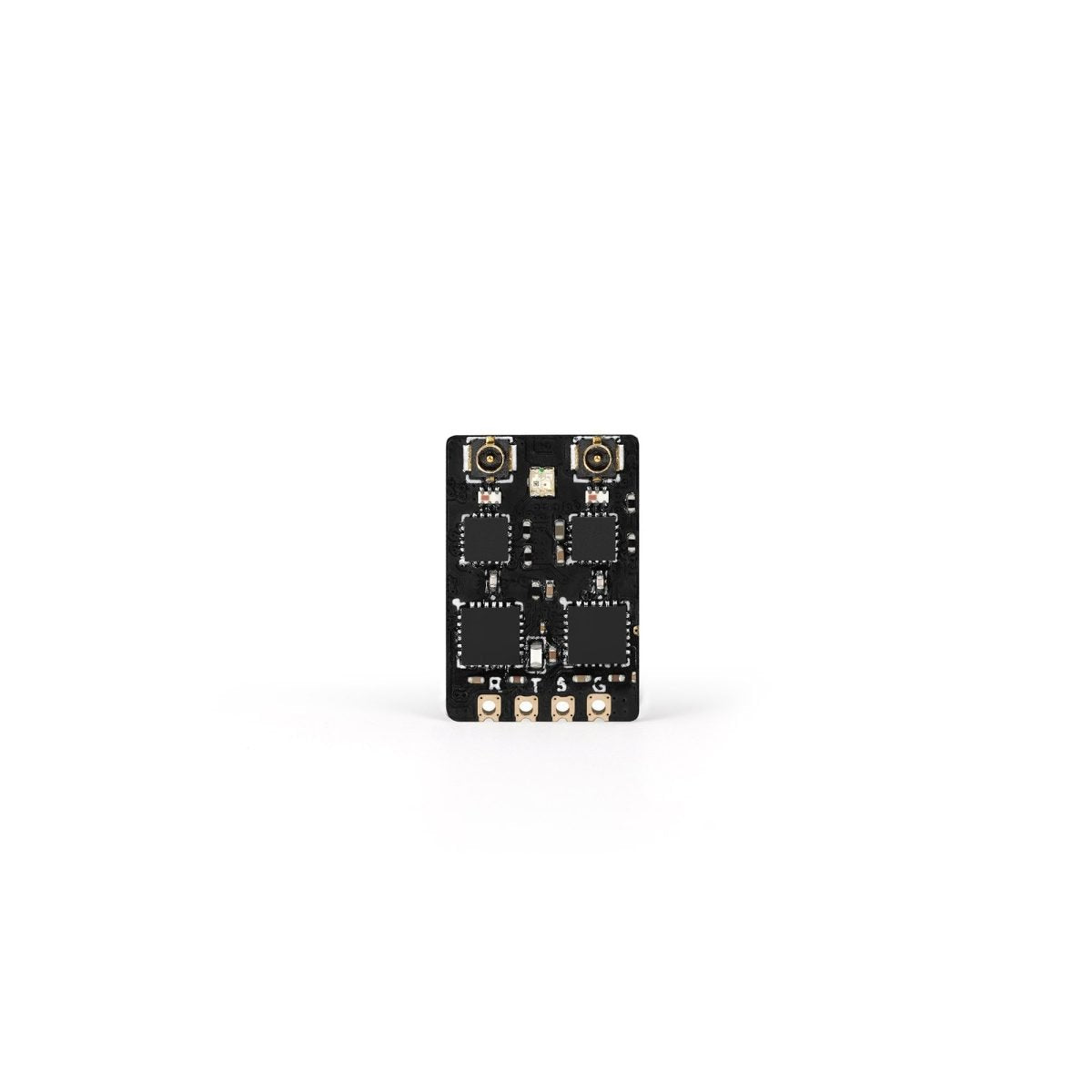

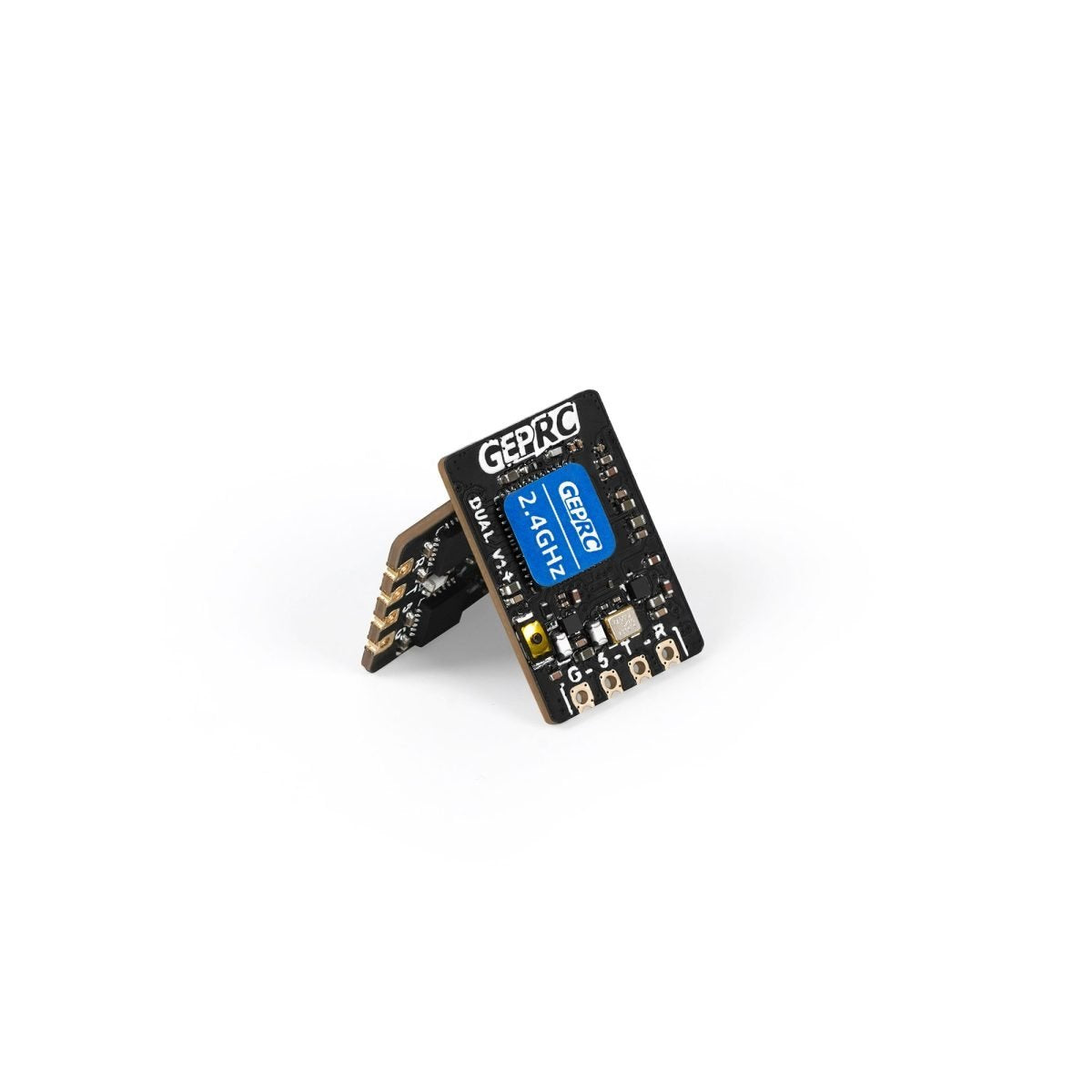

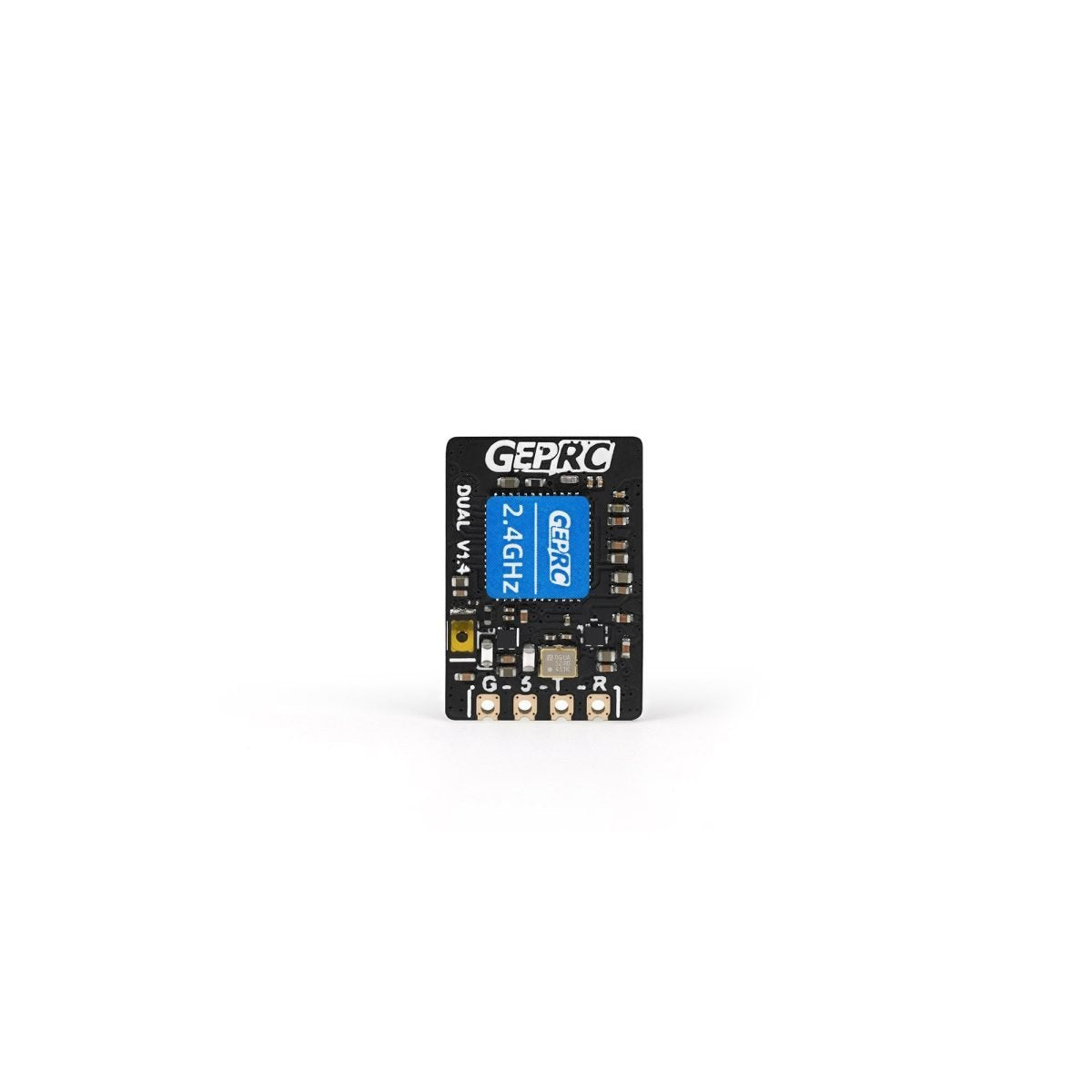

GEPRC ELRS DUAL 2.4G Diversity Receiver

**Tax & Customs Notice (EU Customers)**

For orders **under €150**, the displayed prices **include all VAT and taxes**. You won’t need to pay anything extra upon delivery.

For orders **over €150**, import VAT and customs duties are **not included** in the price and must be paid by the recipient upon delivery, as per EU regulations.

If you have any questions about taxes or shipping, feel free to contact us — we're happy to help!

Summary

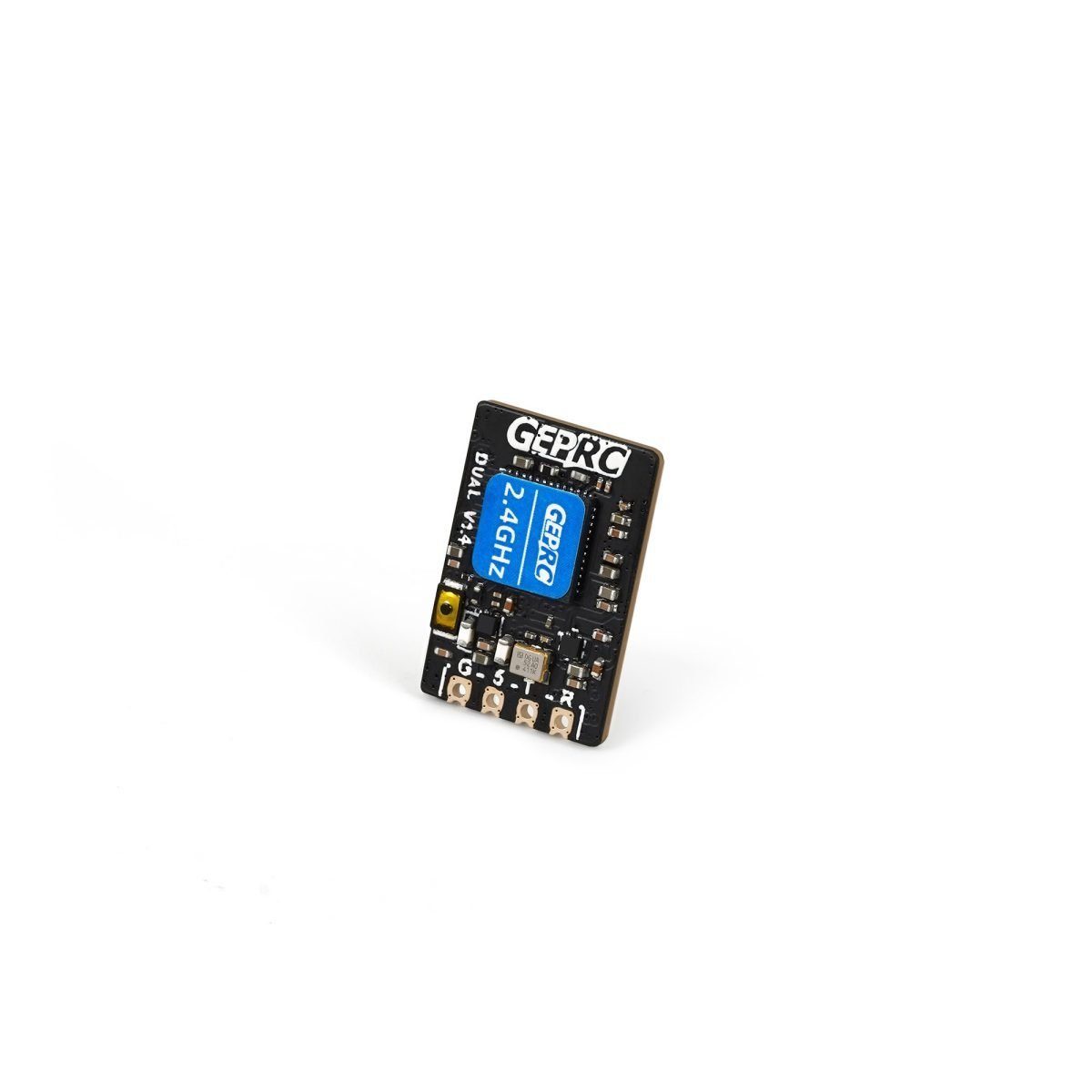

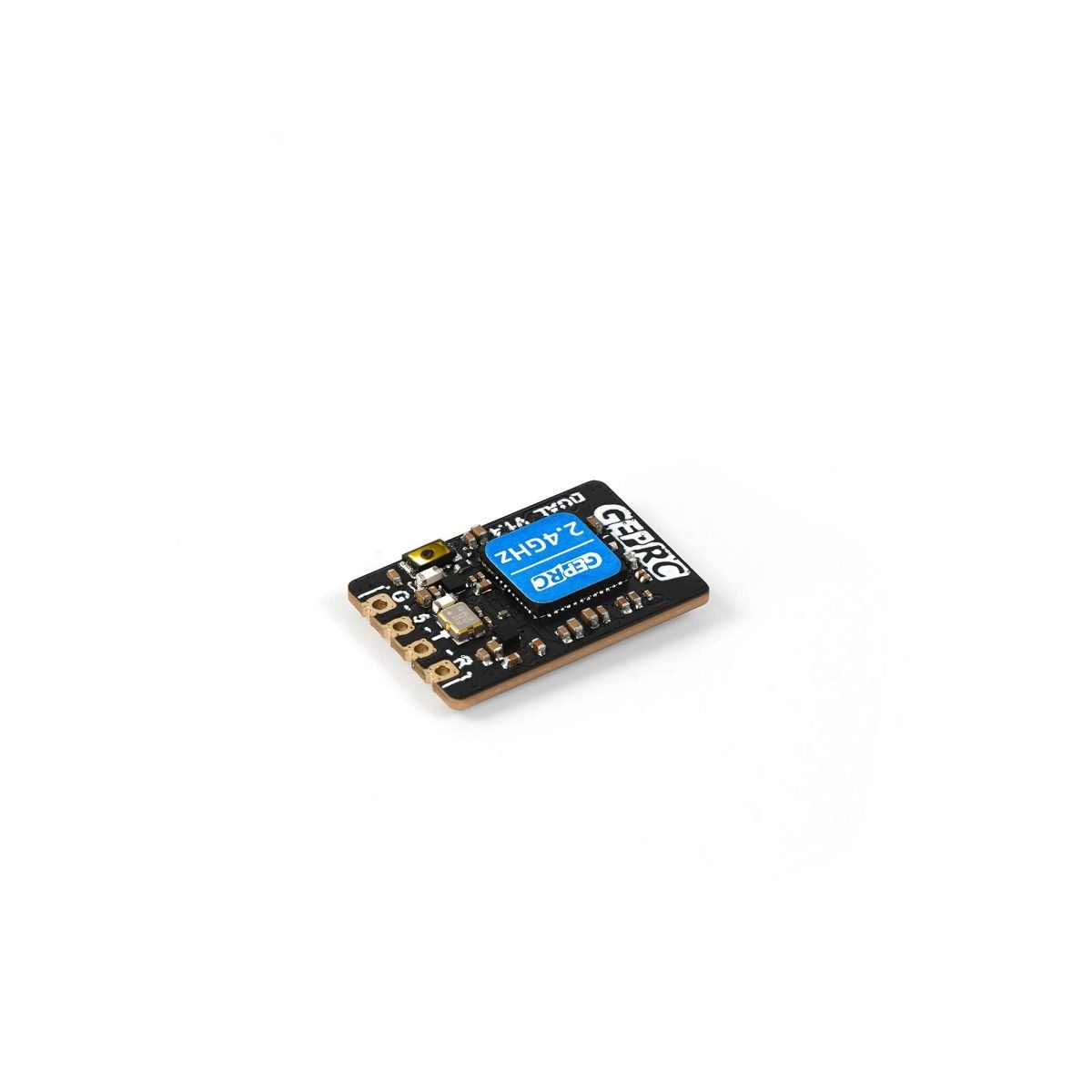

GEPRC ELRS DUAL 2.4G Diversity Receiver is a new generation of true dual-antenna diversity receiver system based on the ExpressLRS open source project. ExpressLRS features long range operation, low latency, maximum 1000Hz refresh rate, and low price.

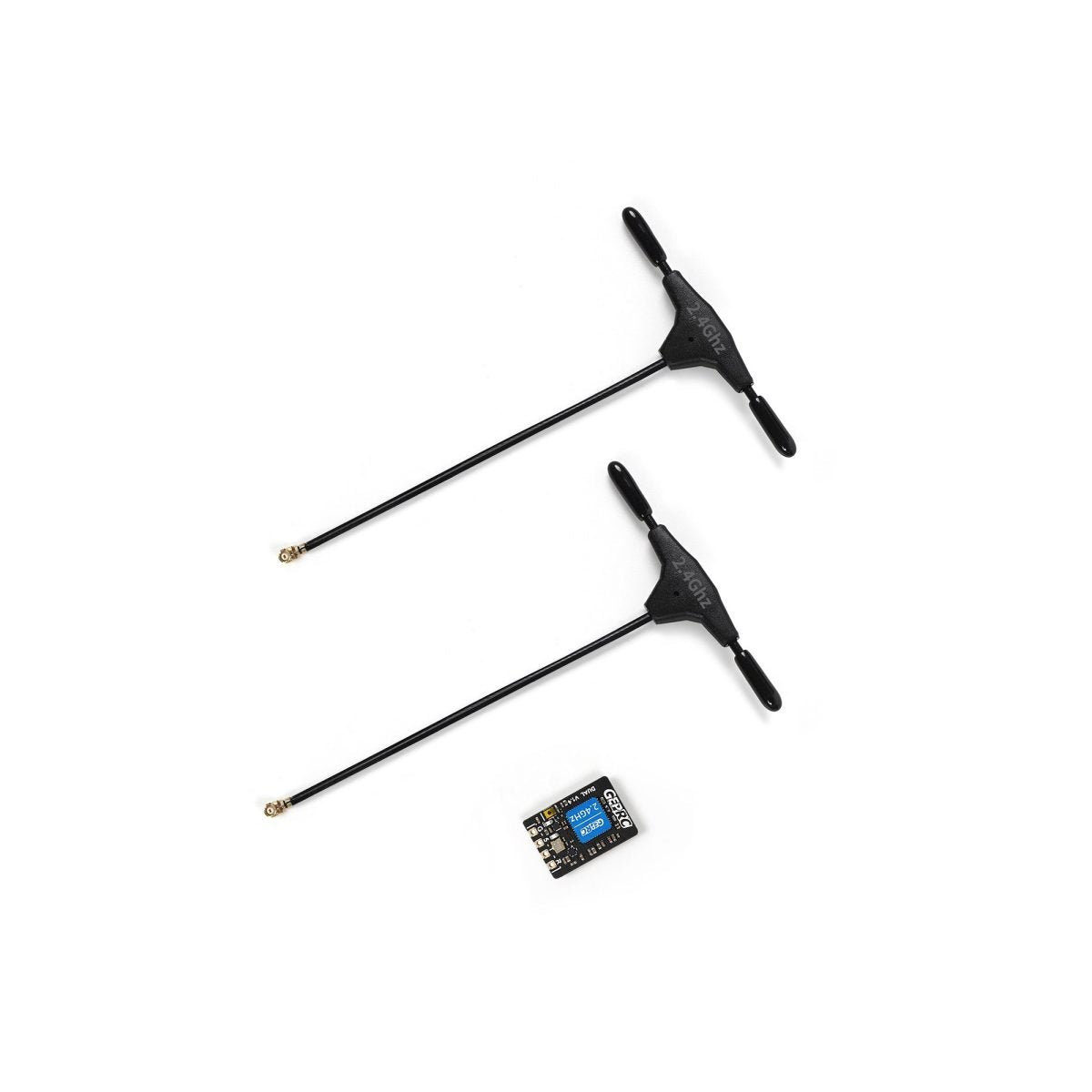

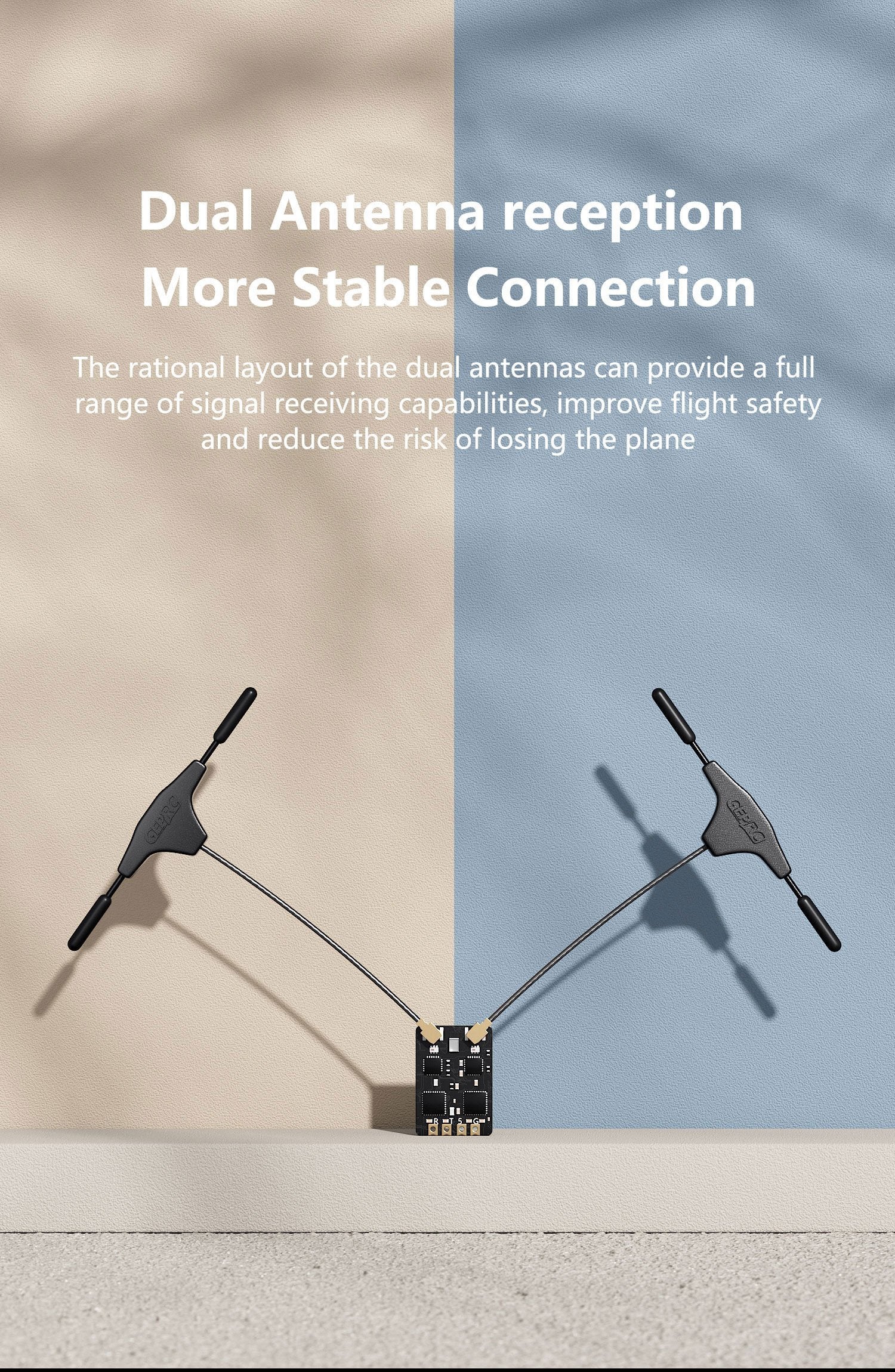

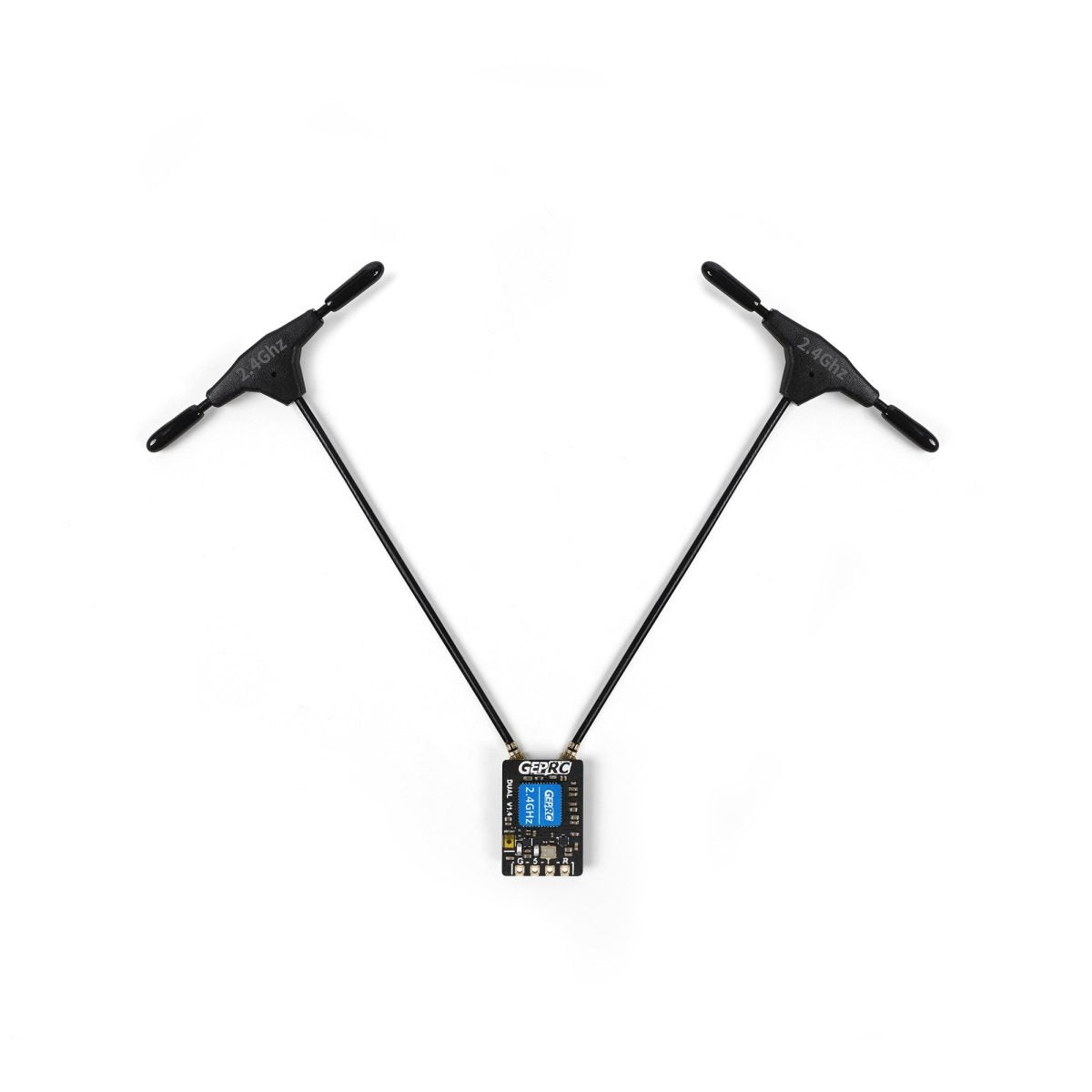

The ELRS DUAL 2.4G Diversity Receiver has a reasonable placement of dual antennas for wider signal reception and more stable connection than ordinary single antenna receiver systems. It uses a TCXO temperature compensated crystal oscillator to avoid frequency shifts caused by temperature changes and the telemetry power is up to 100mW.

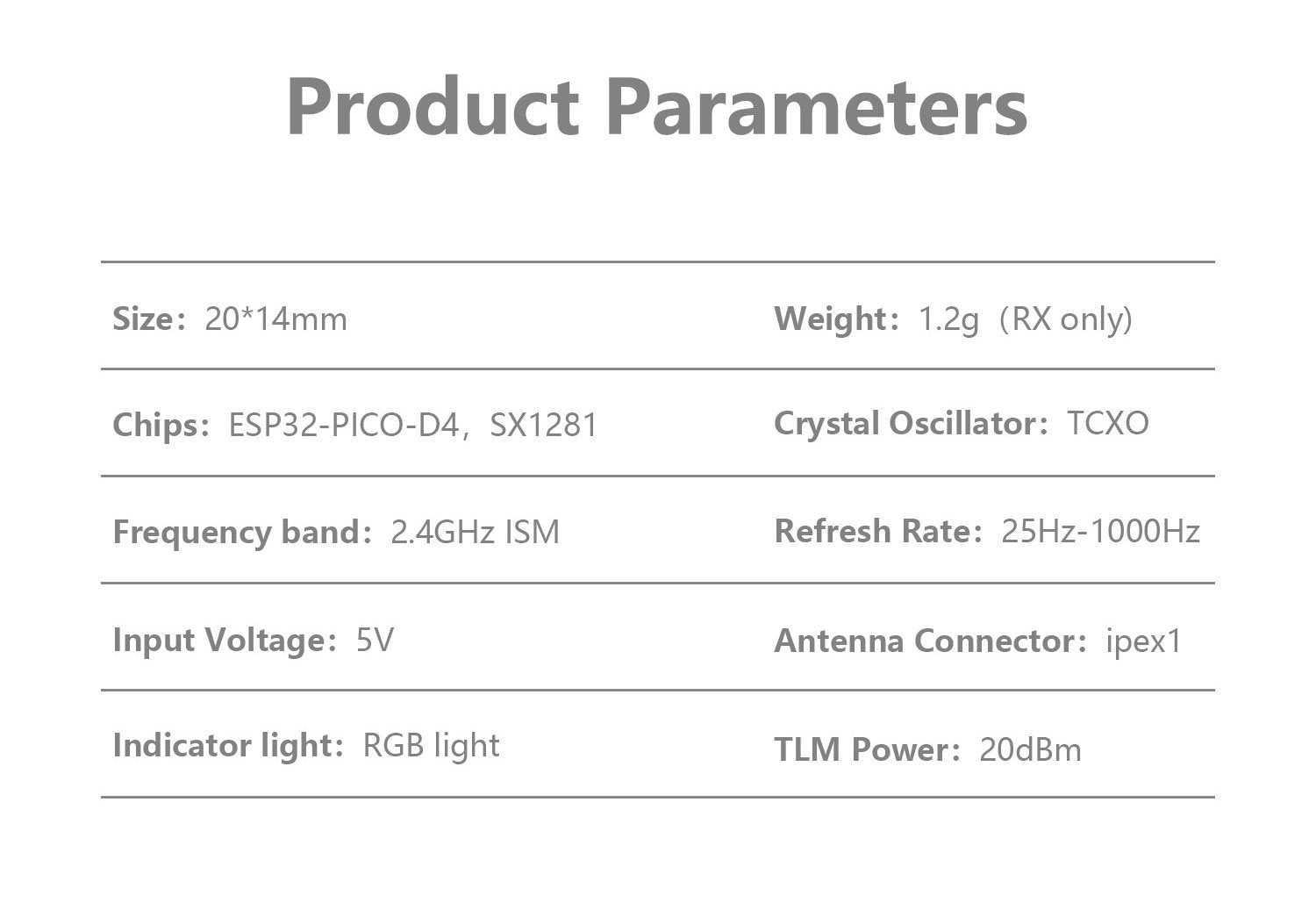

Specifications

• Size: 20*14mm
• Weight: 1.2g (RX only)

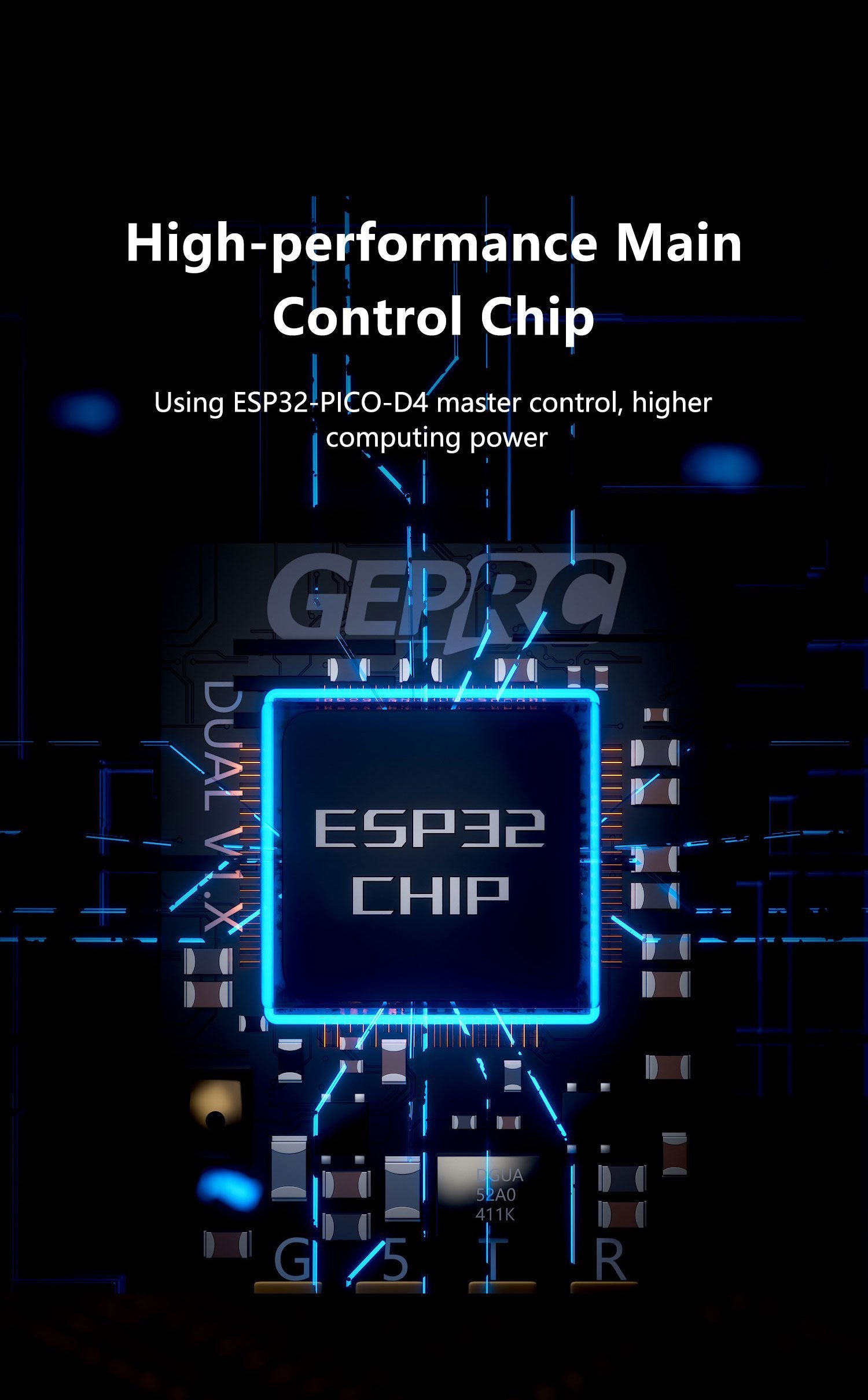

• Chips: ESP32-PICO-D4, SX1281
• Crystal Oscillator: TCXO
• Frequency Band: 2.4GHz ISM
• Refresh Rate: 25Hz-1000Hz
• Input Voltage: 5V
• Antenna Connector: ipex1

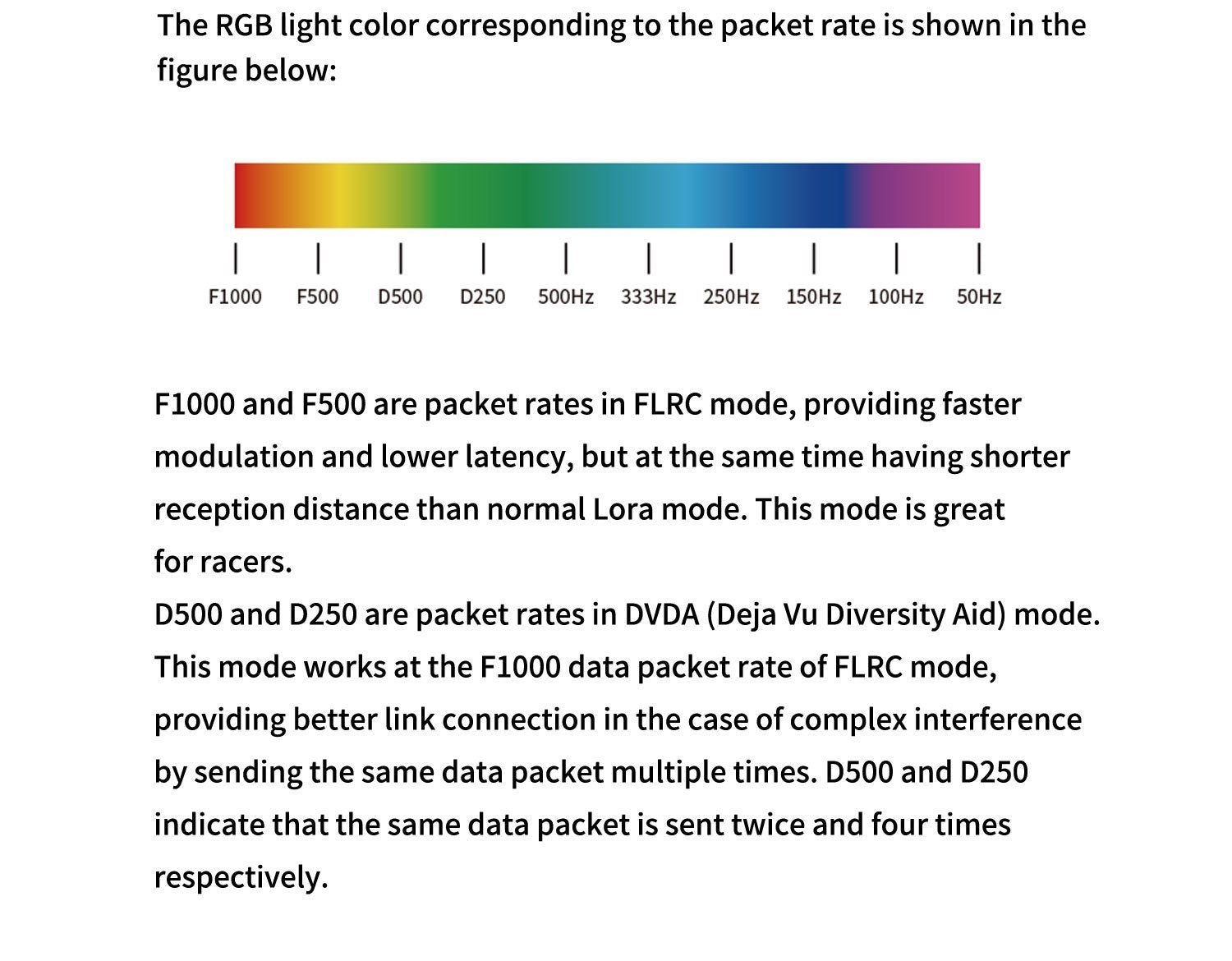

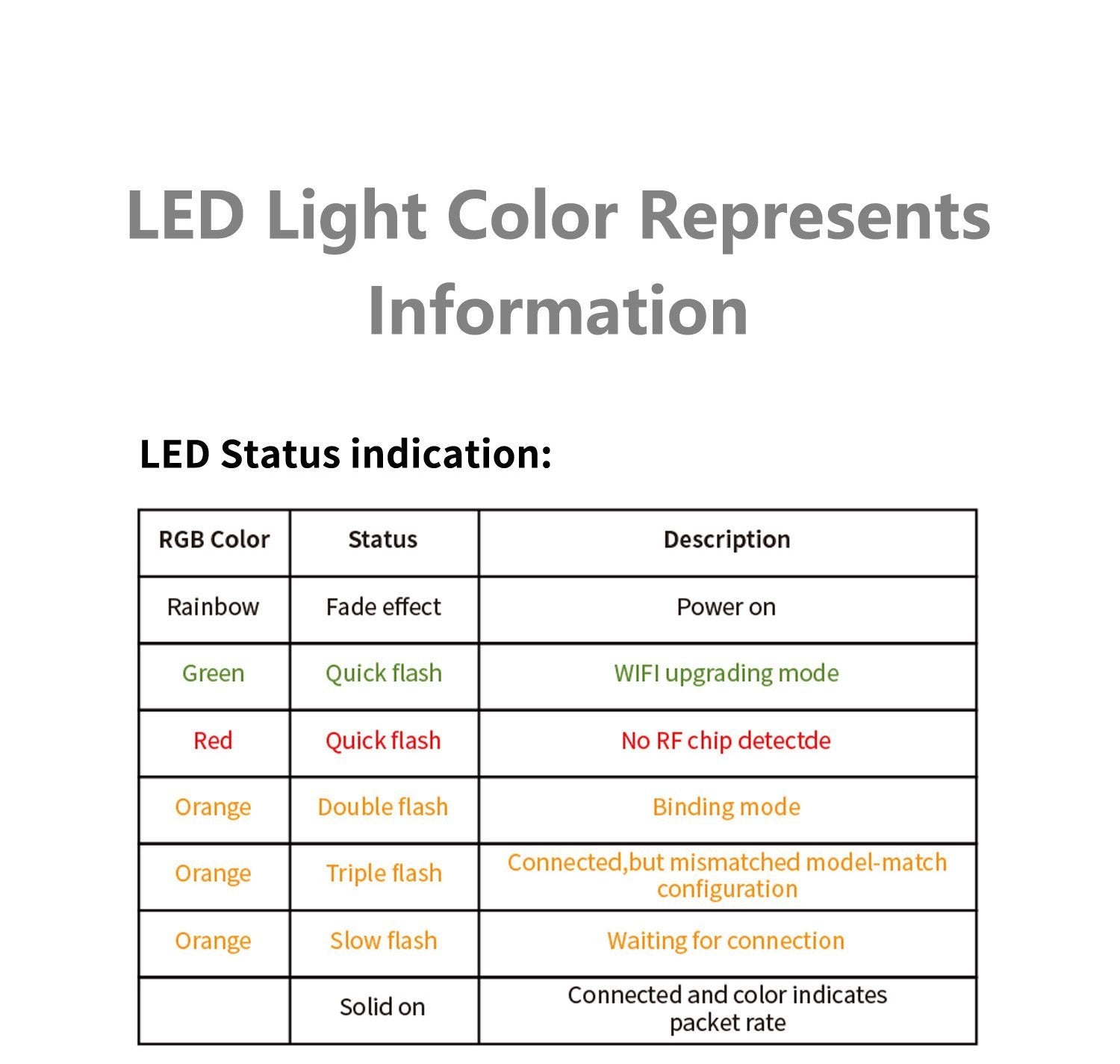

• Indicator Light: RGB light
• TLM Power: 20dBm

Feature

1. 20mm*14mm Small size
2. 1.2g weight
3. WIFI Upgrade firmware
4. ELRS open source project, remote control
5. Maximum refresh rate of 1000Hz

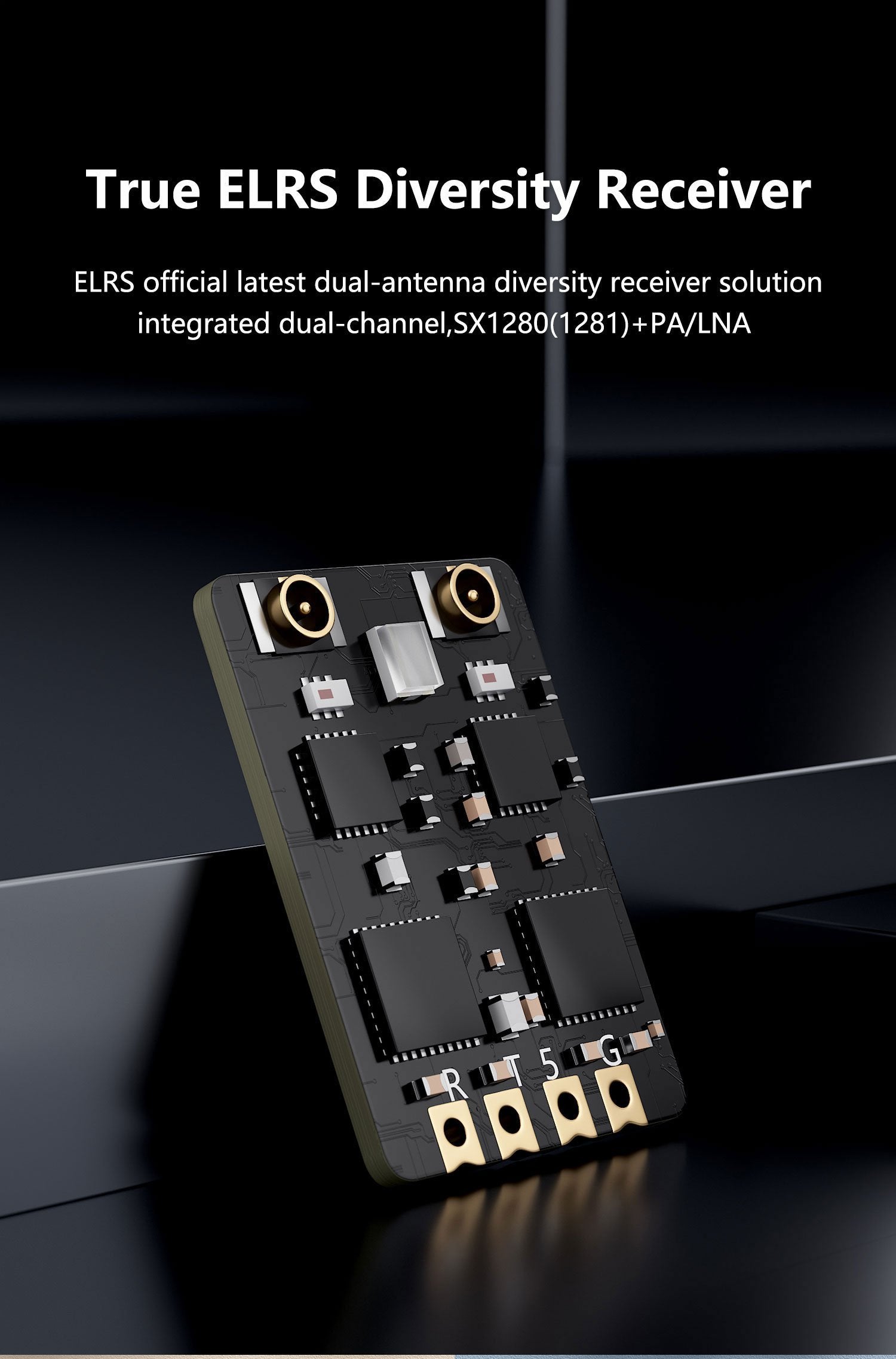

6. Two independent RF receiving links, true diversity receiver
7. The use of temperature-compensated crystal oscillator (TCXO), no fear of high or low temperature impact, more stable performance, even if long hours of work is not easy to cause loss of control

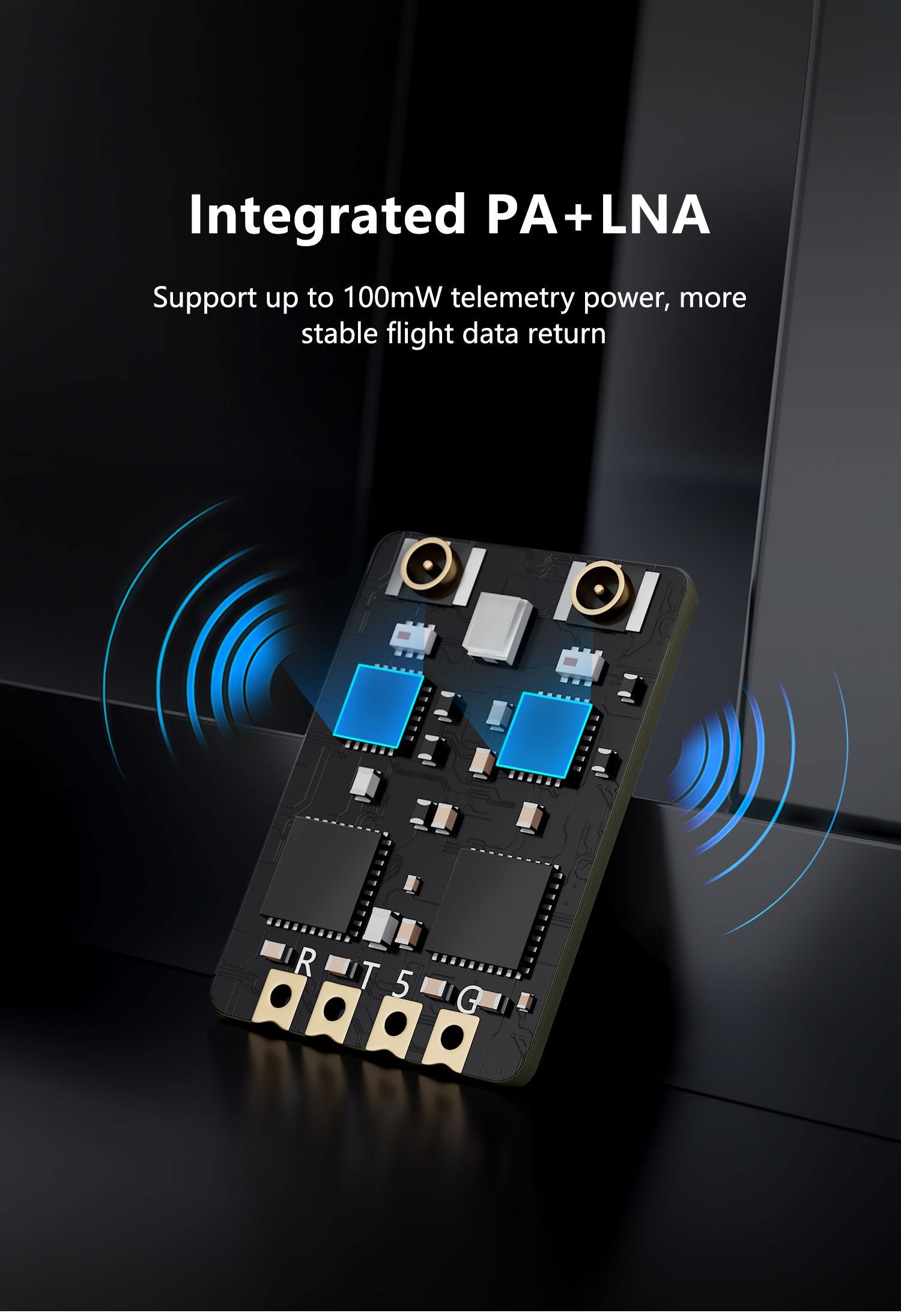

8. Built-in PA + LNA, up to 100mW telemetry power
