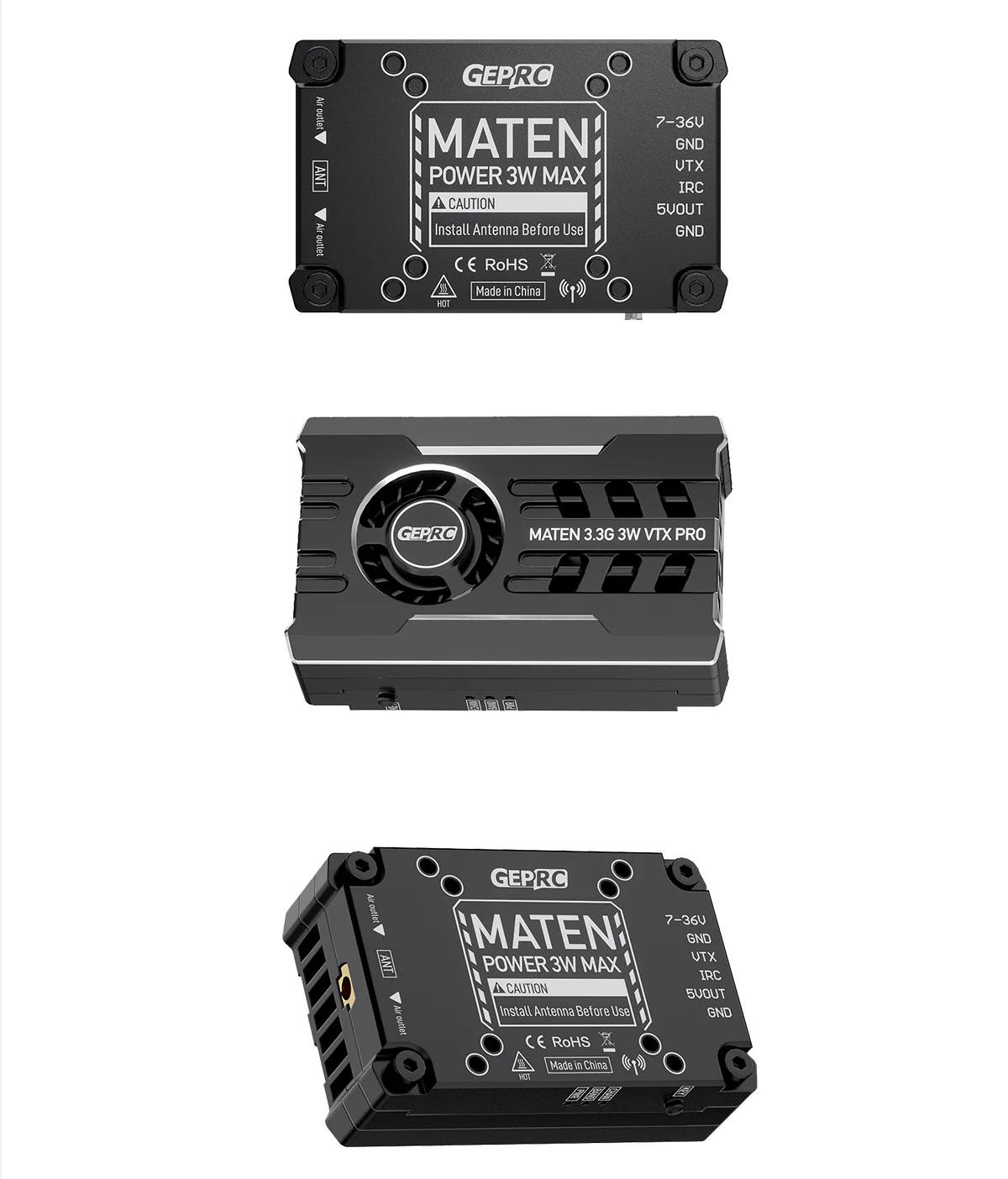

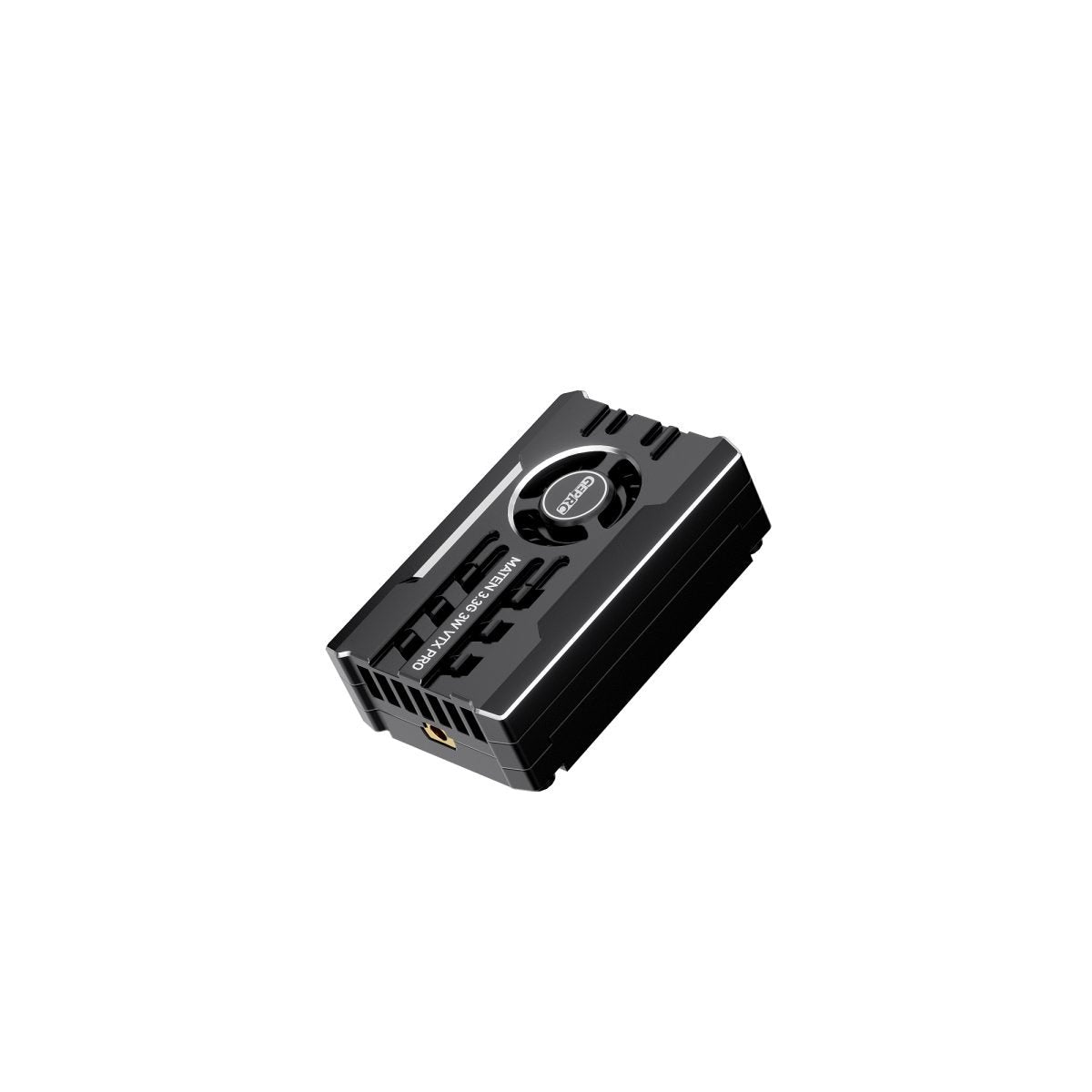

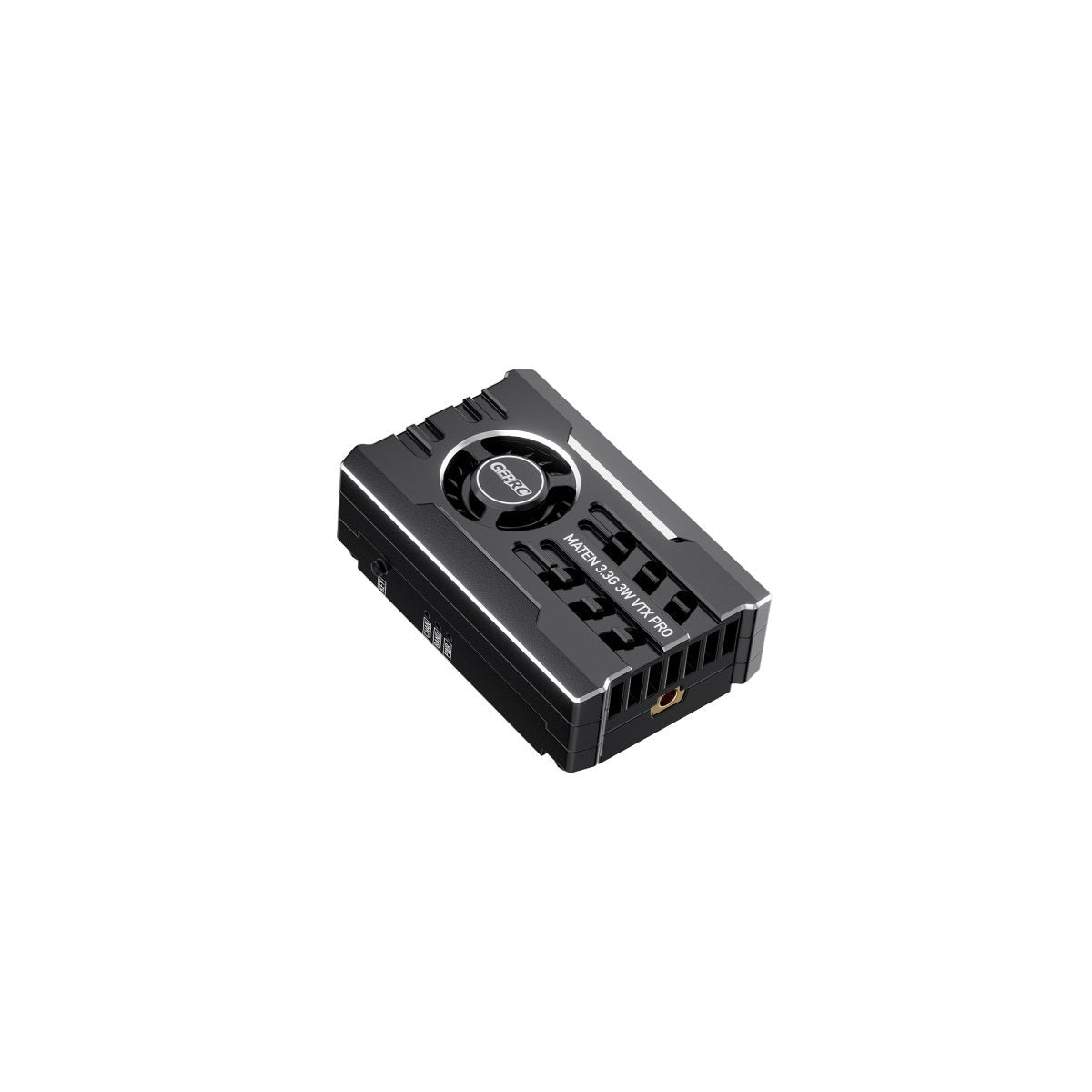

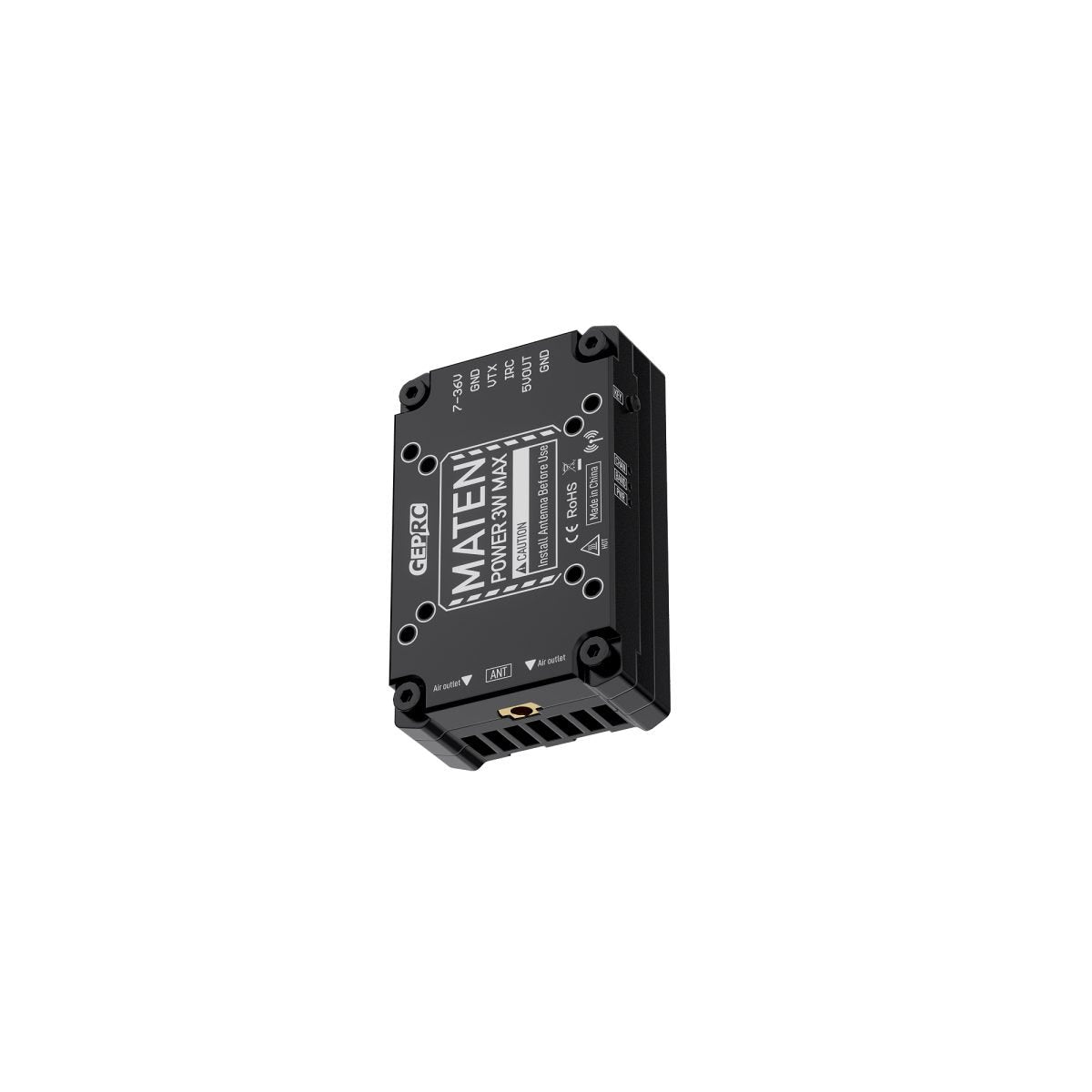

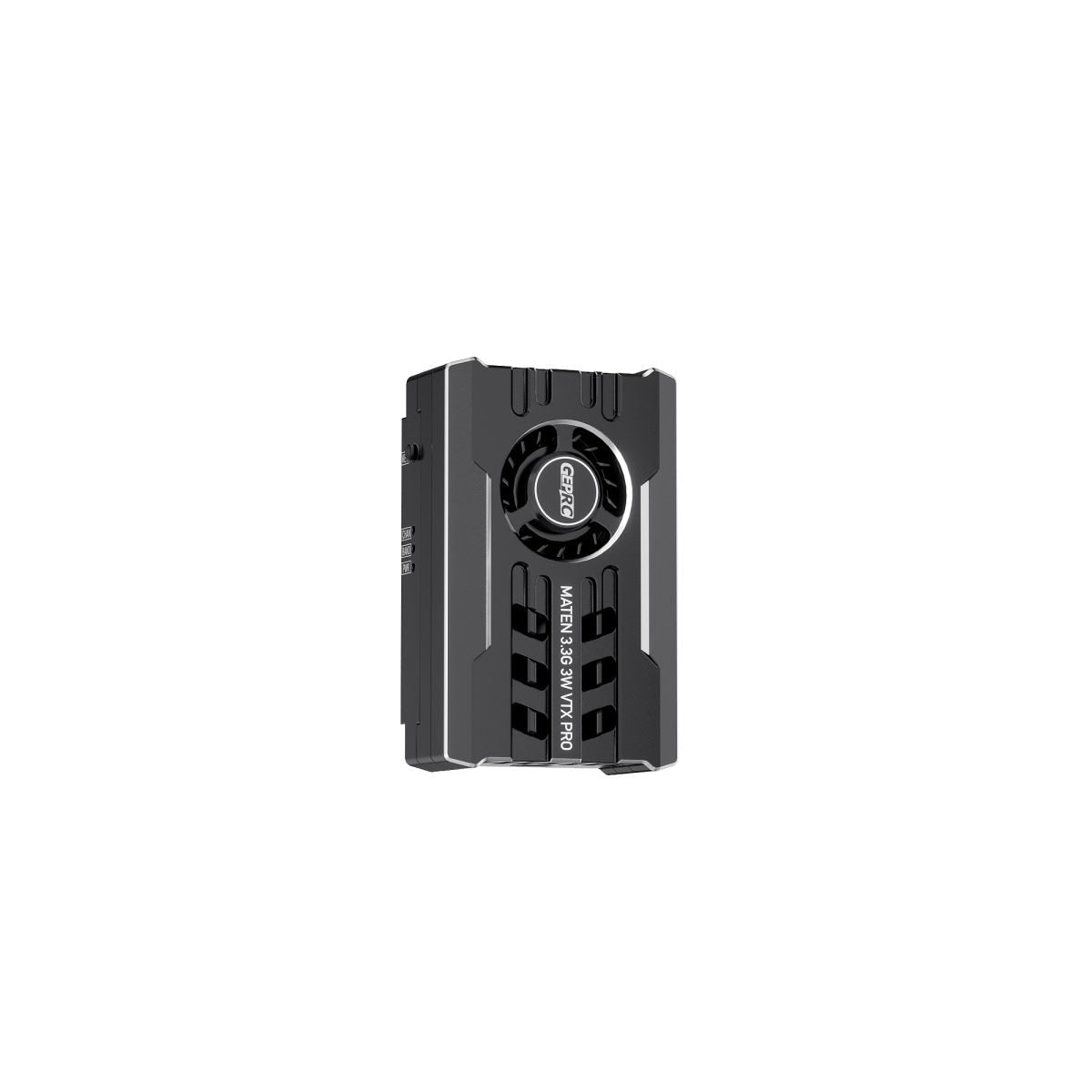

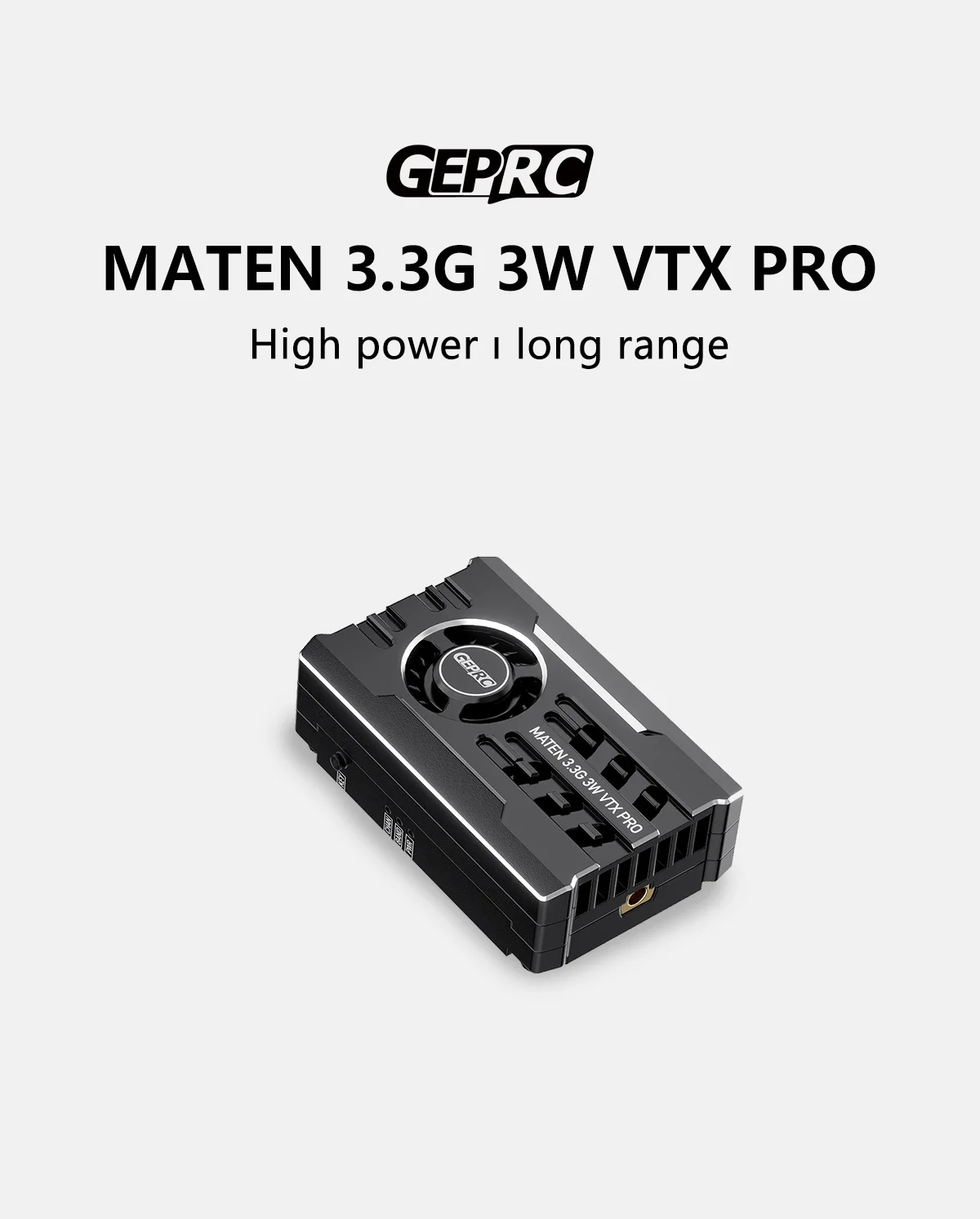

GEPRC MATEN 3.3G 3W VTX PRO

GEPRC MATEN 3.3G 3W VTX PRO

Regular price €76,90 EUR
Regular price Sale price €76,90 EUR
Sale Sold out
Taxes included.

**Tax & Customs Notice (EU Customers)**

For orders **under €150**, the displayed prices **include all VAT and taxes**. You won’t need to pay anything extra upon delivery.

For orders **over €150**, import VAT and customs duties are **not included** in the price and must be paid by the recipient upon delivery, as per EU regulations.

If you have any questions about taxes or shipping, feel free to contact us — we're happy to help!

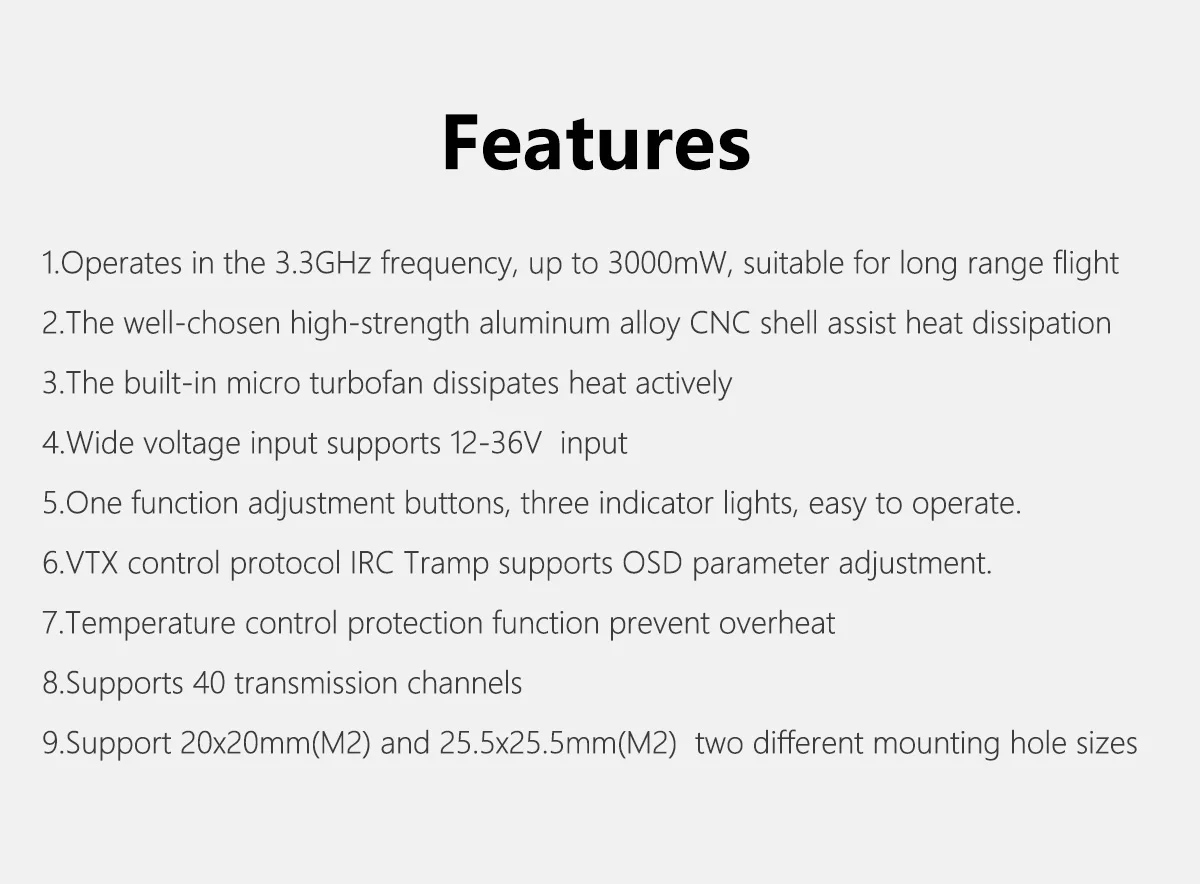

Features

  1. Operates in the 3.3GHz frequency, up to 3000mW, suitable for long range flight
  2. The well-chosen high-strength aluminum alloy CNC shell assist heat dissipation
  3. The built-in micro turbofan dissipates heat actively
  4. Wide voltage input supports 12-36V input

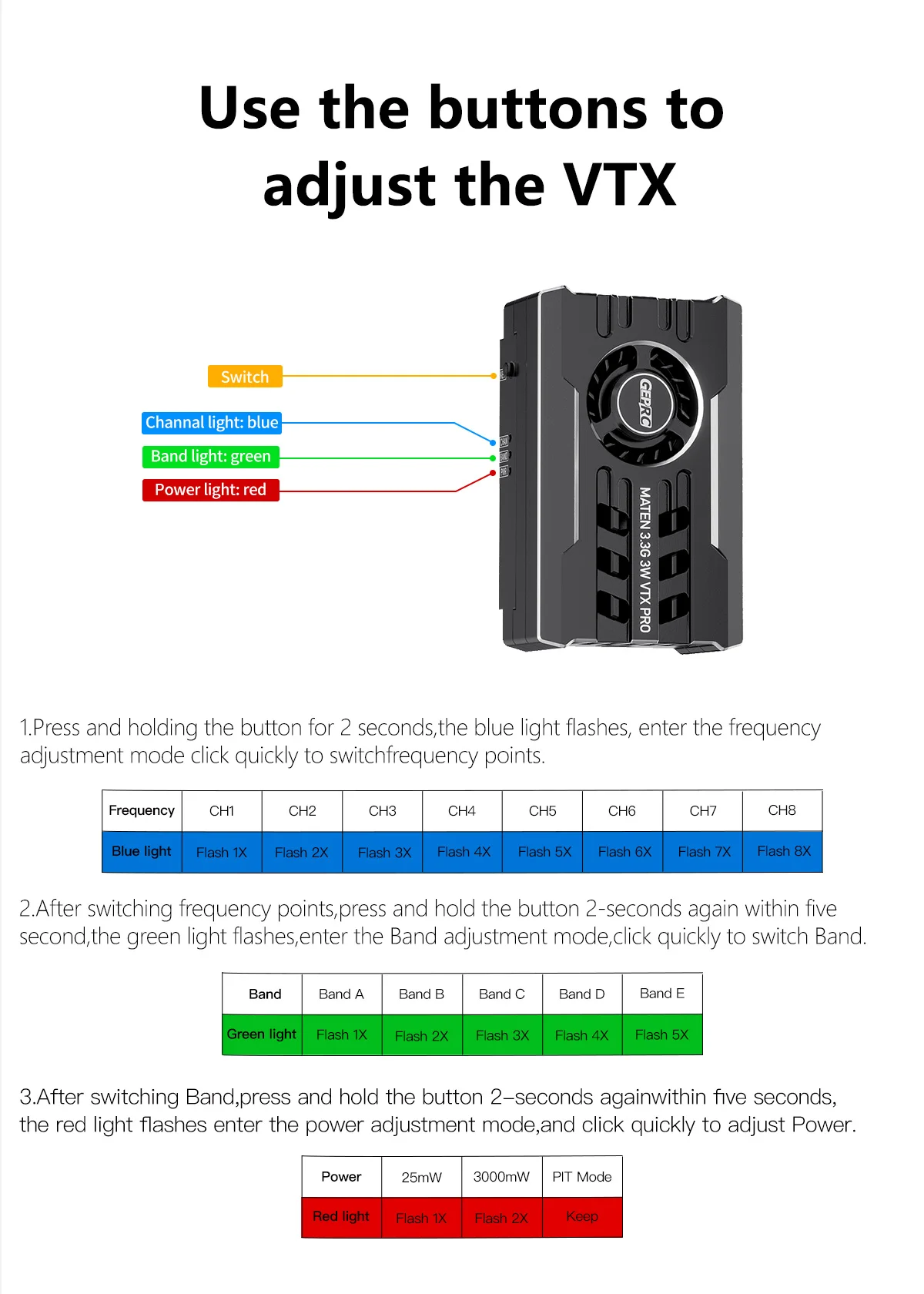

  5. One function adjustment buttons, three indicator lights, easy to operate.
  6. VTX control protocol IRC Tramp supports OSD parameter adjustment.
  7. Temperature control protection function prevent overheat
  8. Supports 40 transmission channels
  9. Support 20x20mm(M2) and 25.5×25.5mm(M2) two different mounting hole sizes

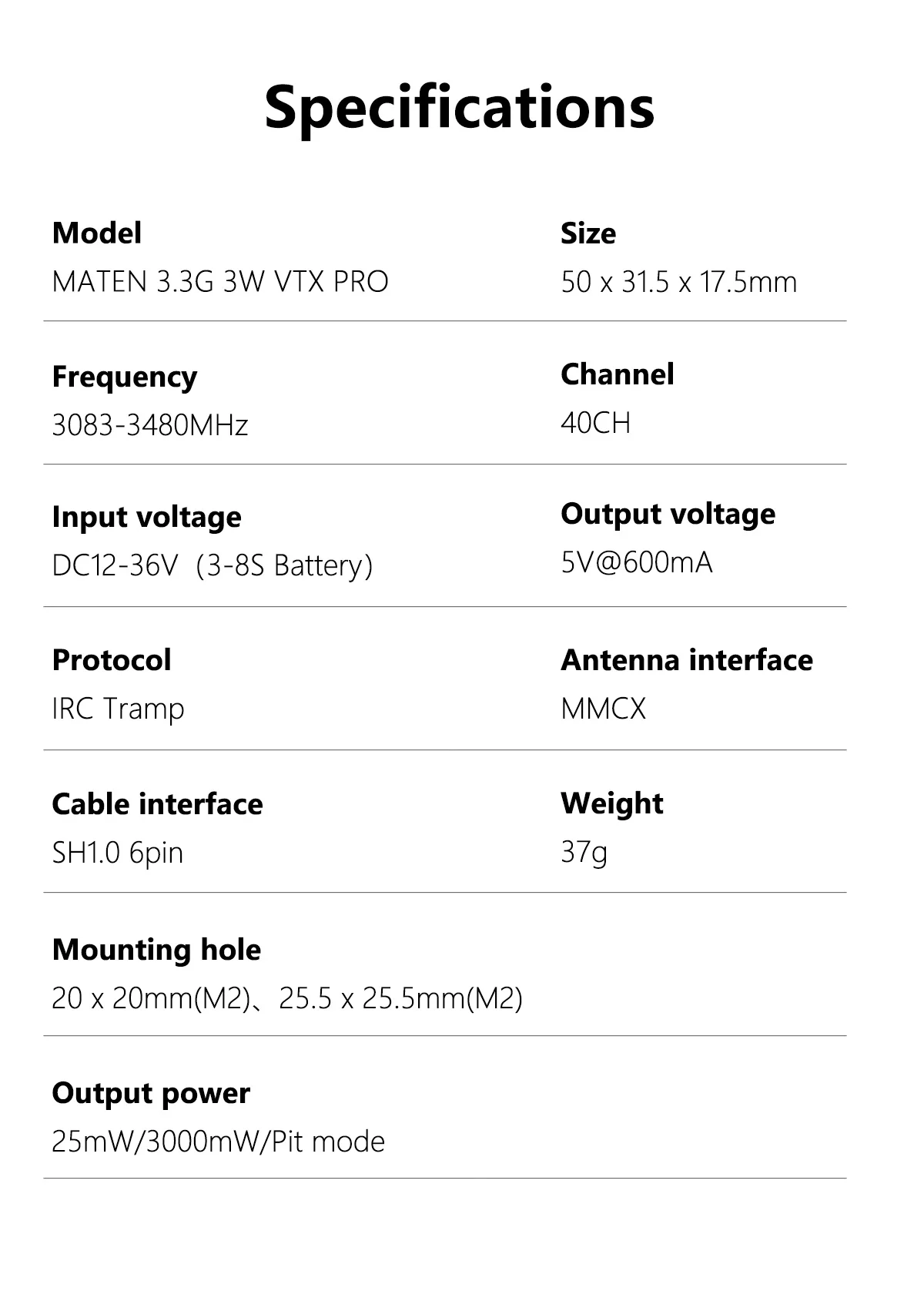

Specifications

  • Model:GEPRC MATEN 3.3G 3W VTX PRO

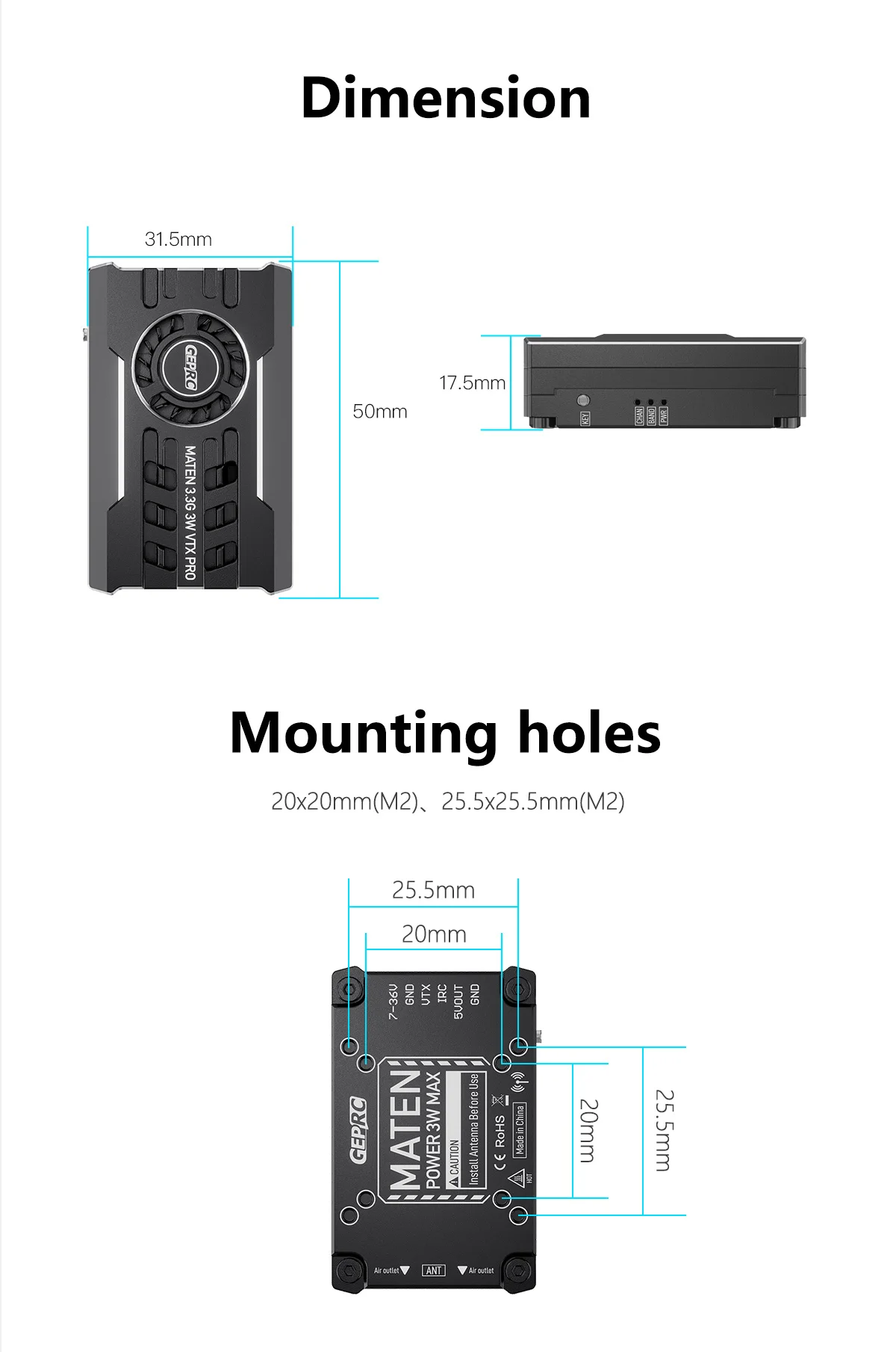

  • Size:50×31.5×17.5mm
  • Mounting hole:20x20mm(M2),25.5×25.5mm(M2)
  • Output power:25mW/3000mW/Pit mode
  • Frequency:3083-3480MHz
  • Channel:40CH
  • Input voltage:DC12-36V(3-8S Battery)
  • Output voltage:5V@600mA
  • Protocol:IRC Tramp
  • Antenna interface:MMCX
  • Cable interface:SH1.0 6pin
  • Weight:37g

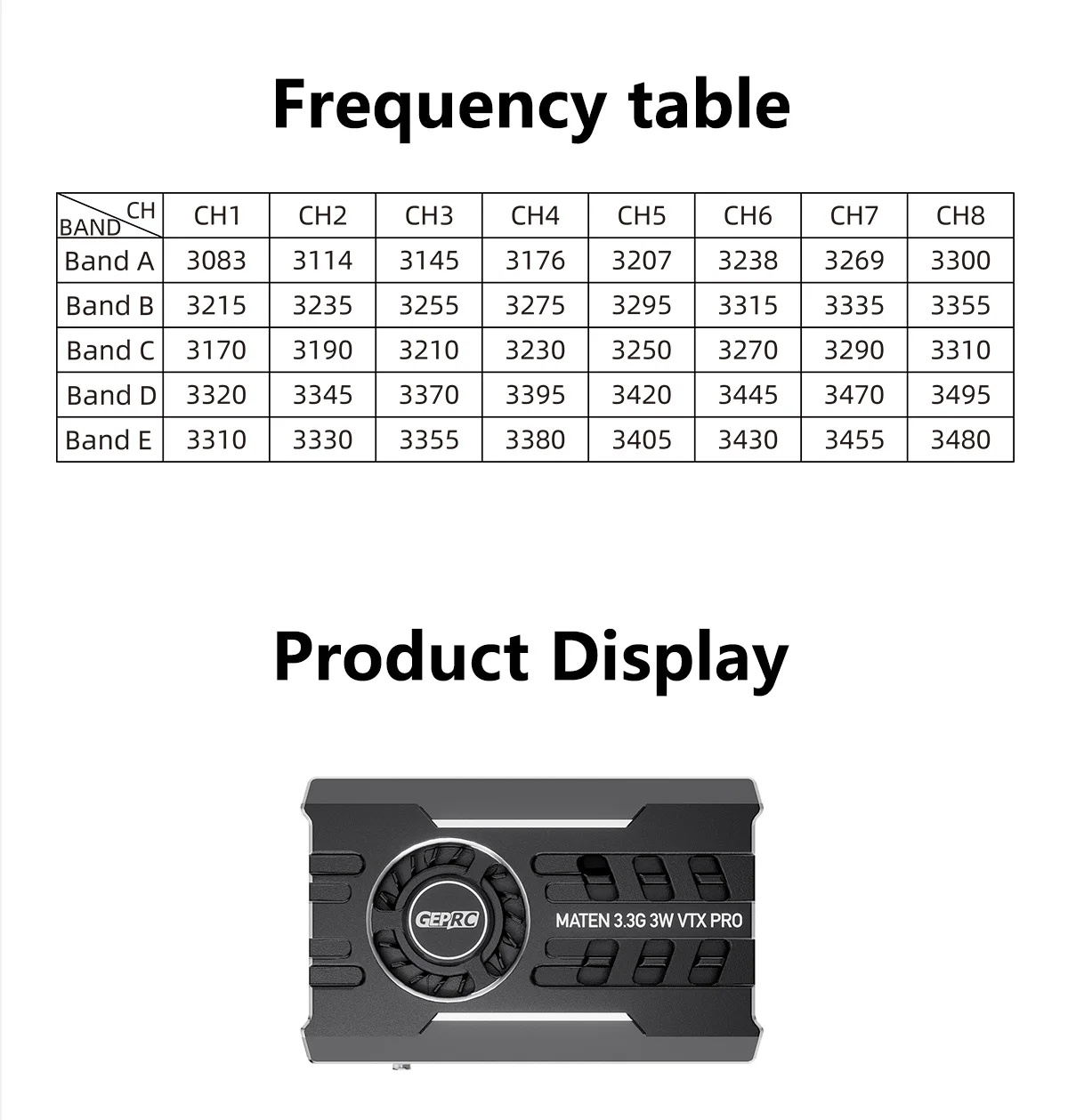

Frequency Bands

A:3083,3114,3145,3176,3207,3238,3269,3300
B:3215,3235,3255,3275,3295,3315,3335,3355
C:3170,3190,3210,3230,3250,3270,3290,3310
D:3320,3345,3370,3395,3420,3445,3470,3495
E:3310,3330,3355,3380,3405,3430,3455,3480

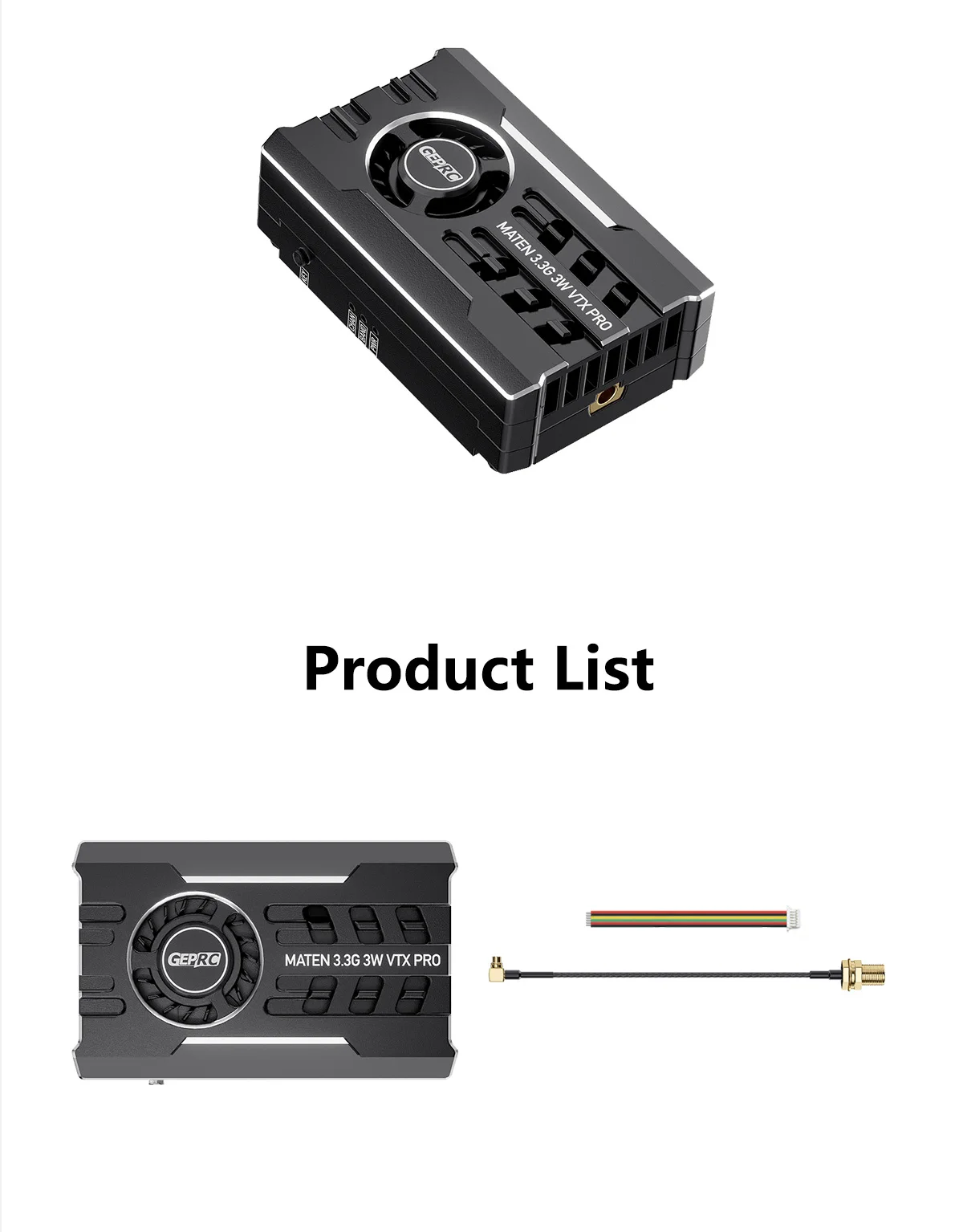

Includes

1 x MATEN 3.3G 3W VTX PRO

1 x MMCX to SMA connector

1 x sh1.0 6P Connecting cable

1 x User manual
