Summary

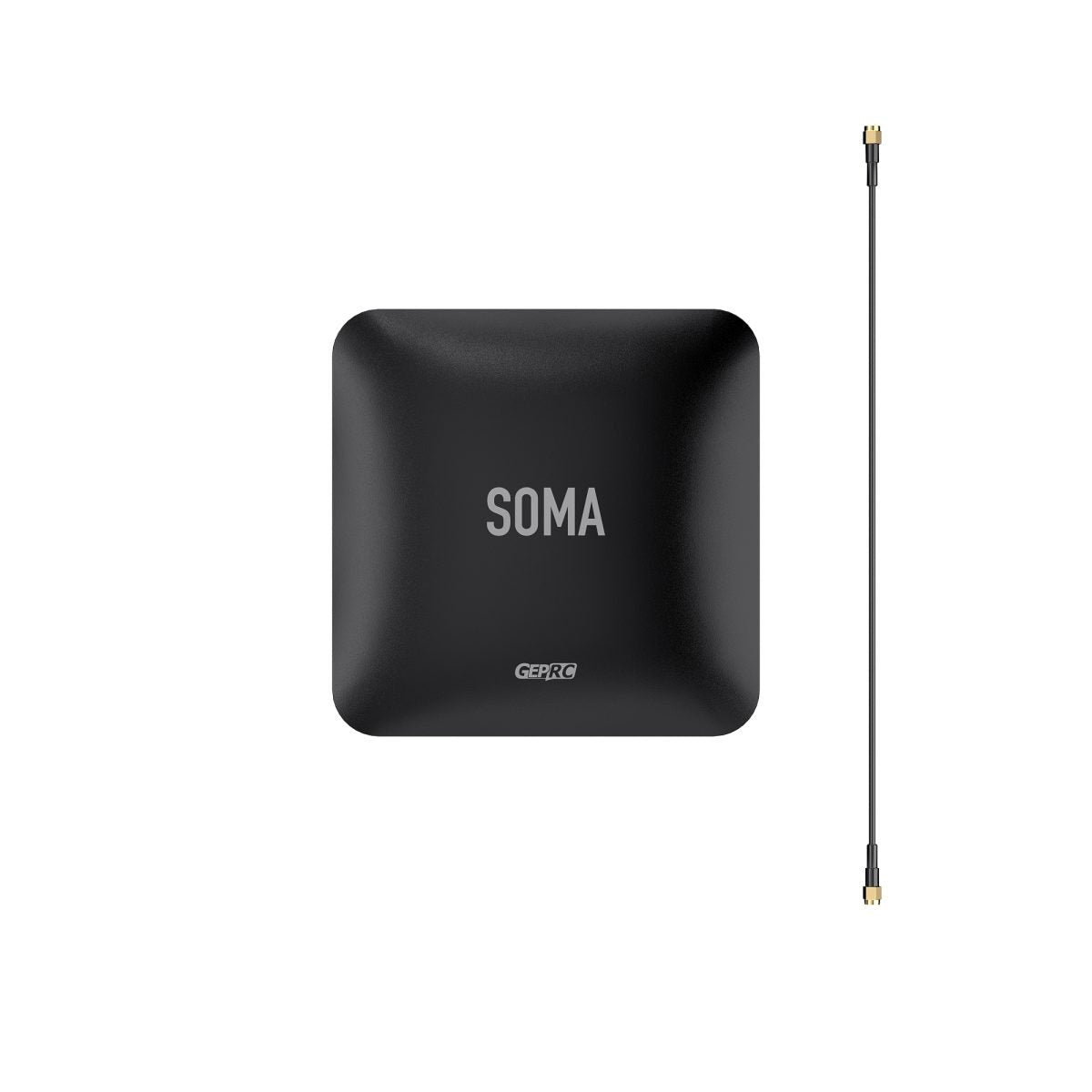

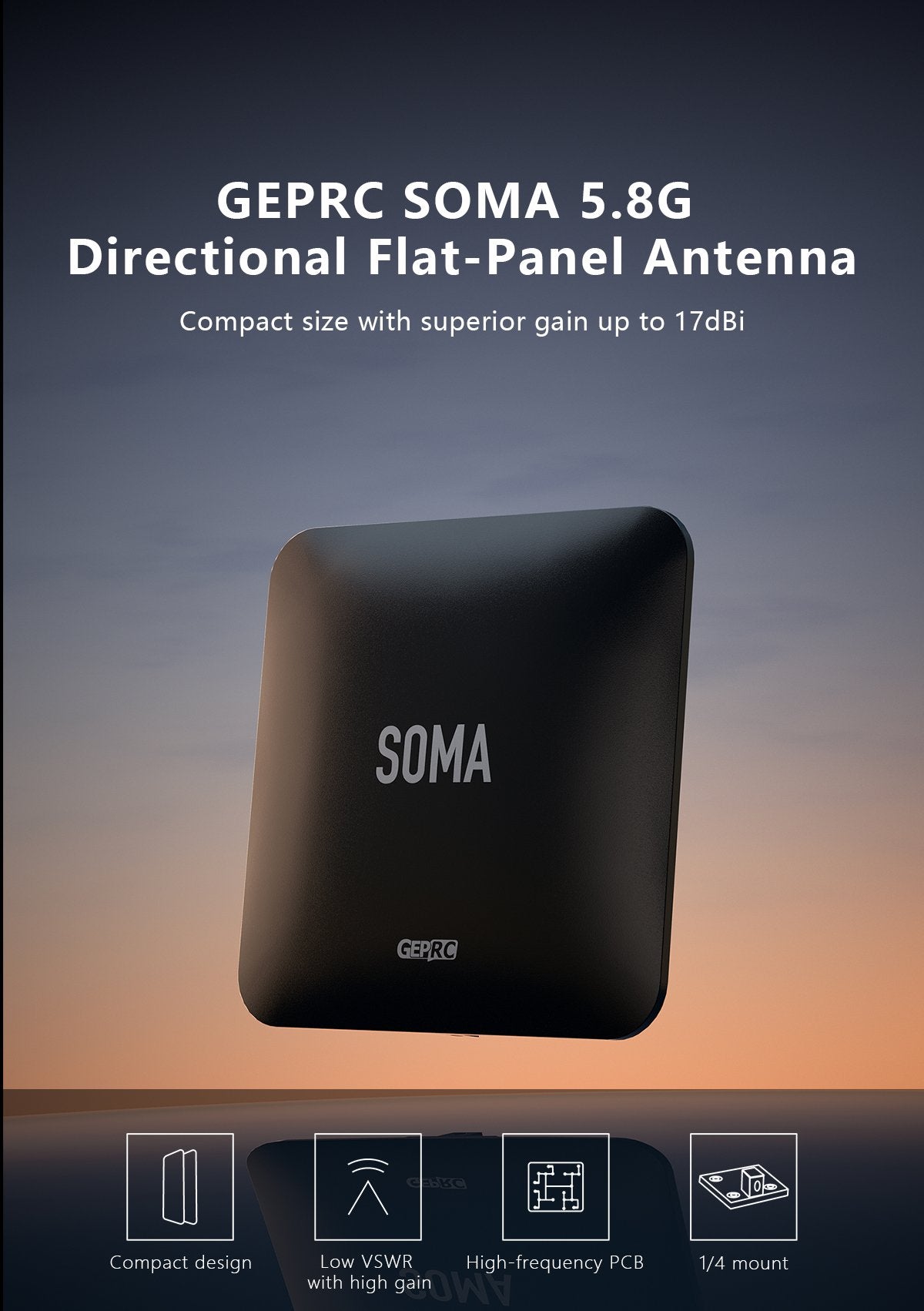

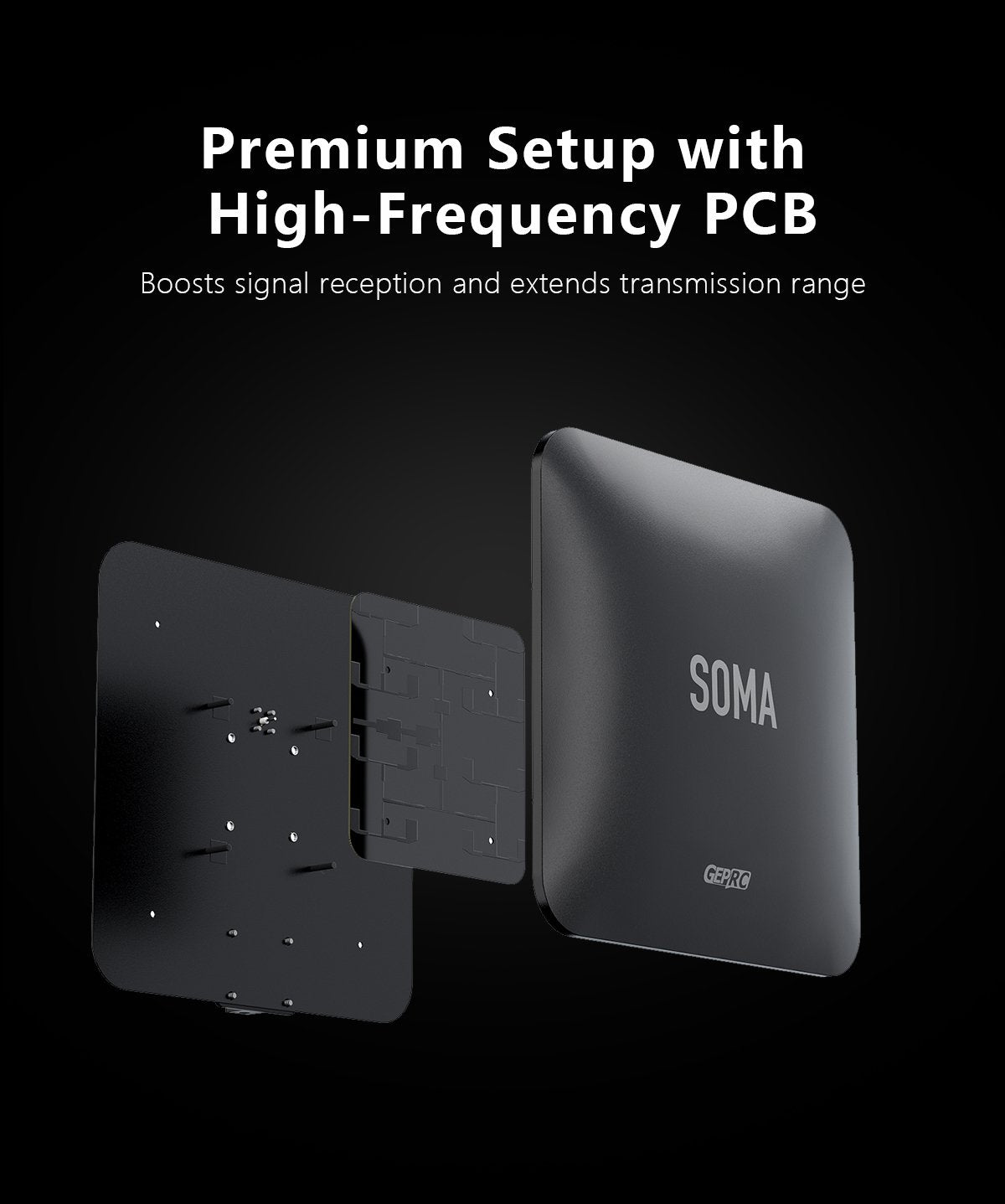

The GEPRC SOMA 5.8G Directional Flat-Panel Antenna features a high-frequency PCB RF solution, offering a high gain of up to 17dBi and a low average VSWR of 1.5, ensuring excellent signal reception.

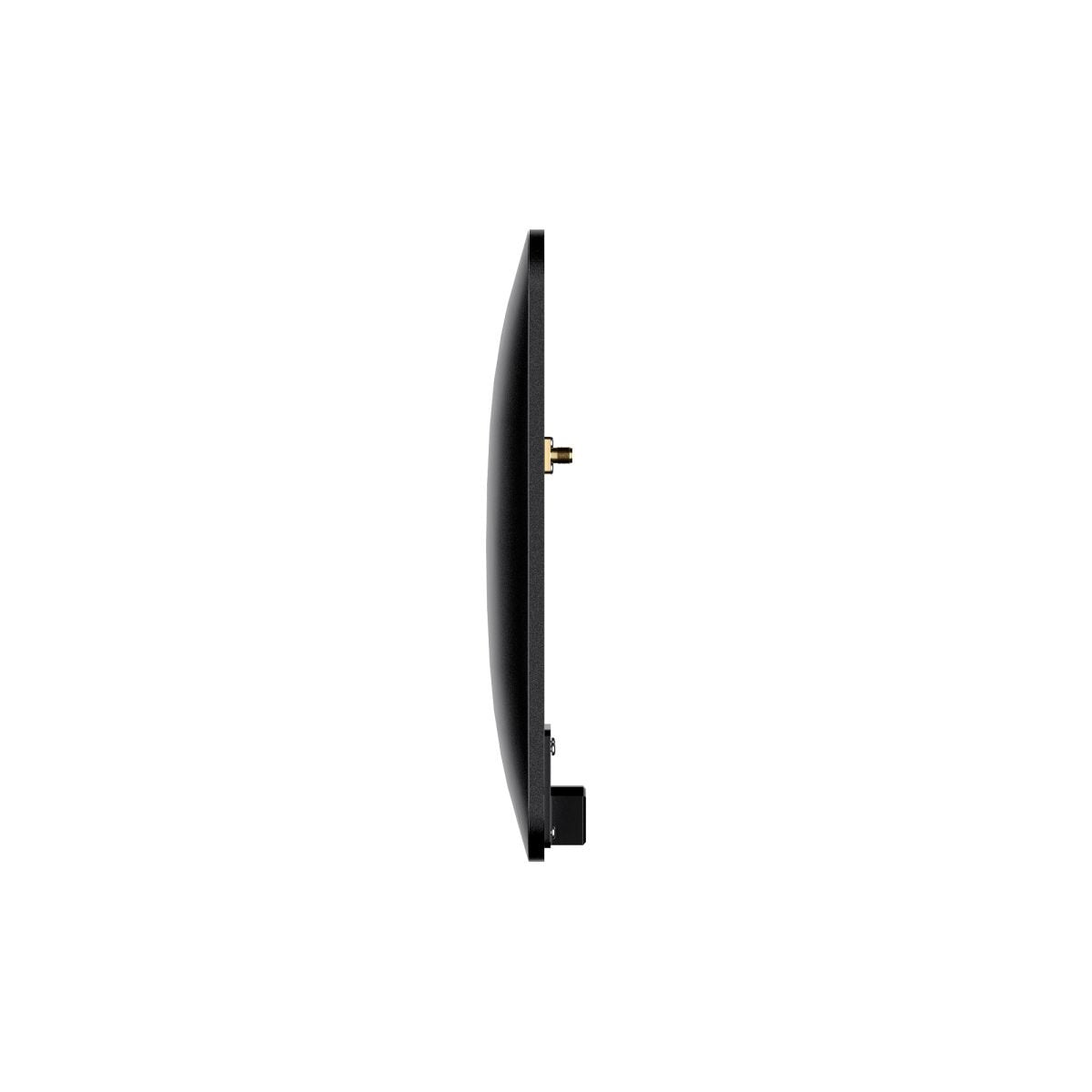

It’s compatible with various brackets and is built with a durable 1/4 aluminum alloy base. The antenna features a sleek, high-tech design, with an integrated injection-molded casing for superior structural integrity
Features

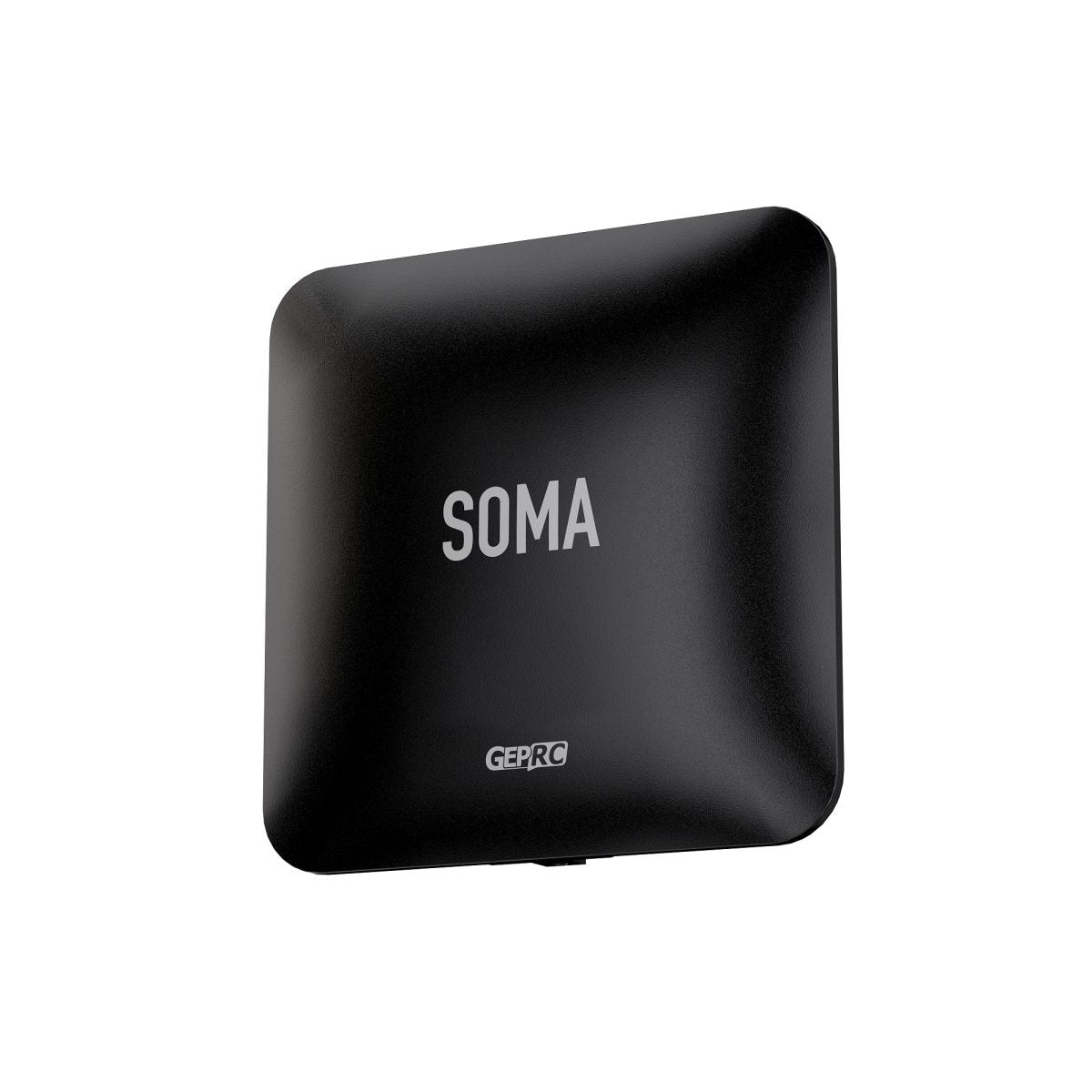

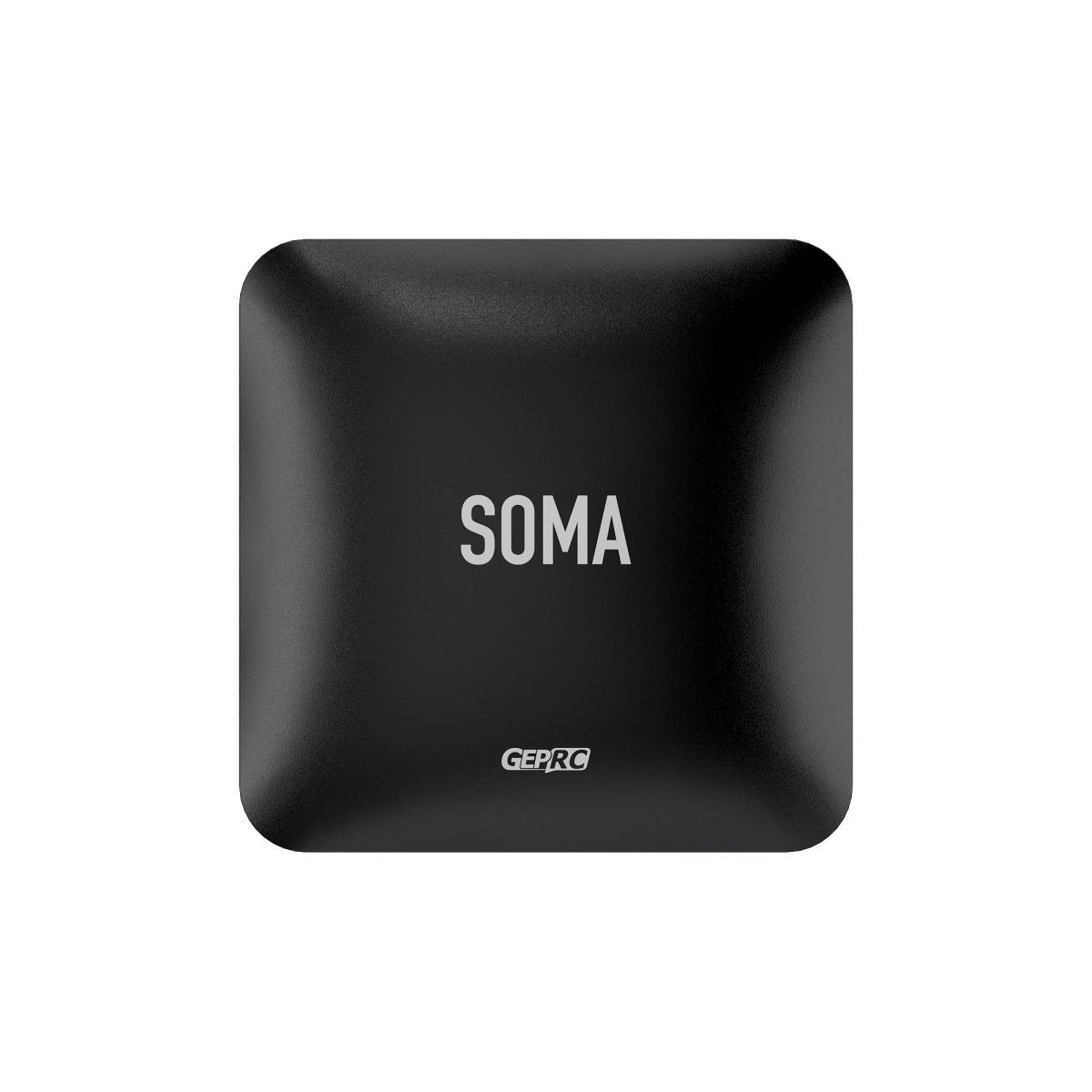

Smooth, ultra-thin design.
Low VSWR, high gain directional antenna, up to 17dBi.

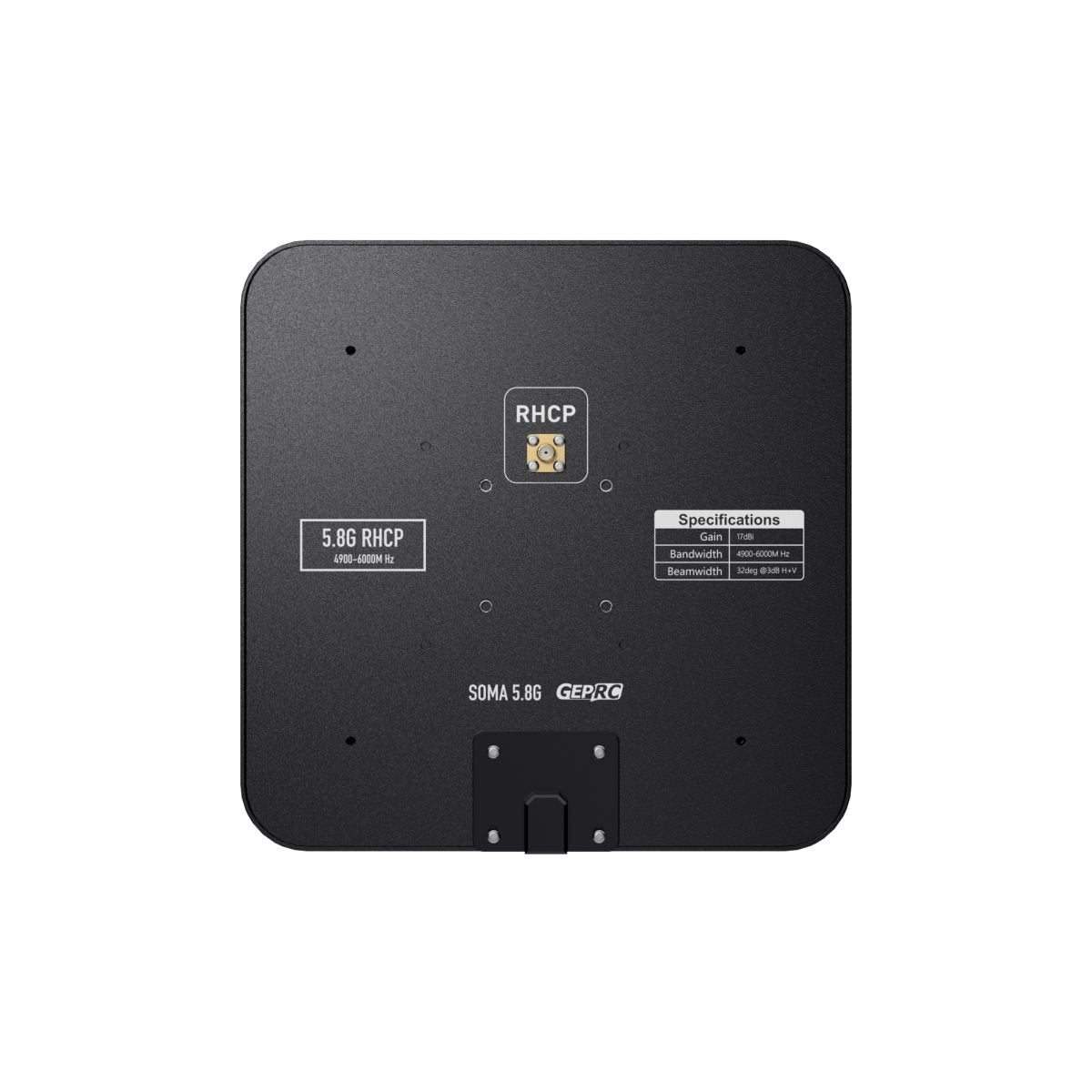

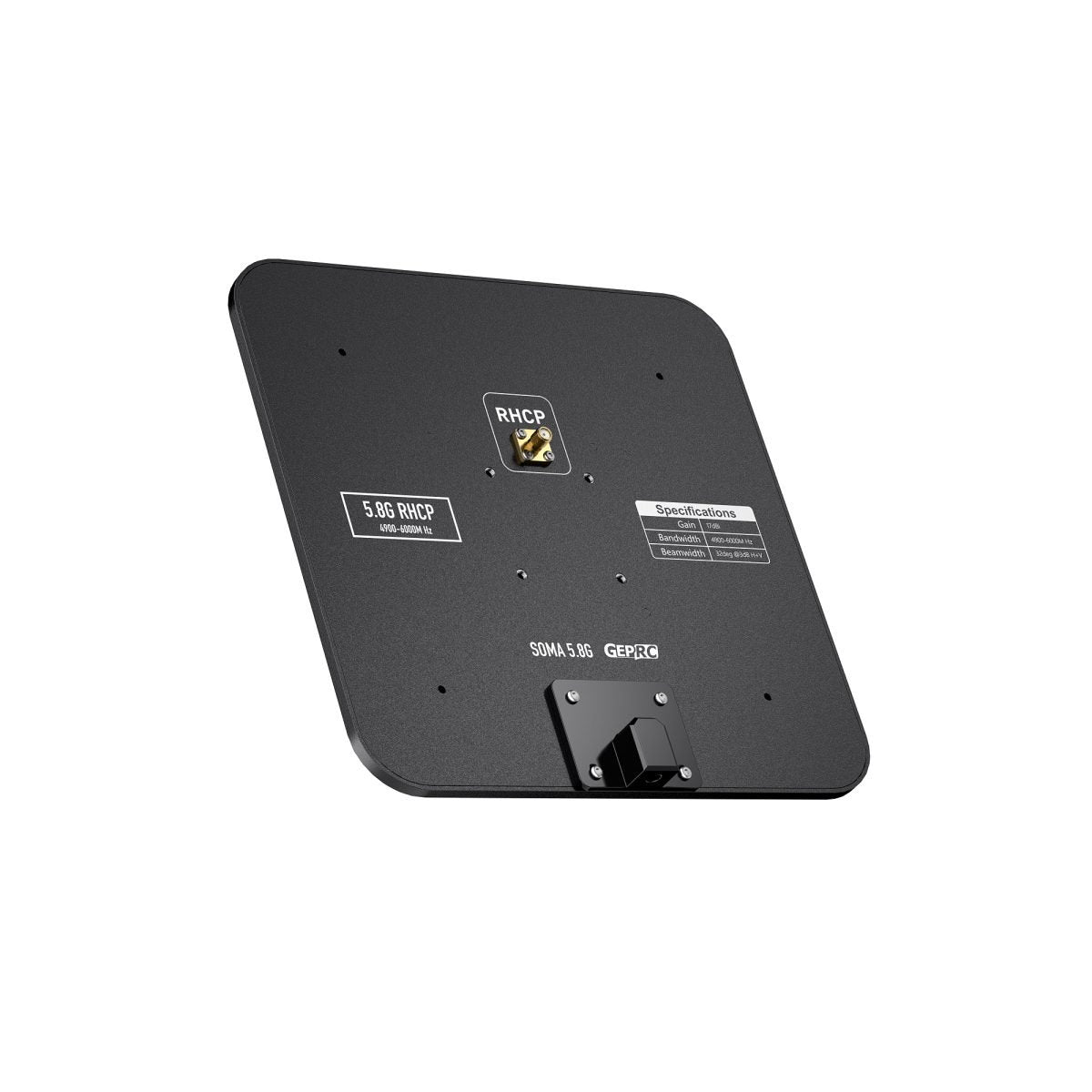

1/4 aluminum alloy base, compatible with various brackets.
High-quality SMA connector for lower impedance and better transmission efficiency.

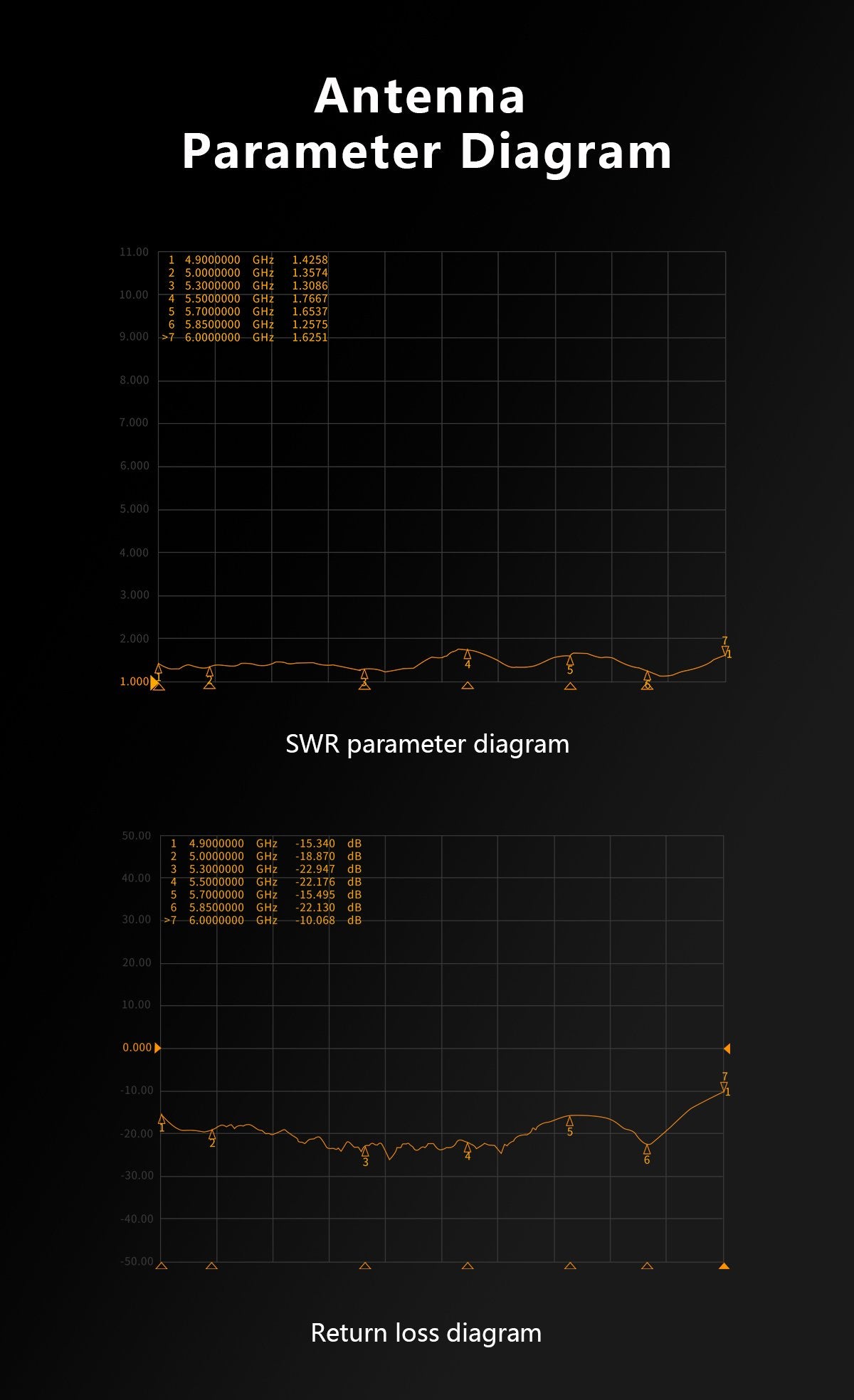

Each antenna undergoes meticulous testing with a spectrum analyzer to ensure VSWR compliance with industry standards

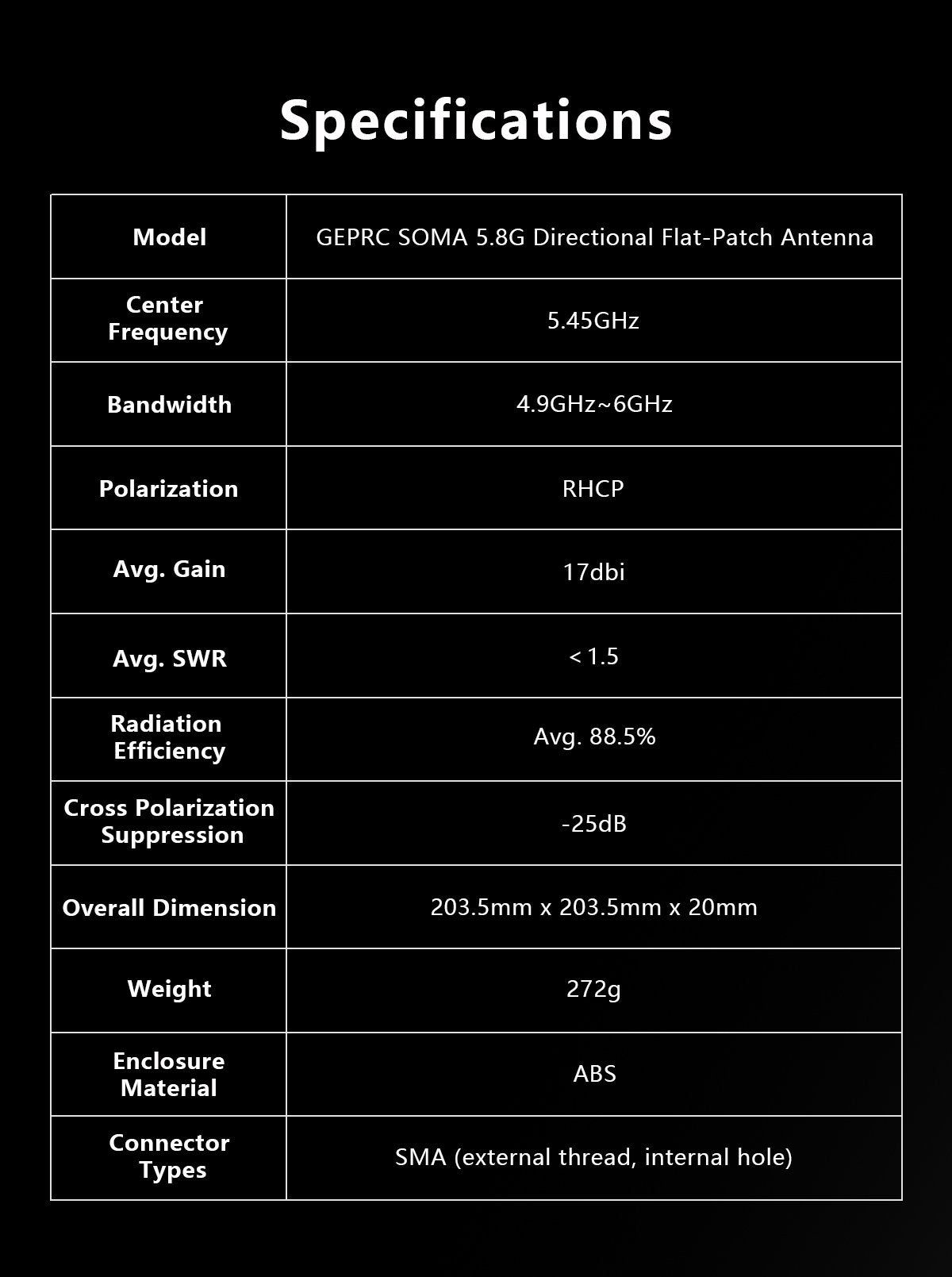

Specifications
Model: GEPRC SOMA 5.8G Directional Patch Antenna
Center Frequency: 5.45GHz
Bandwidth: 4.9GHz~6GHz
Polarization: RHCP
Gain: 17dBi
Axial Ratio: ≤3

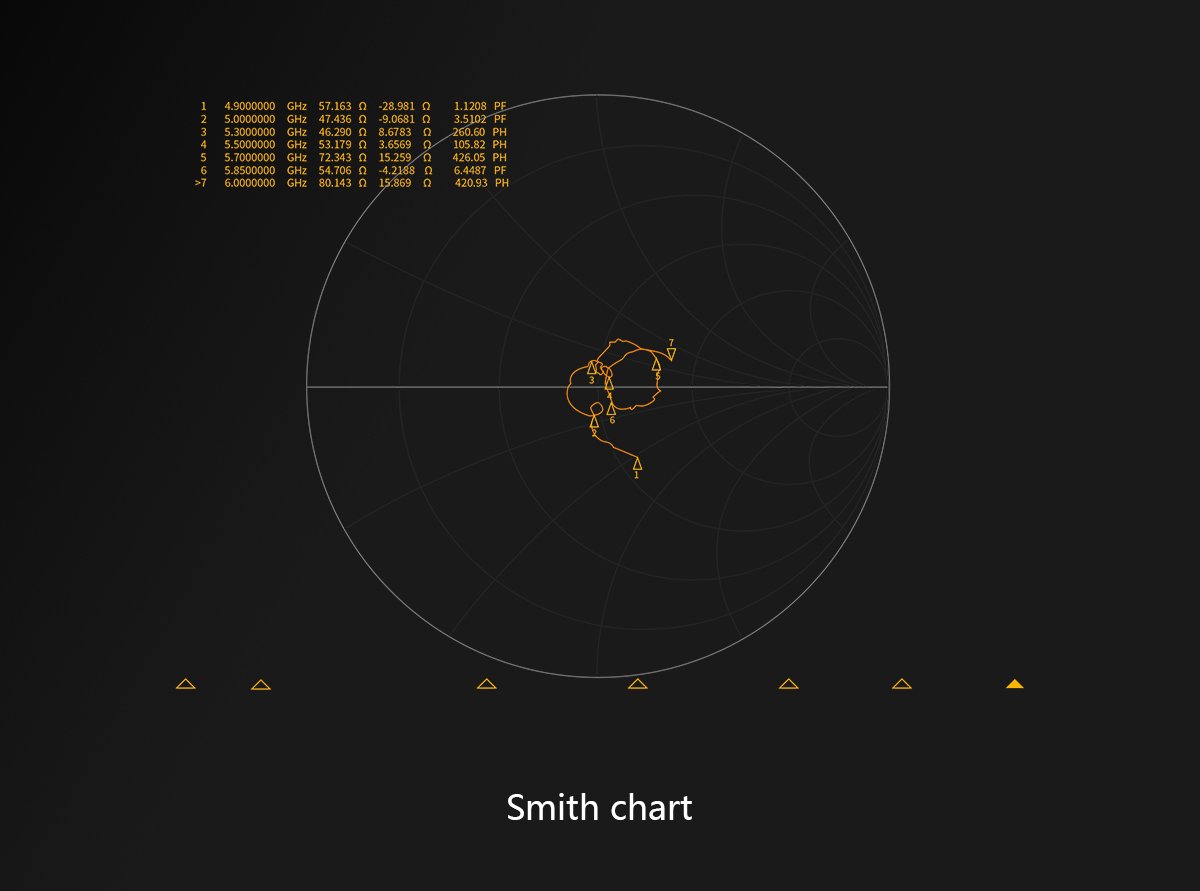

SWR：≤1.5
Radiation Efficiency: 88.5%
Cross polarization suppression: -25dB

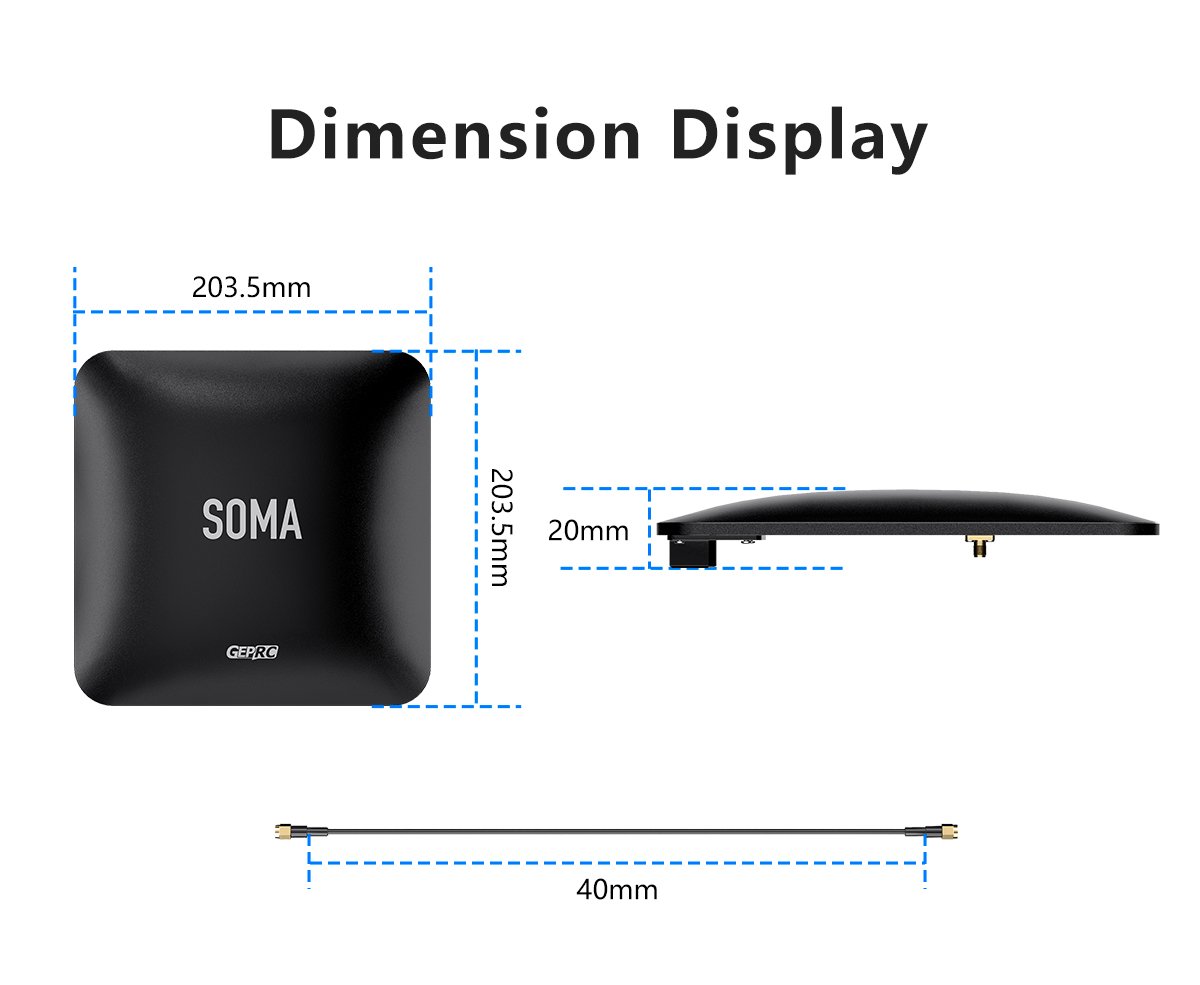

Overall Dimension: 203.5mm x 203.5mm x 20mm
Antenna Weight: 272g
Enclosure Material: ABS
Connector Type: SMA (external thread, internal hole）
