Summary

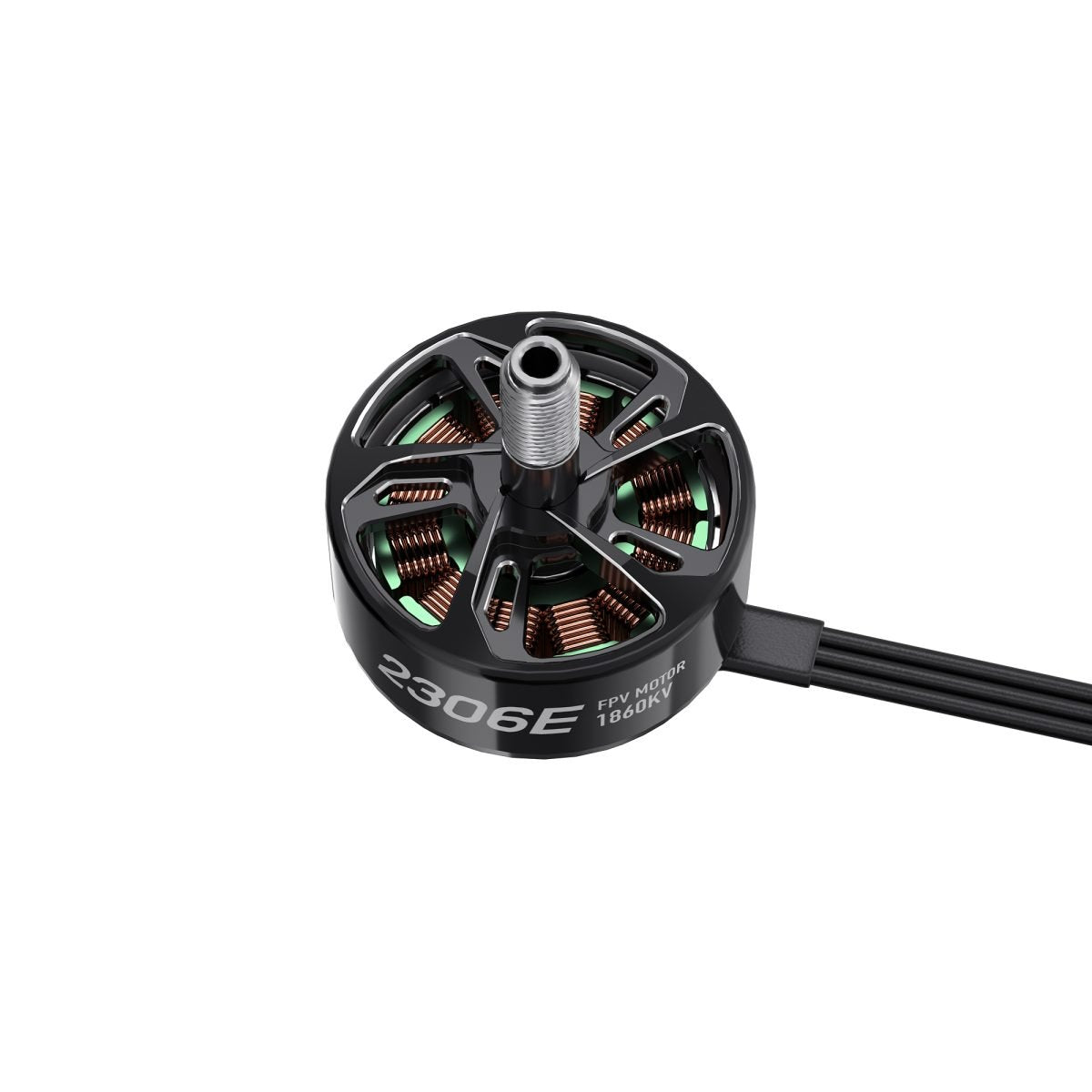

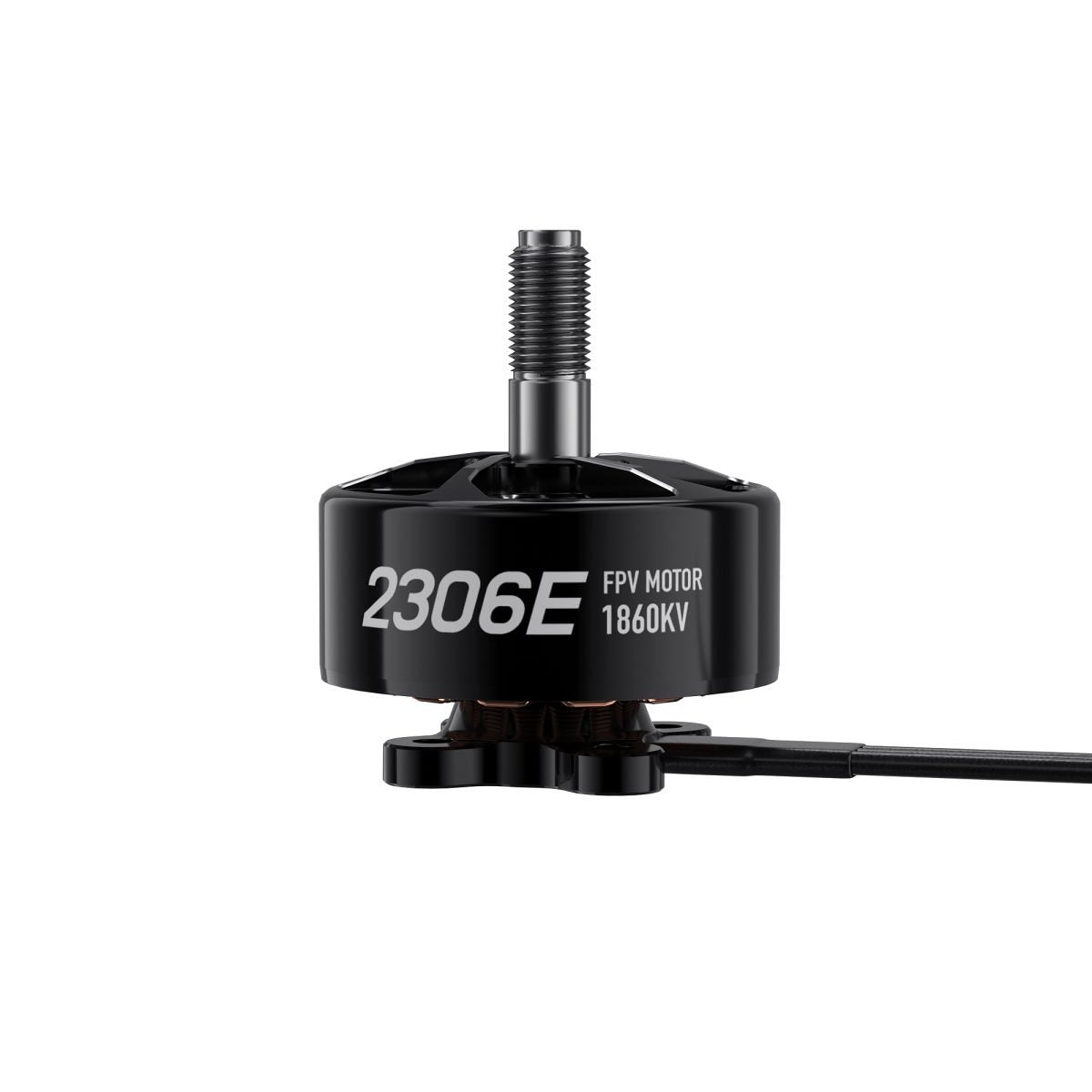

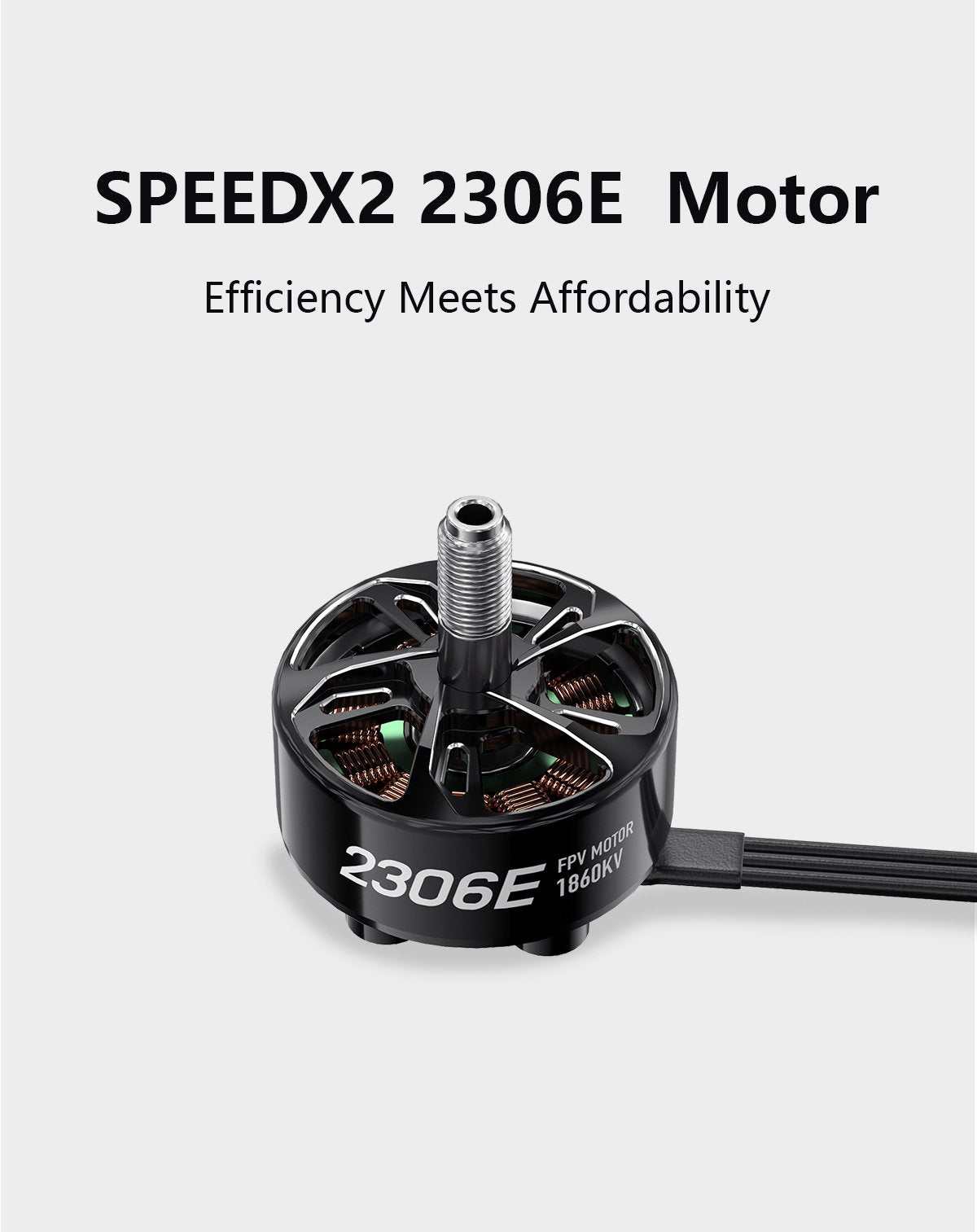

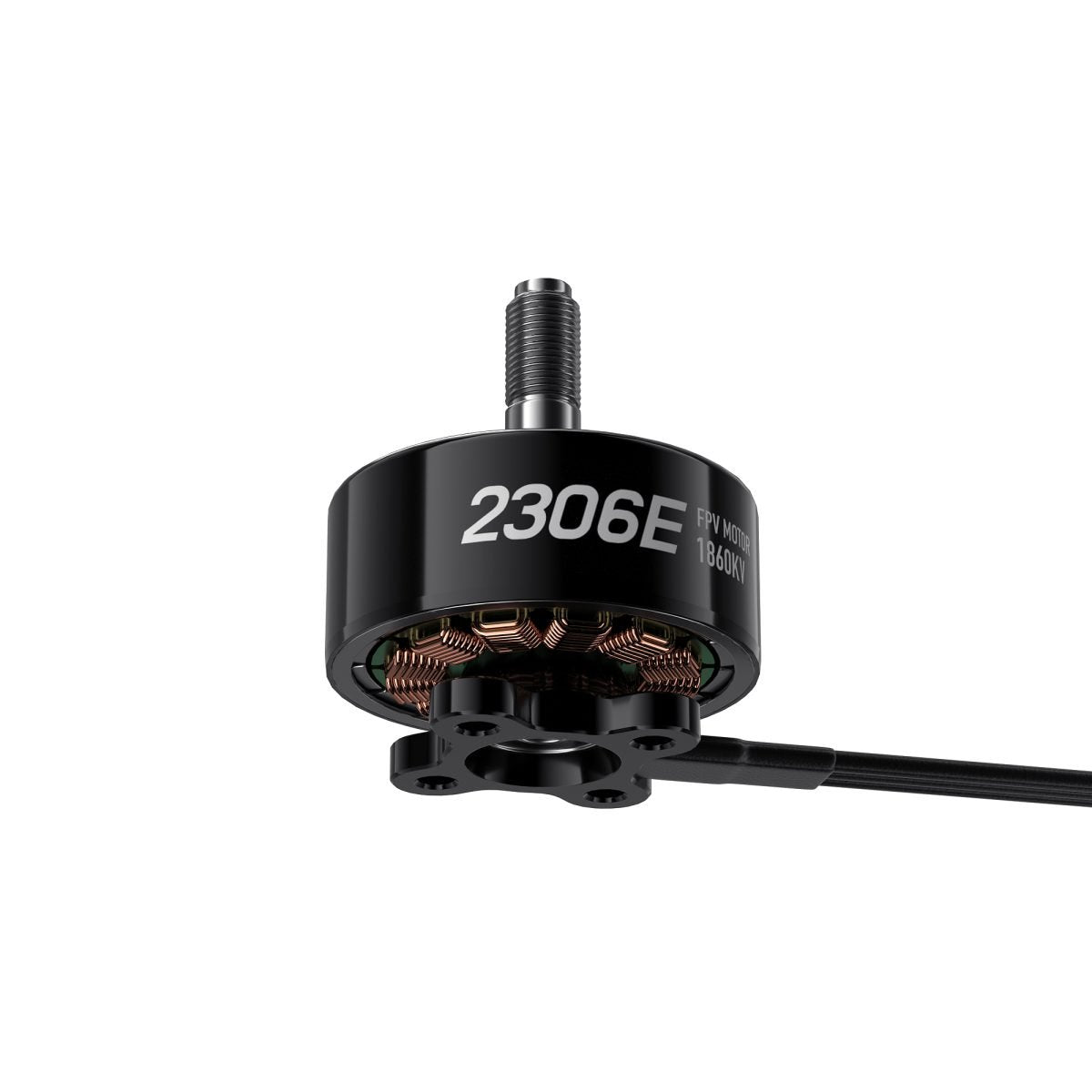

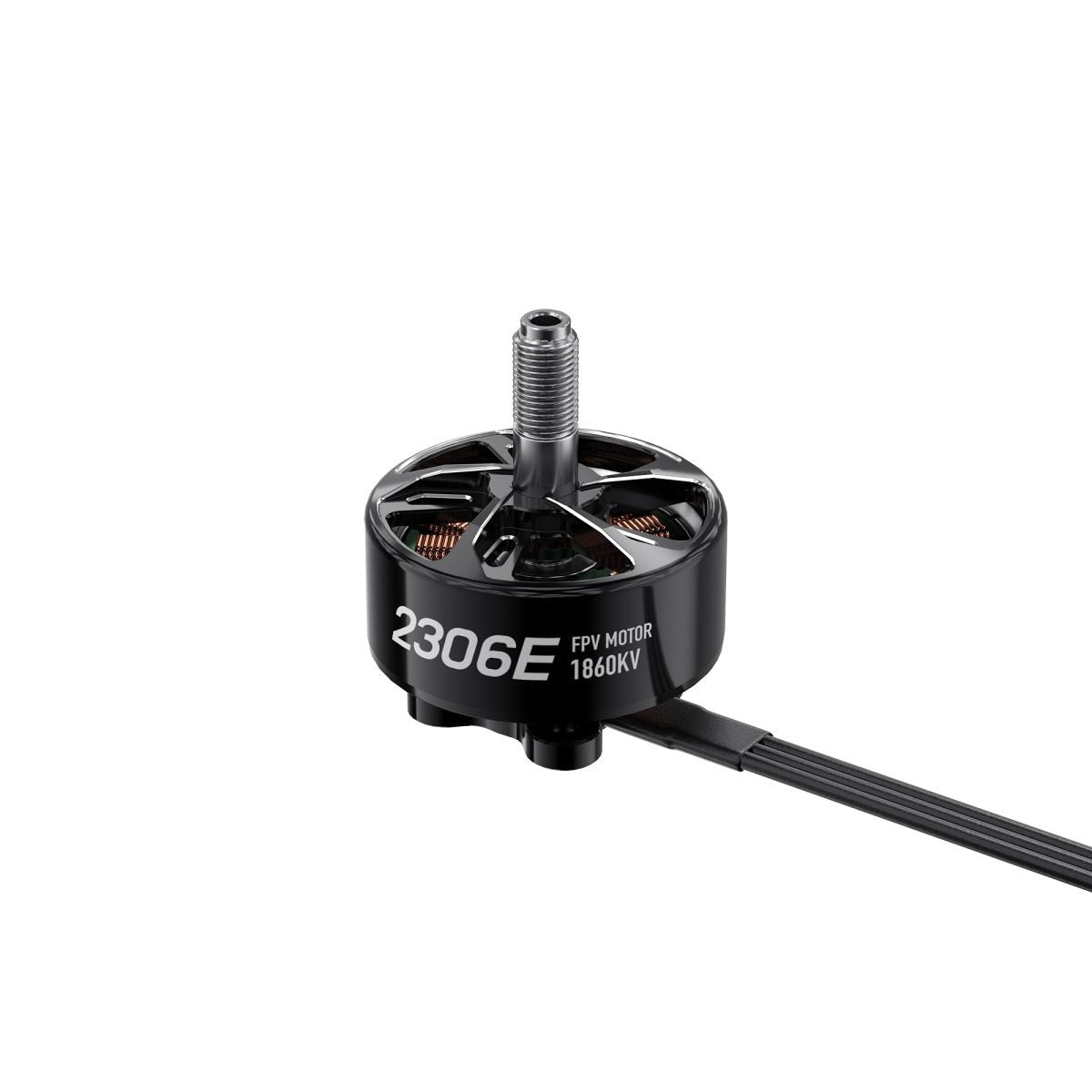

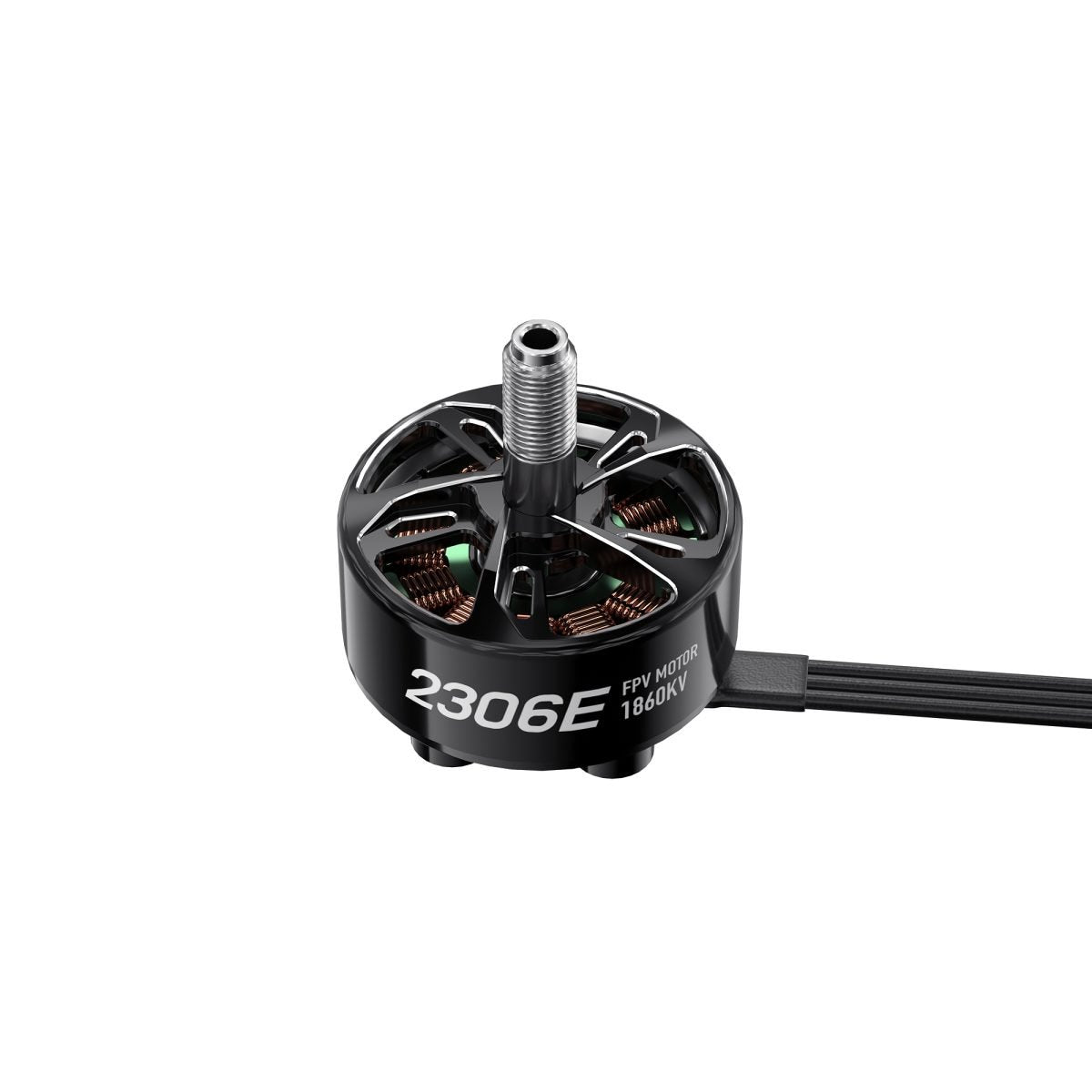

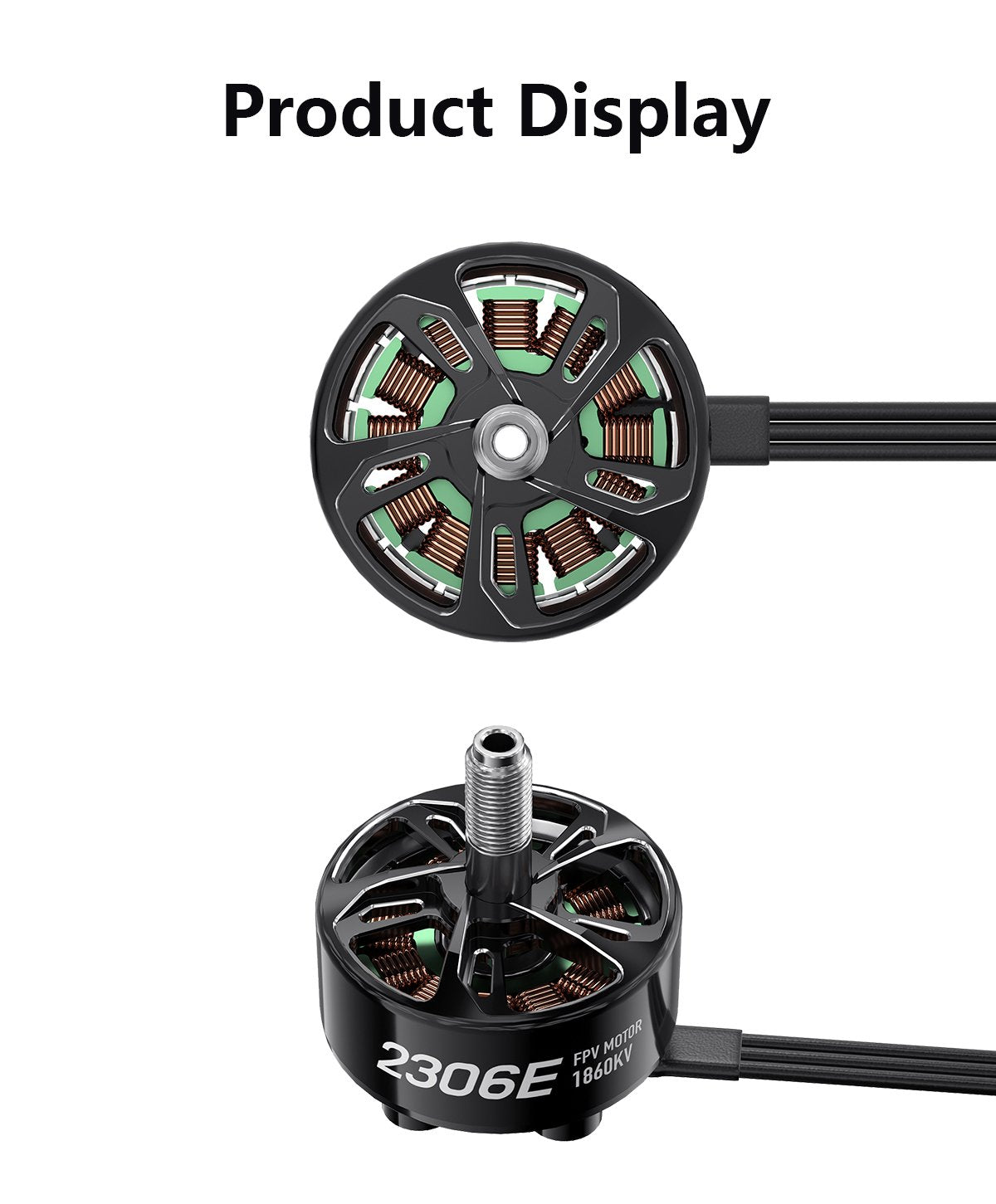

The SPEEDX2 2306E motor features a sleek all-black design with blade-like protrusions that securely lock the propellers. Its extensive cutout structure enhances heat dissipation efficiency. Crafted from aerospace-grade aluminum using precision CNC machining, it is both lightweight and durable.
Feature
Reduced rotor-stator gap ensures rapid response for seamless freestyle flying.

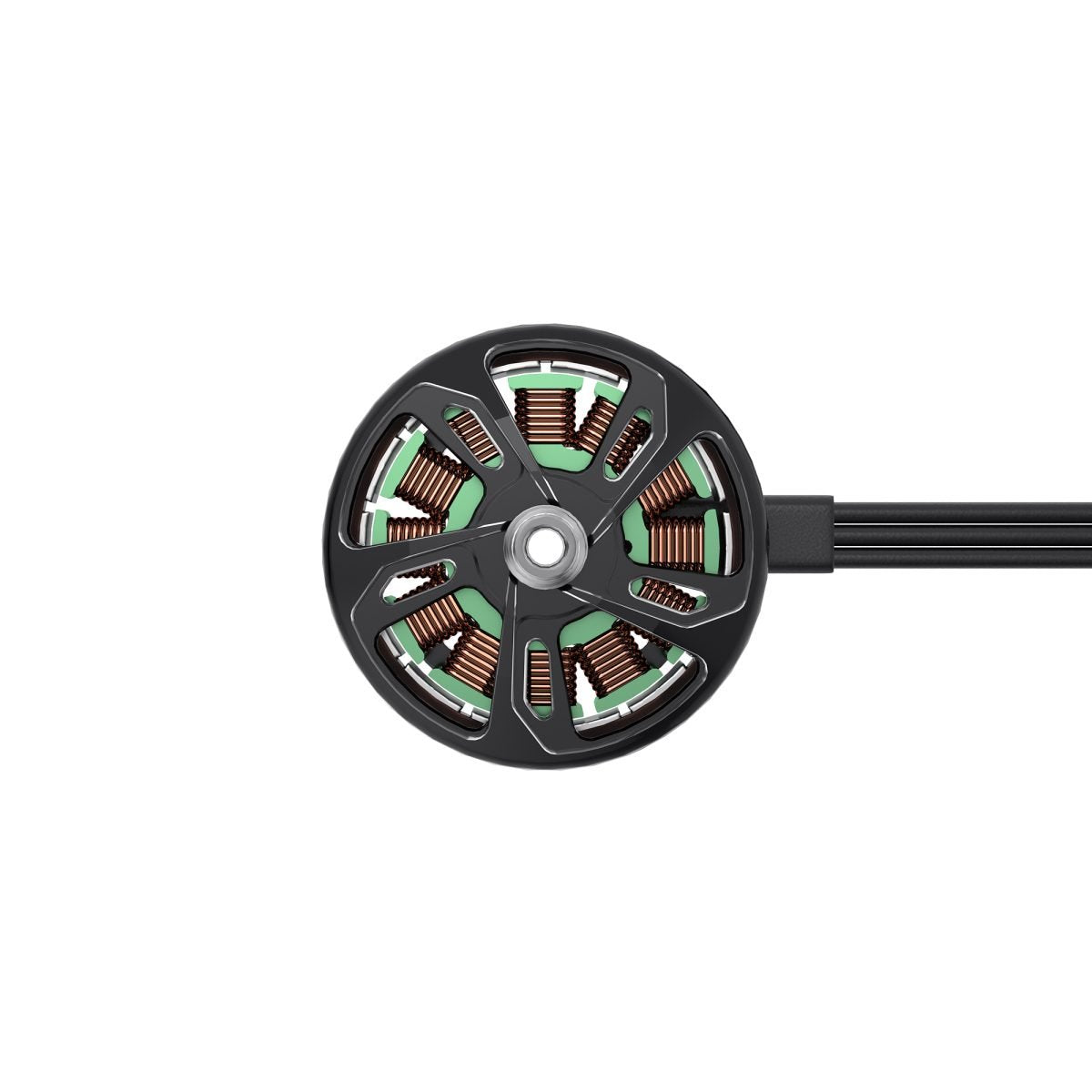

The fresh all-black glossy design with extensive cutouts enhances heat dissipation for better performance.
Crafted from 7075 aerospace-grade aluminum with precision CNC machining for a lightweight design.

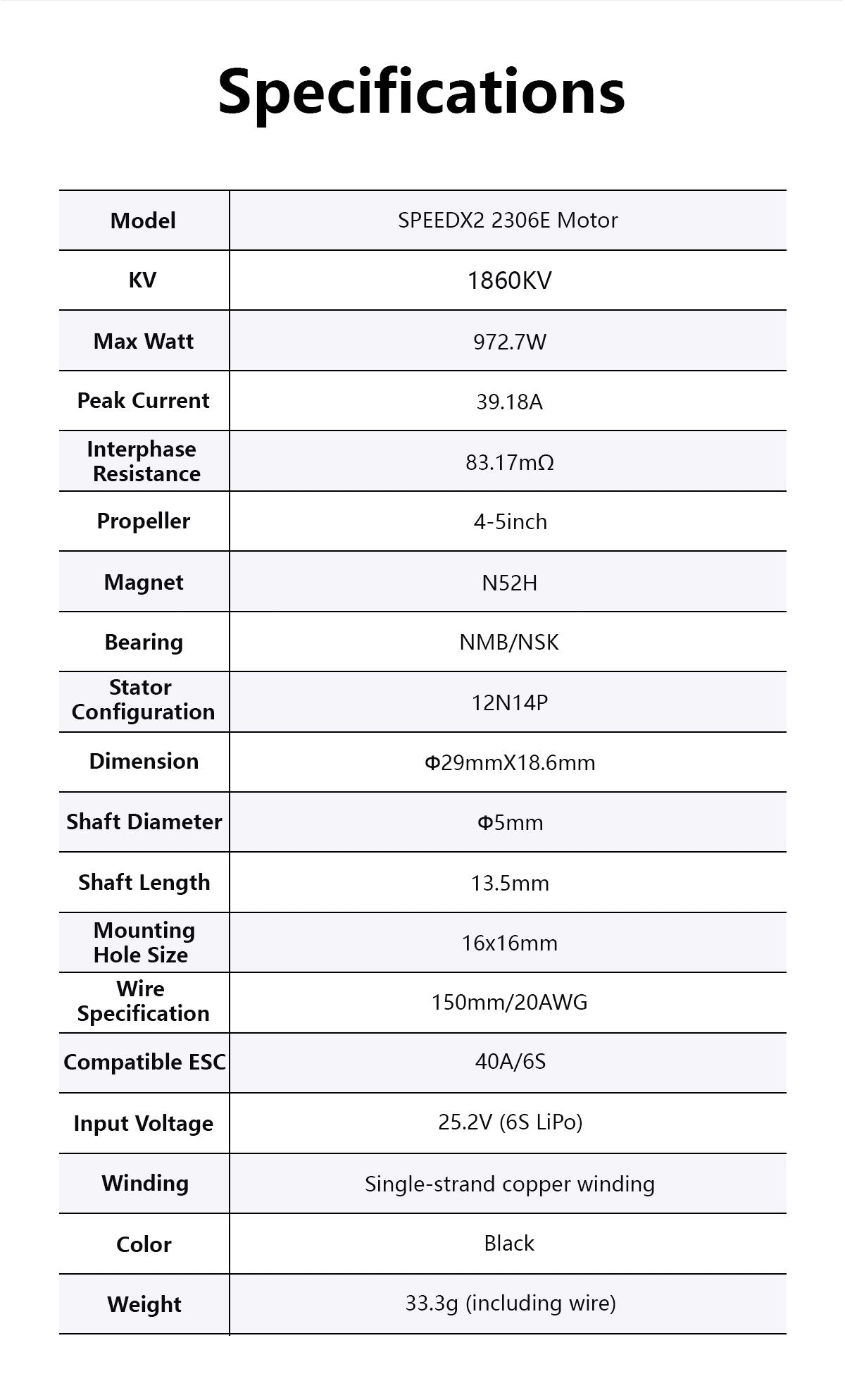

Specifications
Model: SPEEDX2 2306E Motor
KV: 1860

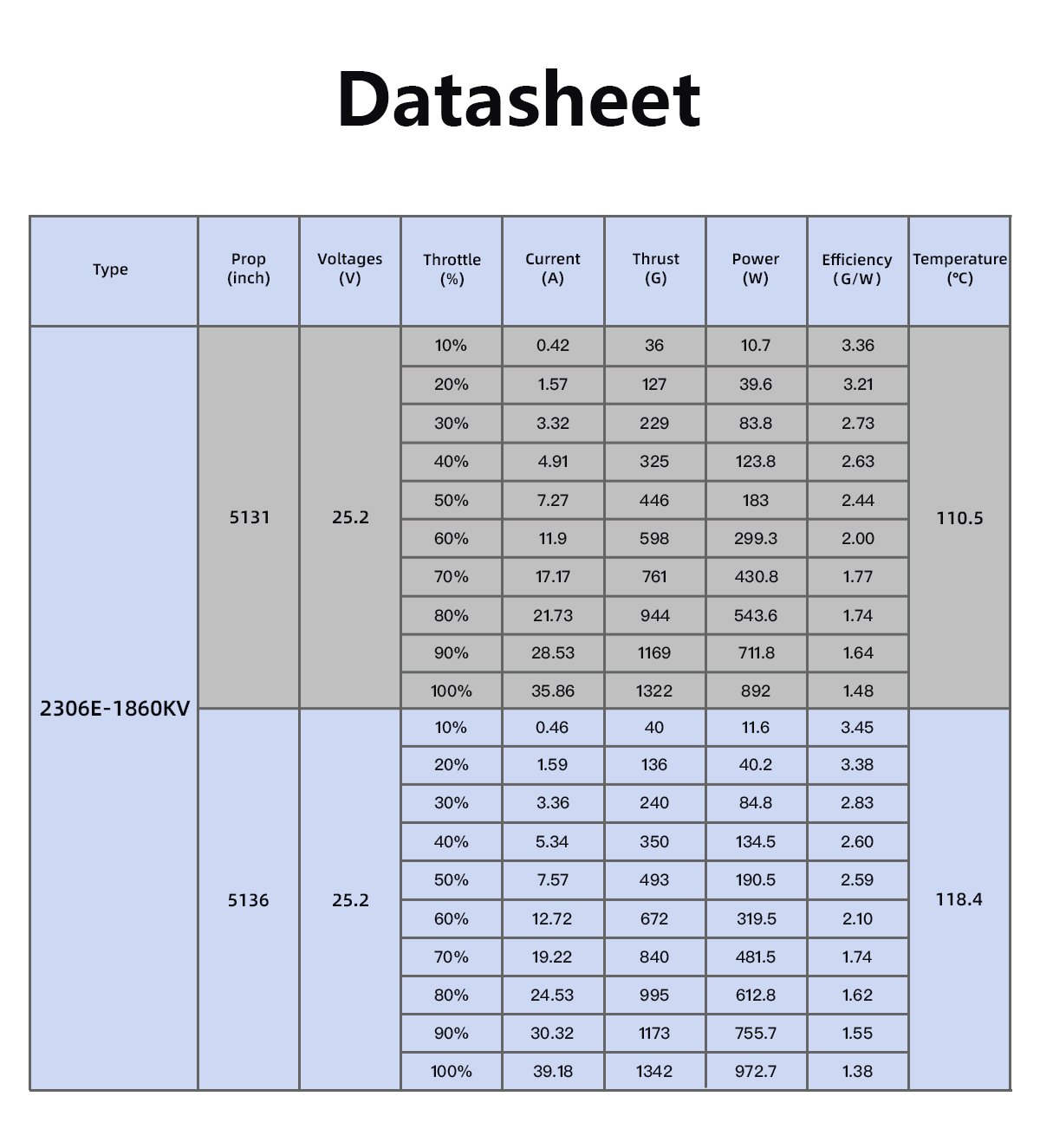

Max Watt: 972.7W
Peak Current: 39.18A
Interphase Resistance: 83.17mΩ
Propeller: 4-5inch
Magnet: N52H
Bearing: NMB/NSK
Stator Configuration: 12N14P

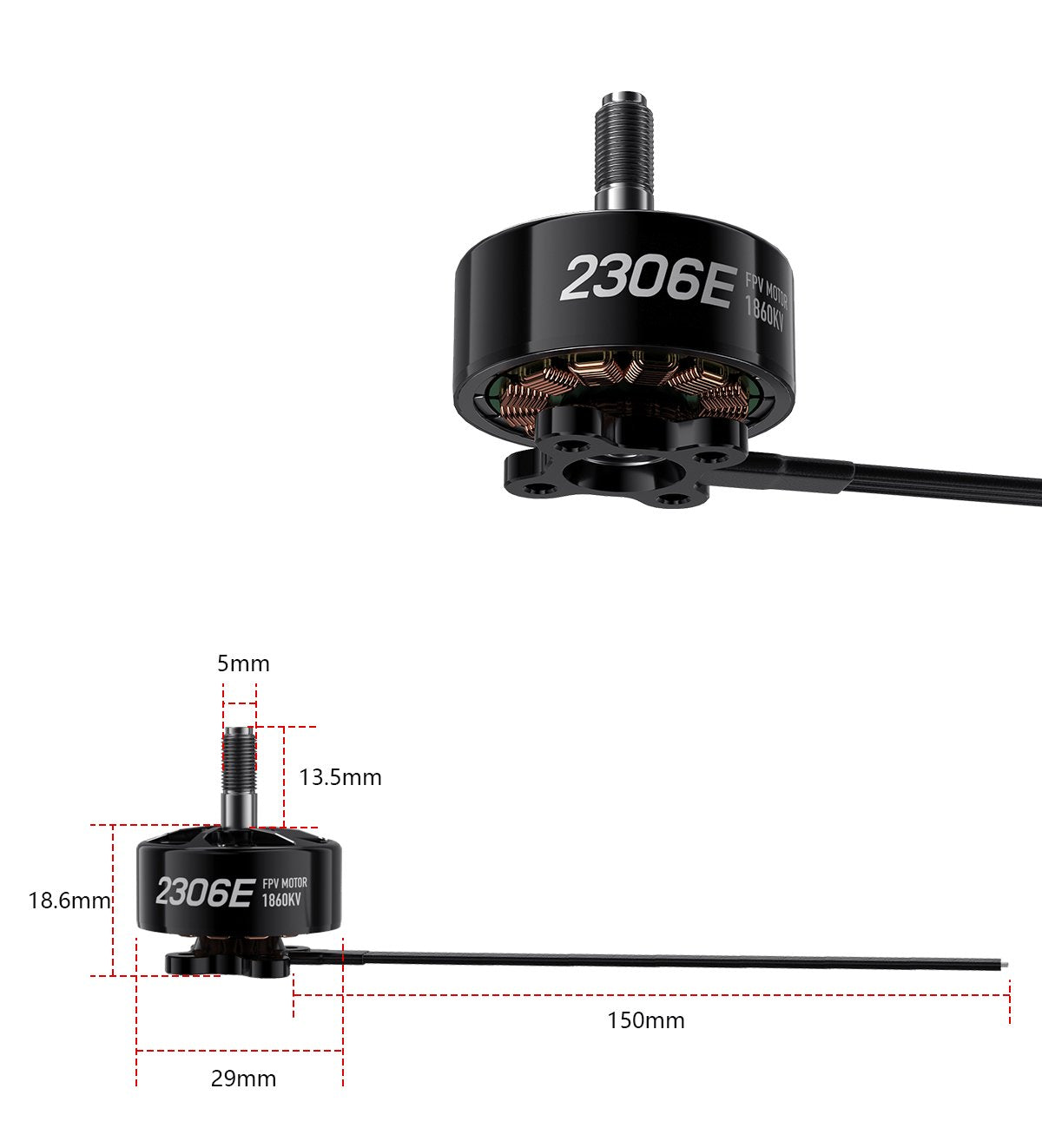

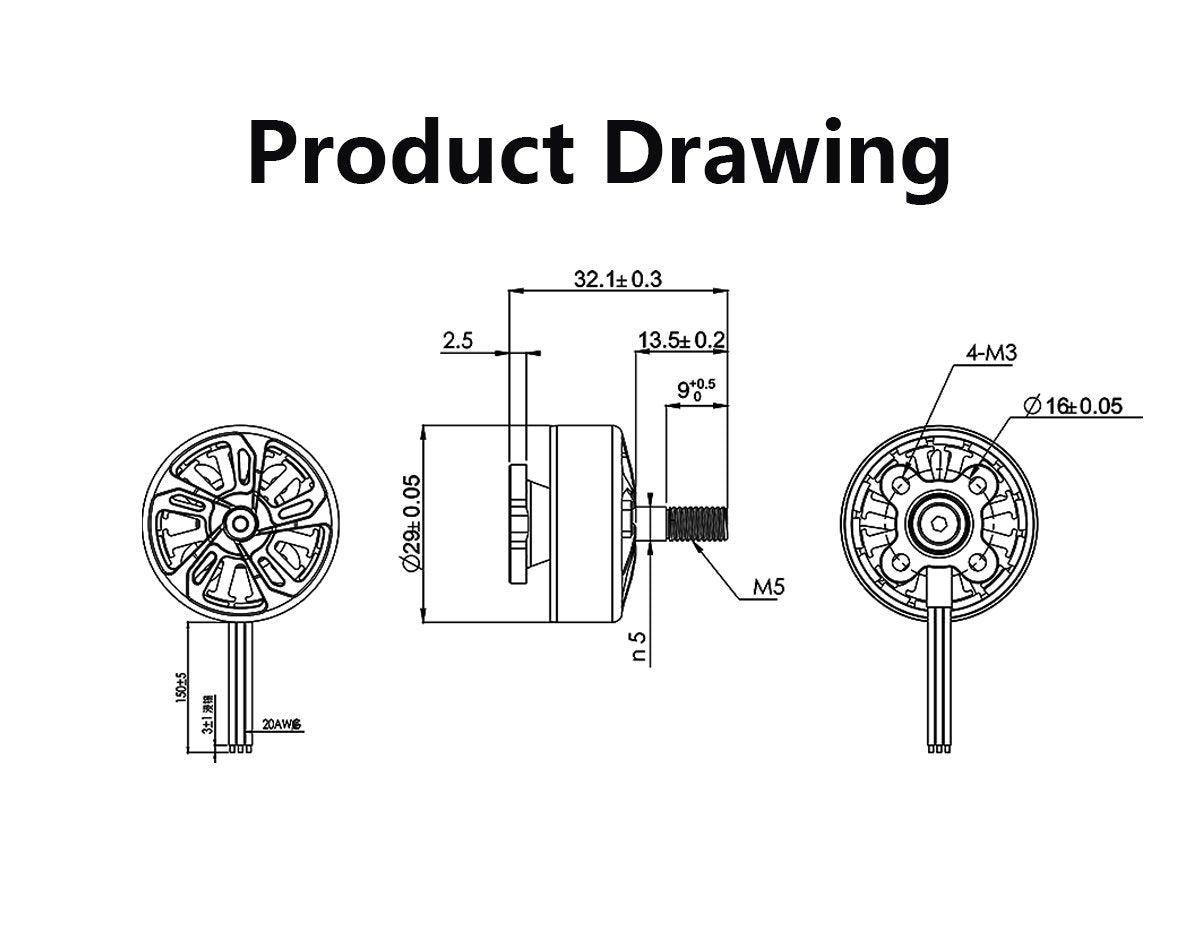

Dimension: 29*18.6mm
Shaft Diameter: 5mm
Shaft Length: 13.5mm
Mounting Hole Size：16*16mm

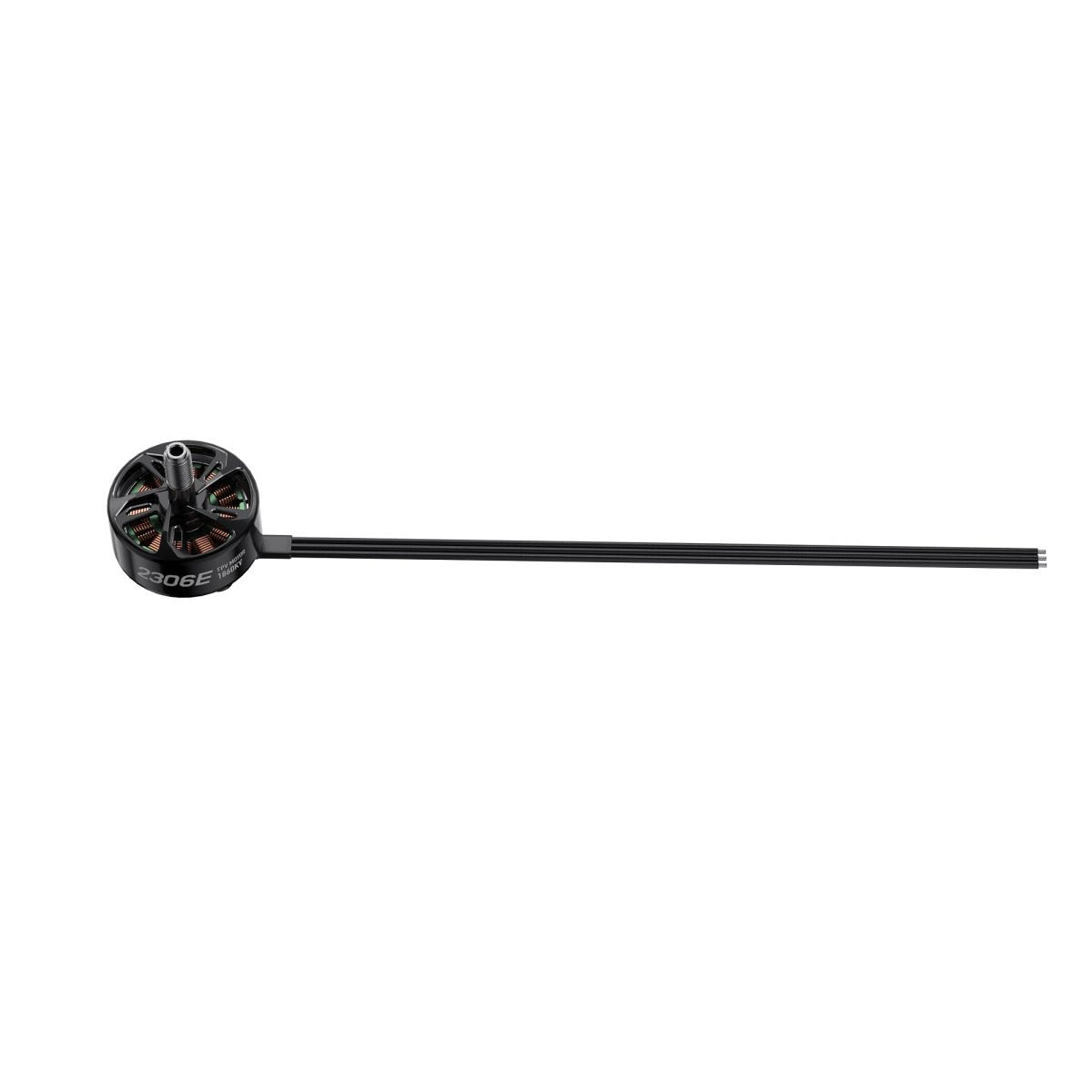

Wire Specification: 20AWG/150mm
Compatible ESC: 40A/6S
Input Voltage: 6S
Winding: Single-strand copper winding
Color: Black

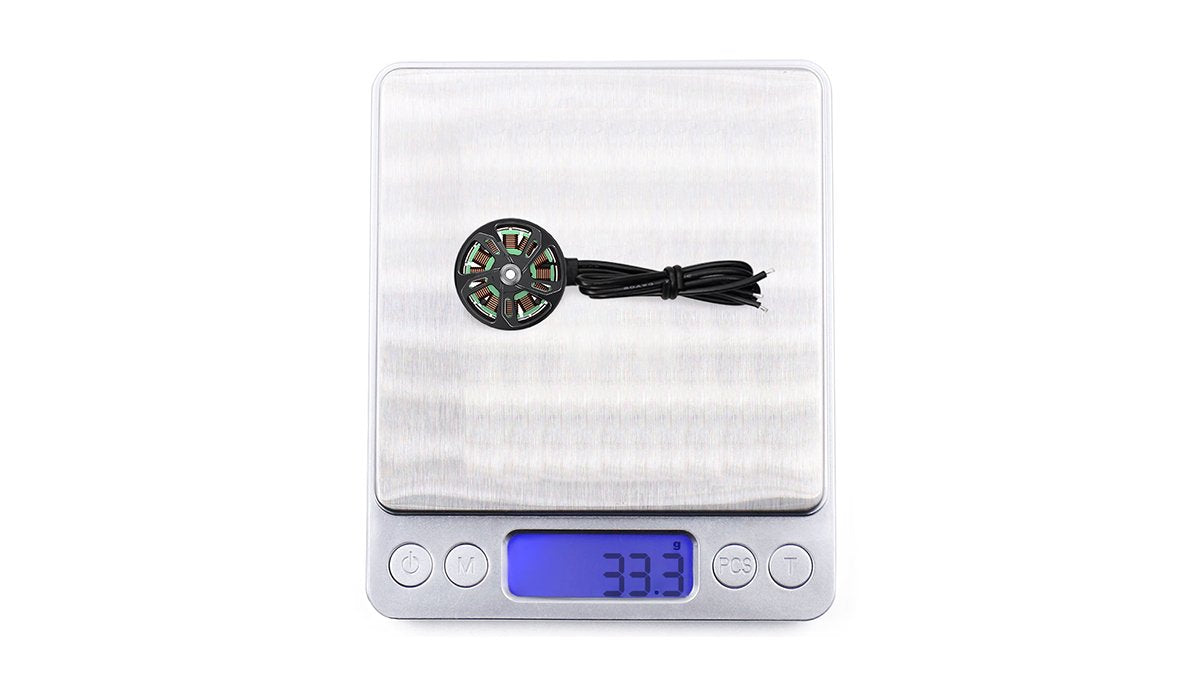

Weight：33.3g (including wire)
Compatible Models: Suitable for 4inch-5inch racing FPV quads
