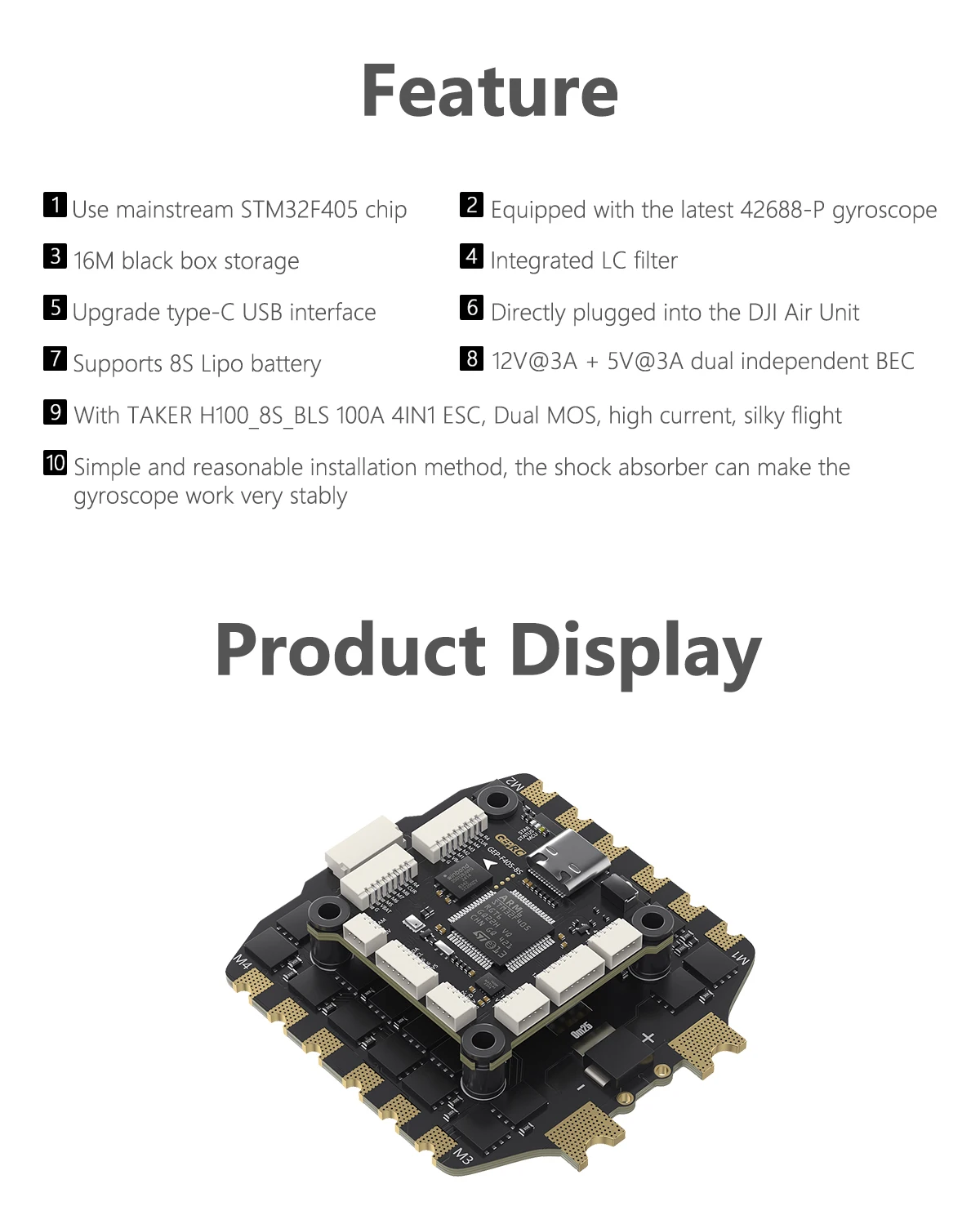

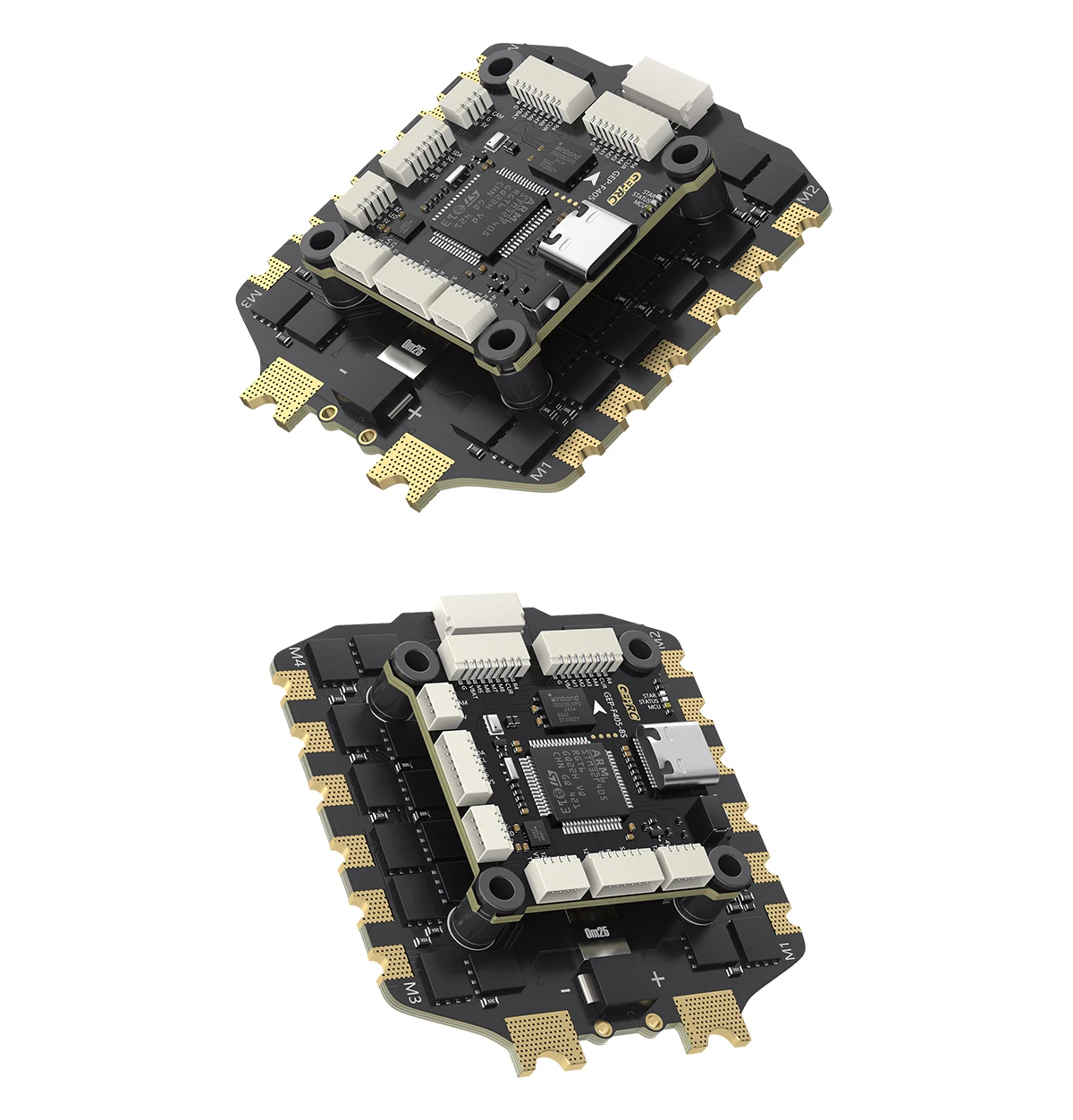

Features
Use mainstream STM32F405 chip
Equipped with the latest 42688-P gyroscope
16M black box storage
Integrated LC filter
Upgrade type-C USB interface
Directly plugged into the DJI Air Unit
With TAKER H100_8S_BLS 100A 4IN1 ESC, Dual MOS, high current, silky flight
Supports 8S Lipo battery

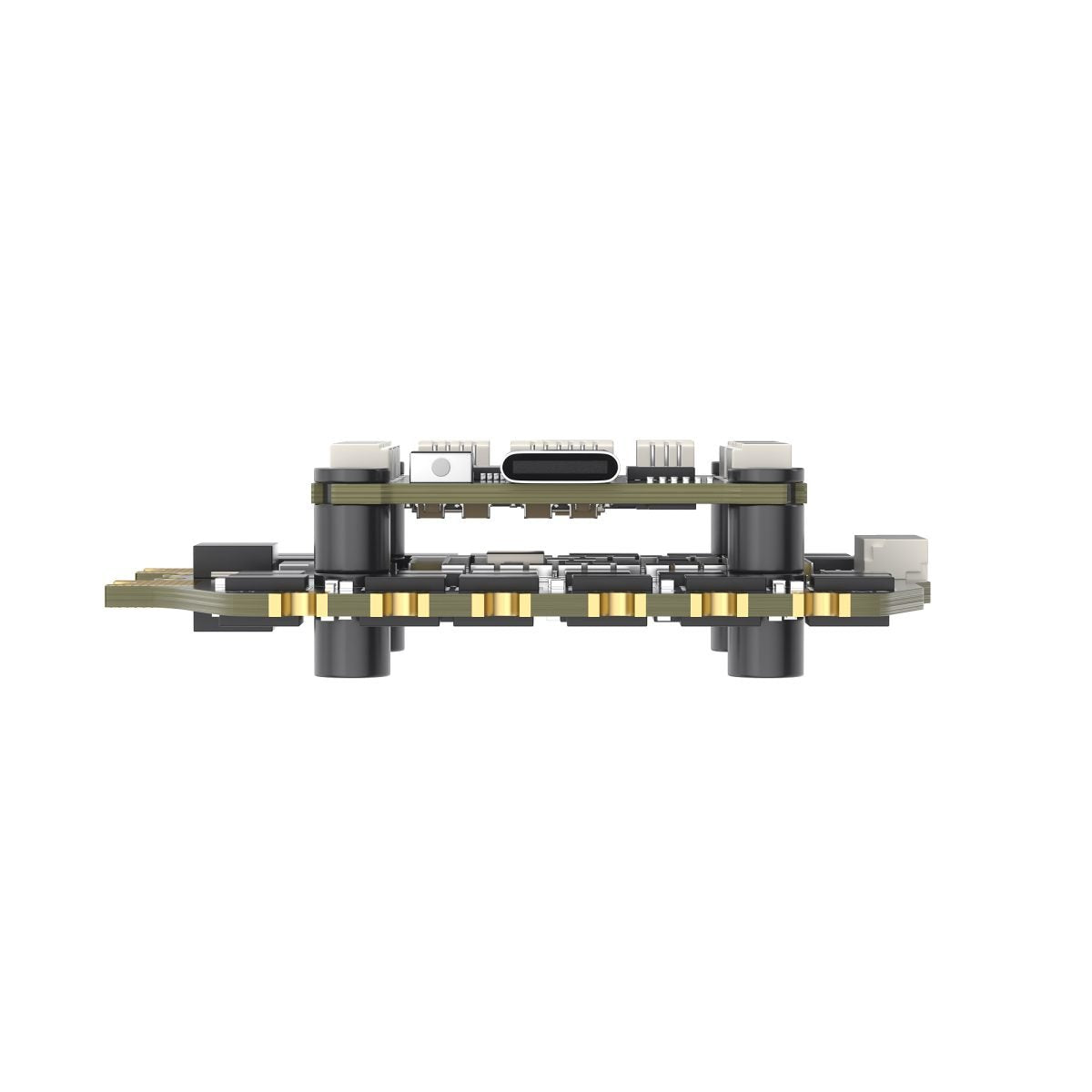

Simple and reasonable installation method, the shock absorber can make the gyroscope work very stably
12V@3A + 5V@3A dual independent BEC

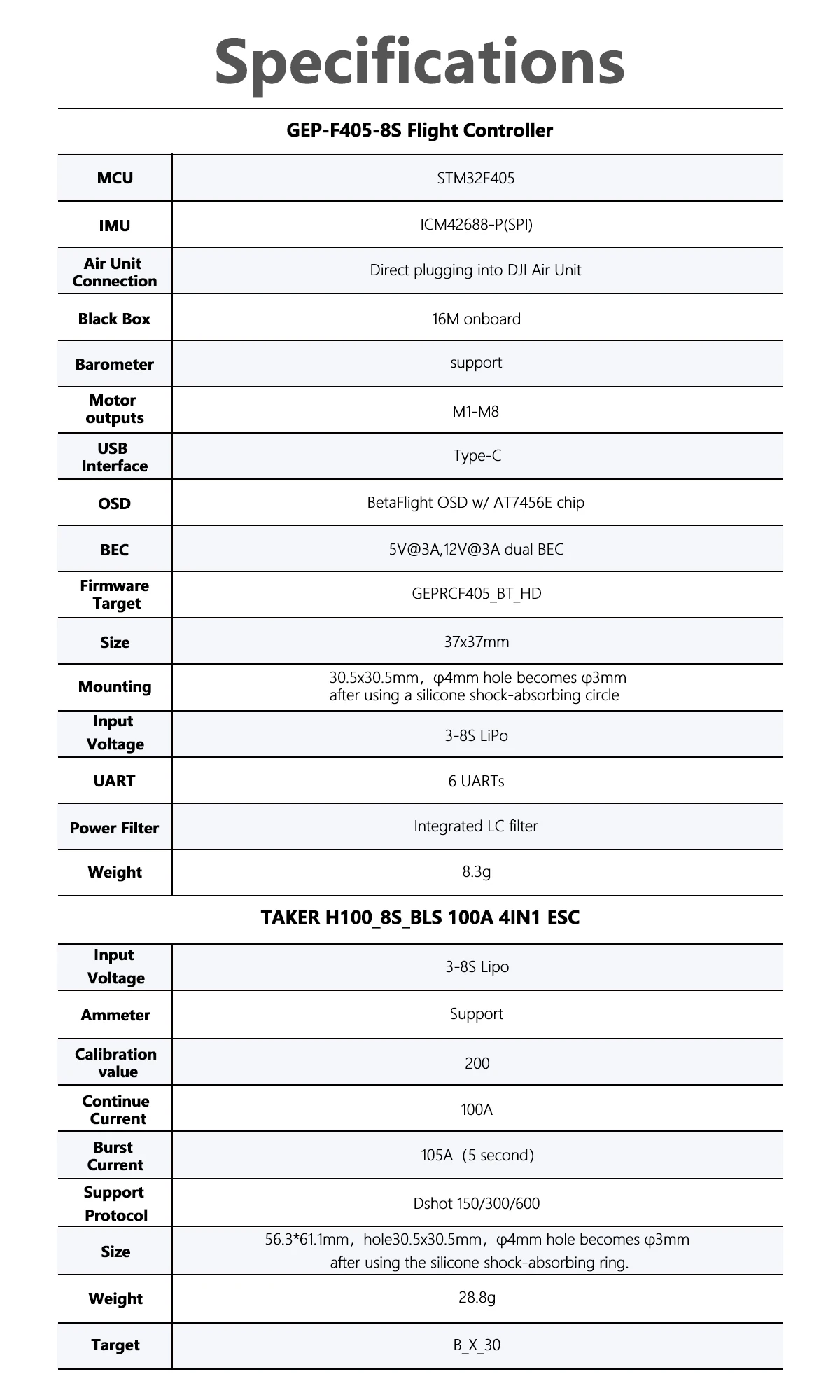

Specifications

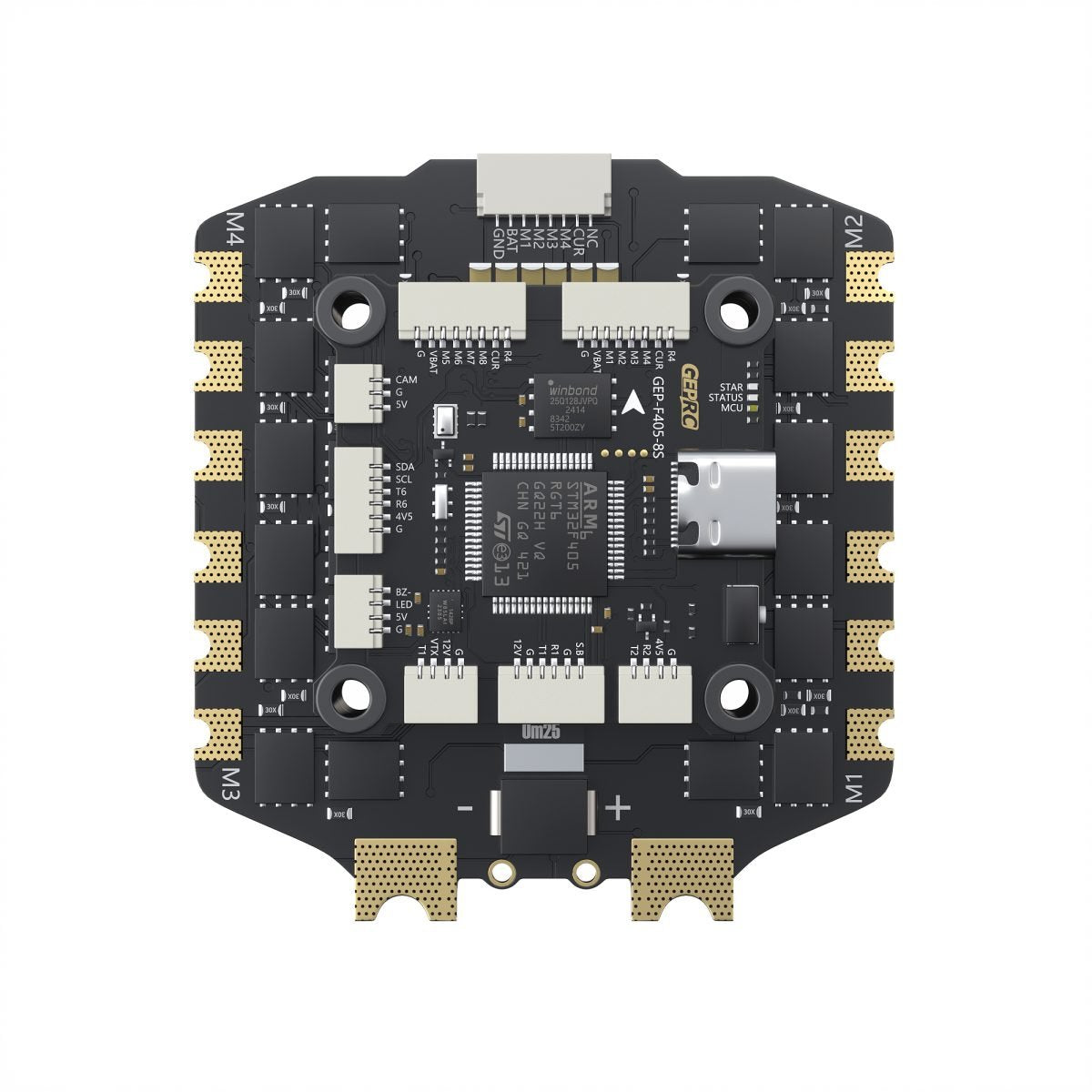

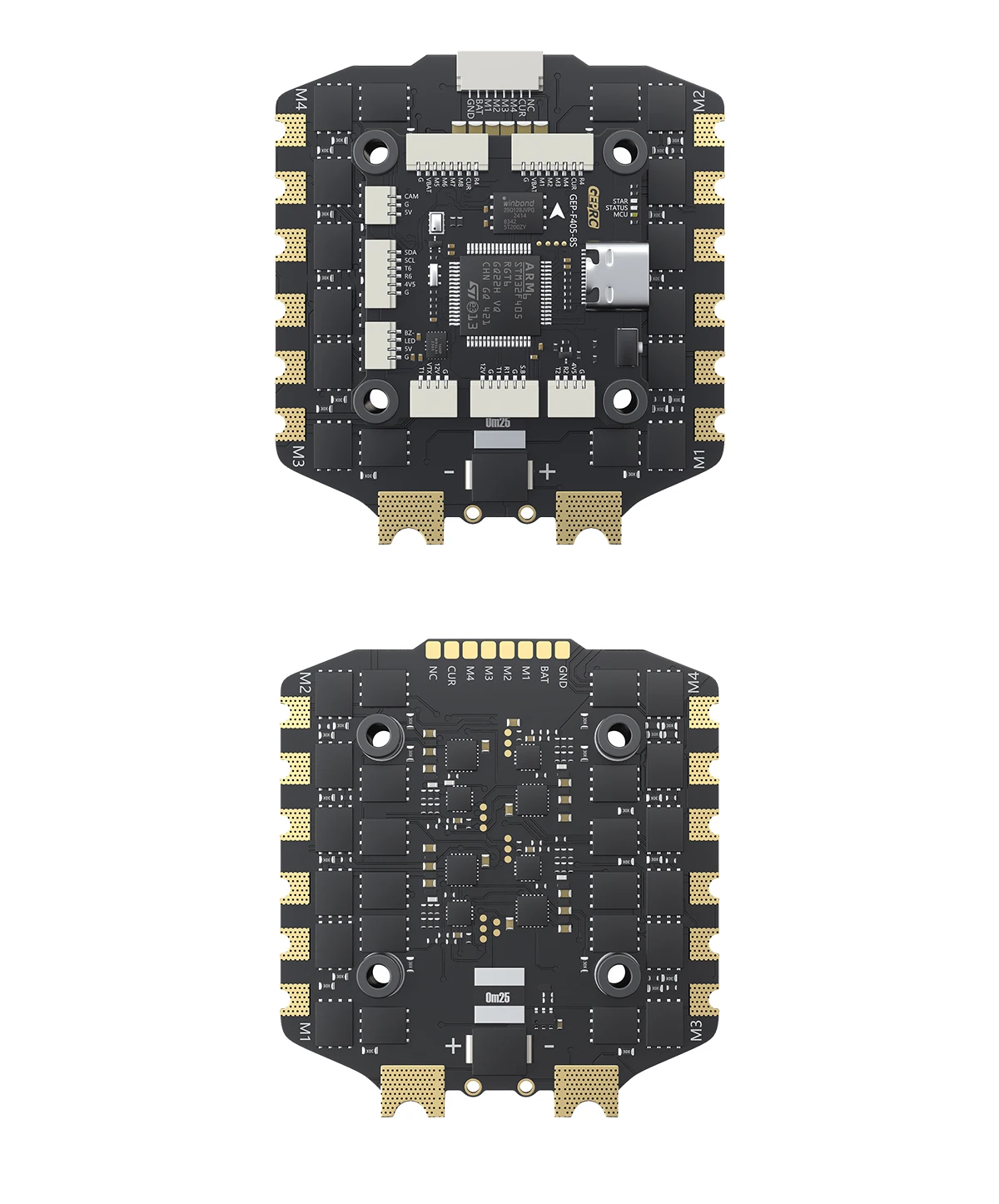

GEP-F405-8S Flight Controller
MCU：STM32F405
IMU：ICM42688-P(SPI)
Air Unit Connection：Direct plugging into DJI Air Unit
Black Box：16M onboard
Barometer: support
Motor outputs：M1-M8
USB Interface：Type-C
OSD：BetaFlight OSD w/ AT7456E chip
BEC：5V@3A,12V@3A dual BEC
Firmware Target：GEPRCF405_BT_HD
Size：37x37mm
Mounting: 30.5×30.5mm，φ4mm hole becomes φ3mm after using a silicone shock-absorbing circle
Input Voltage：3-8S LiPo
UART：6 UARTs
Power Filter：Integrated LC filter
Weight：8.3g

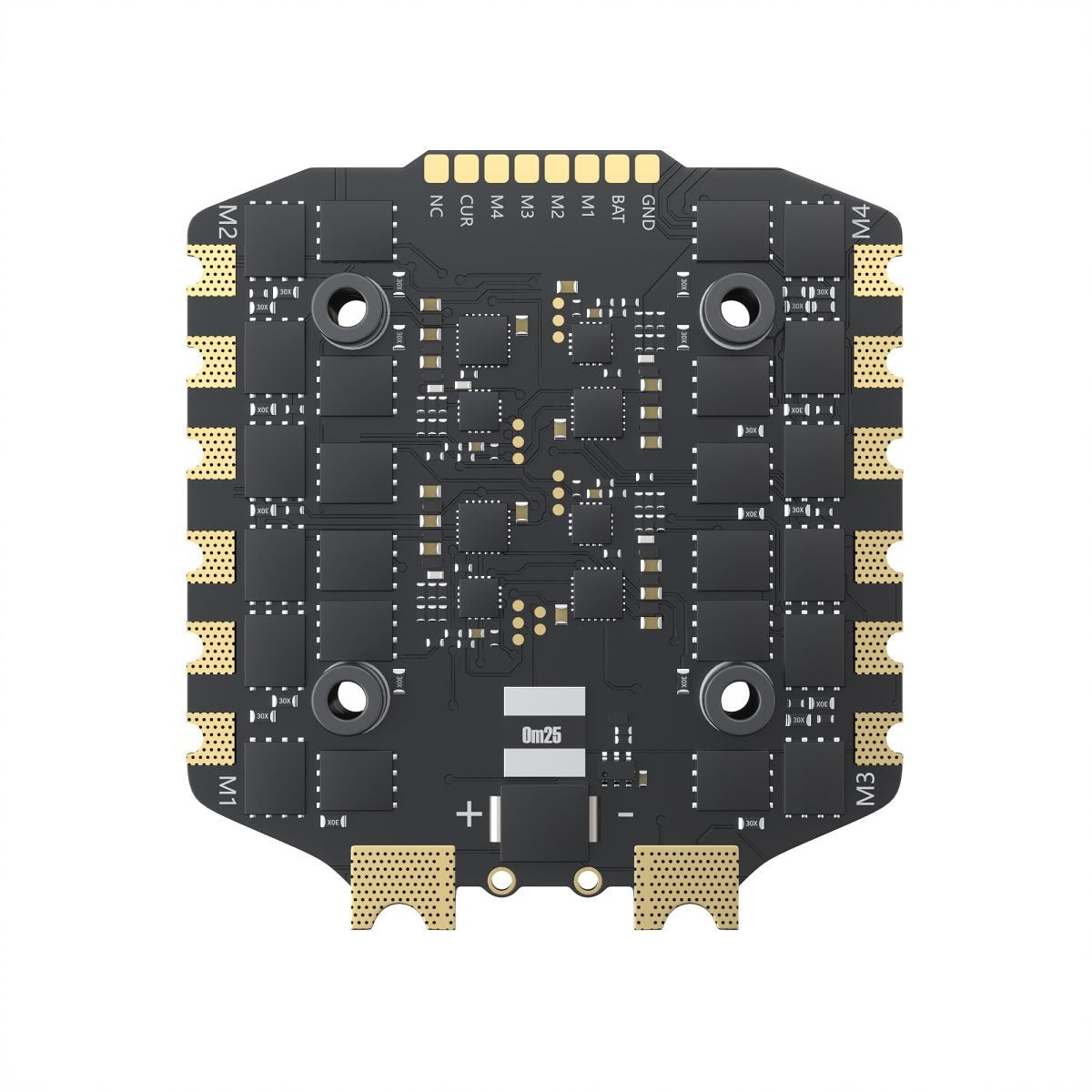

TAKER H100_8S_BLS 100A 4IN1 ESC
Input Voltage: 3-8S Lipo
Ammeter: Support
Calibration value：200
Continue Current：100A
Burst Current：105A（5 second）
Support Protocol: Dshot 150/300/600
Size：56.3*61.1mm，hole30.5×30.5mm，φ4mm hole becomes φ3mm after using the silicone shock-absorbing ring.
Weight: 28.8g
Target: B_X_3

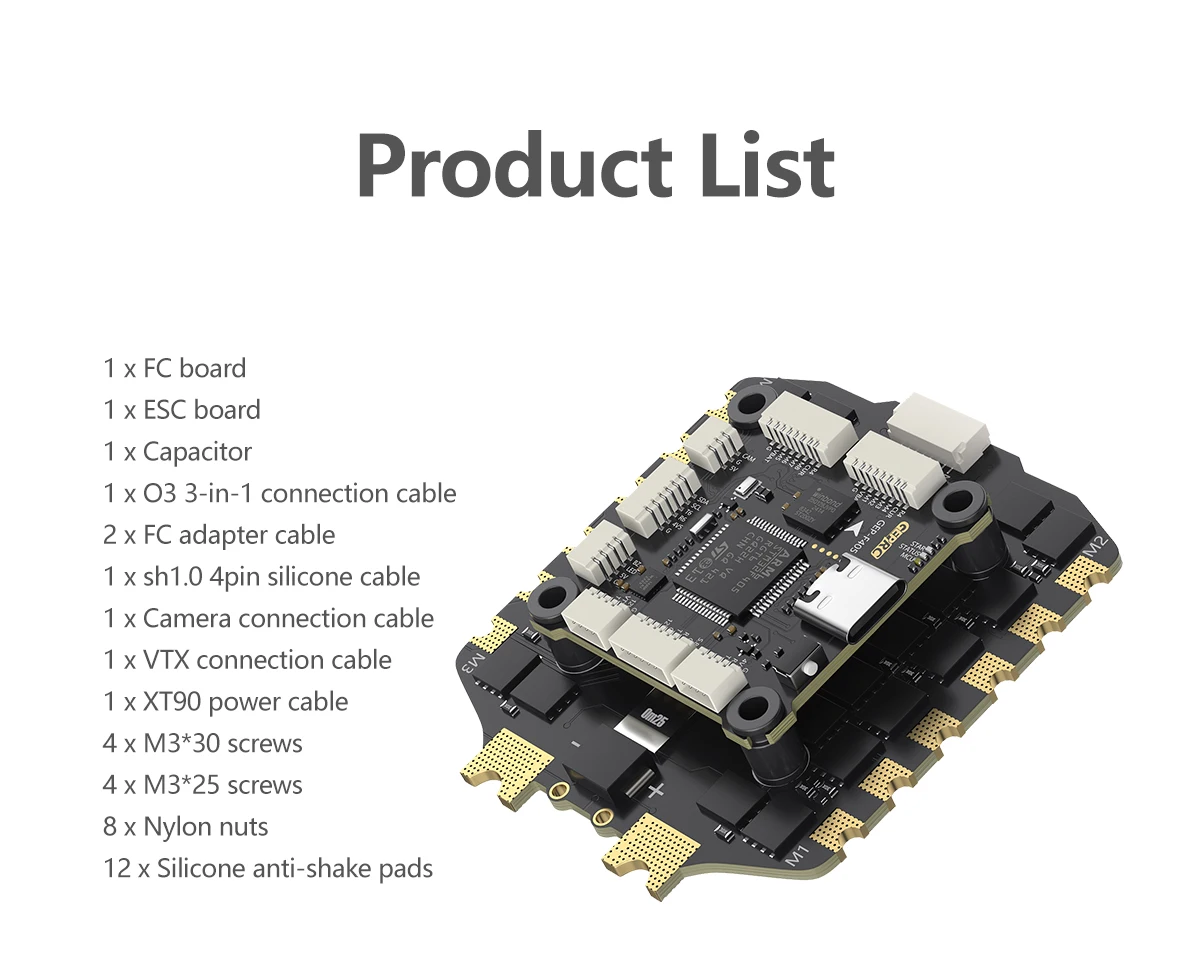

Includes
1 x FC board 1 x ESC board 1 x Capacitor 1 x O3 3-in-1 connection cable 2 x FC adapter cable 1 x sh1.0 4pin silicone cable 1 x Camera connection cable 1 x VTX connection cable 1 x XT90 power cable 4 x M3*30 screws 4 x M3*25 screws 8 x Nylon nuts 12 x Silicone anti-shake pads
