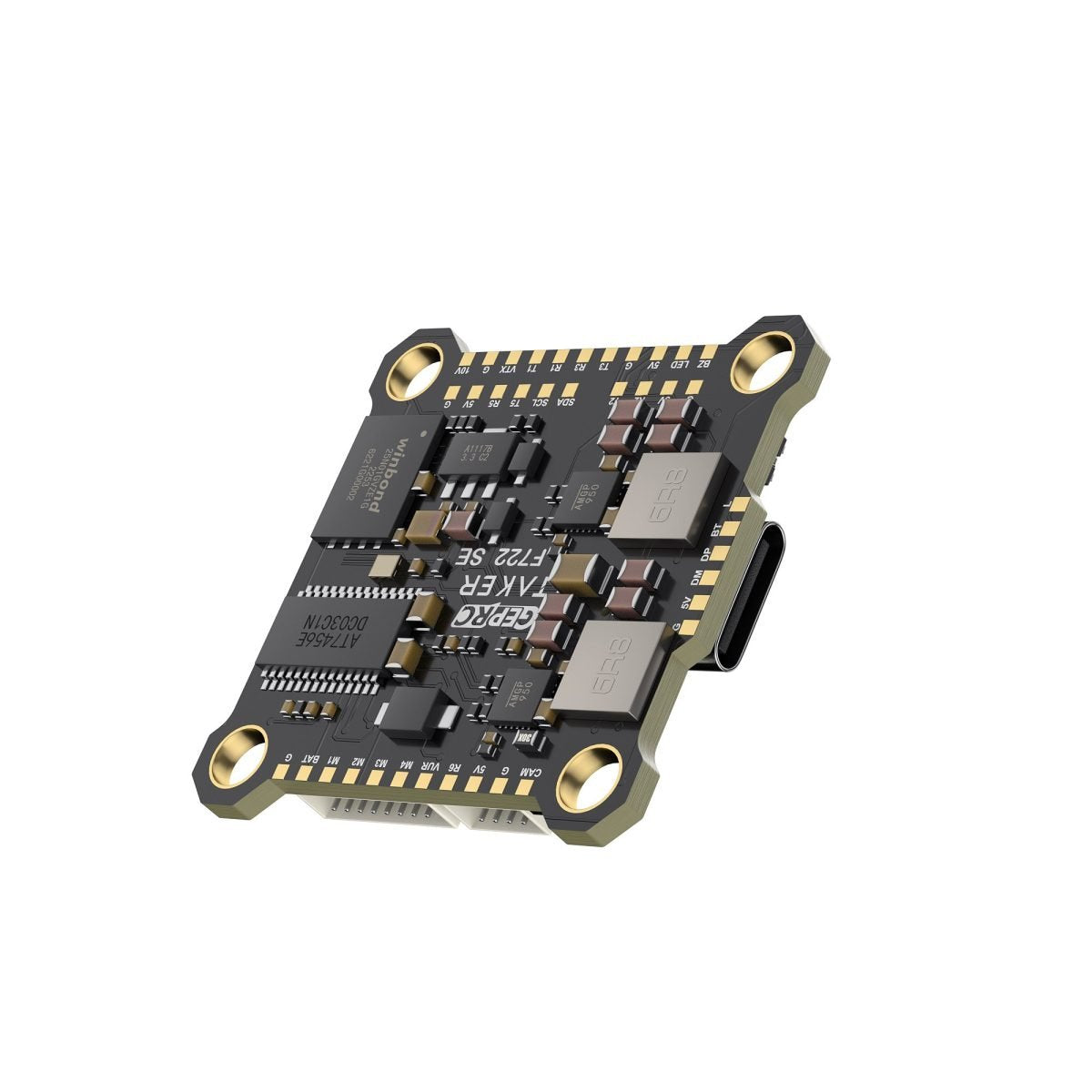

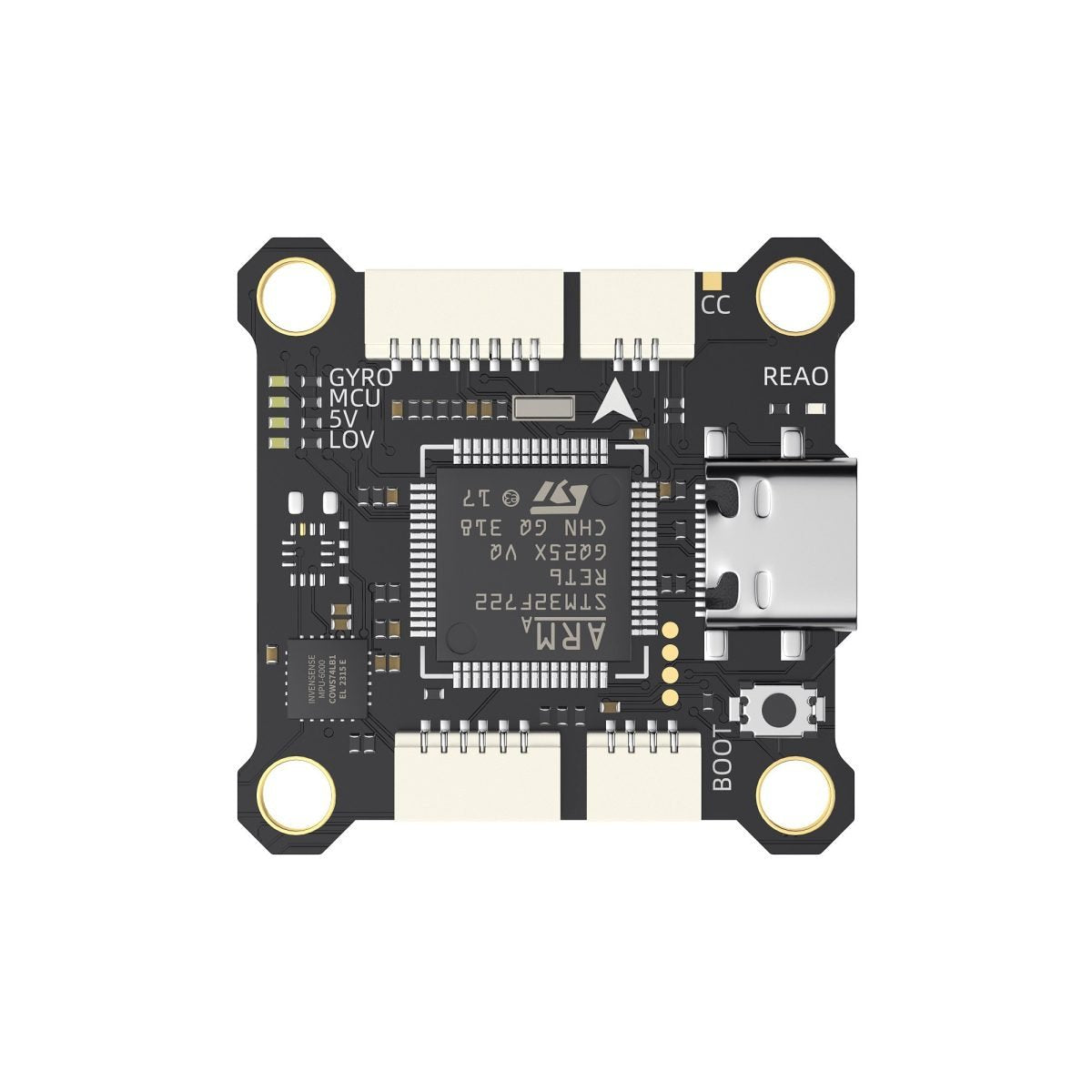

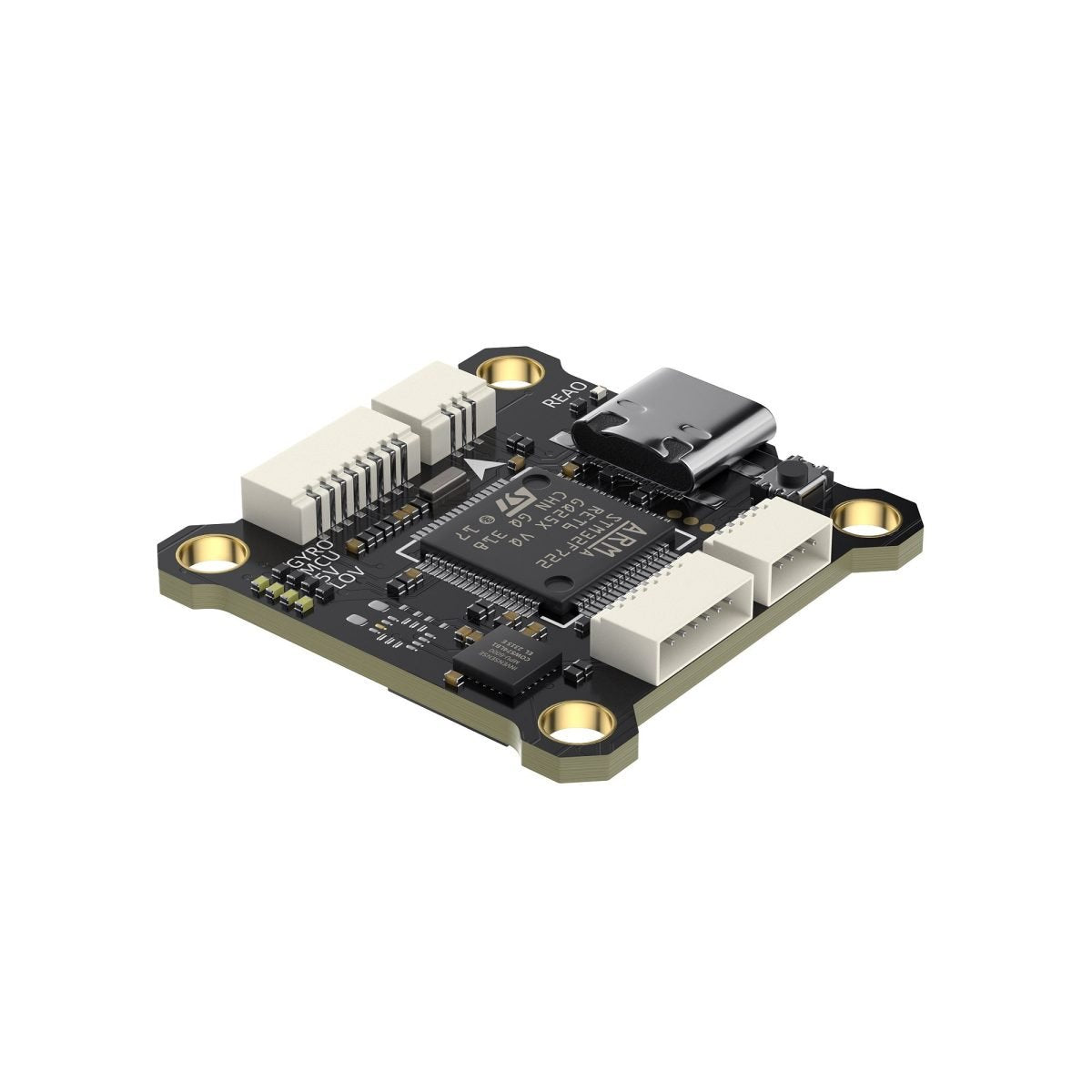

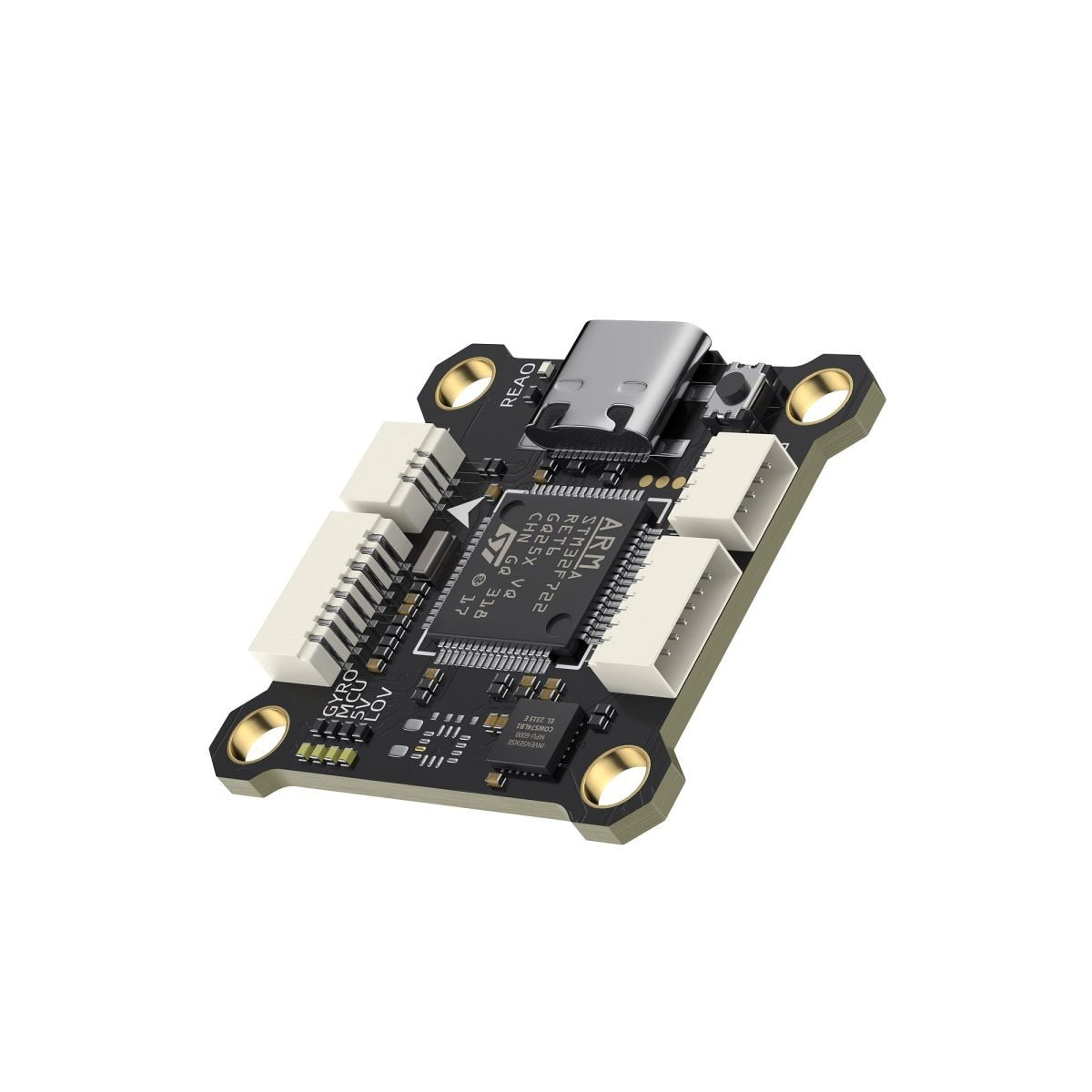

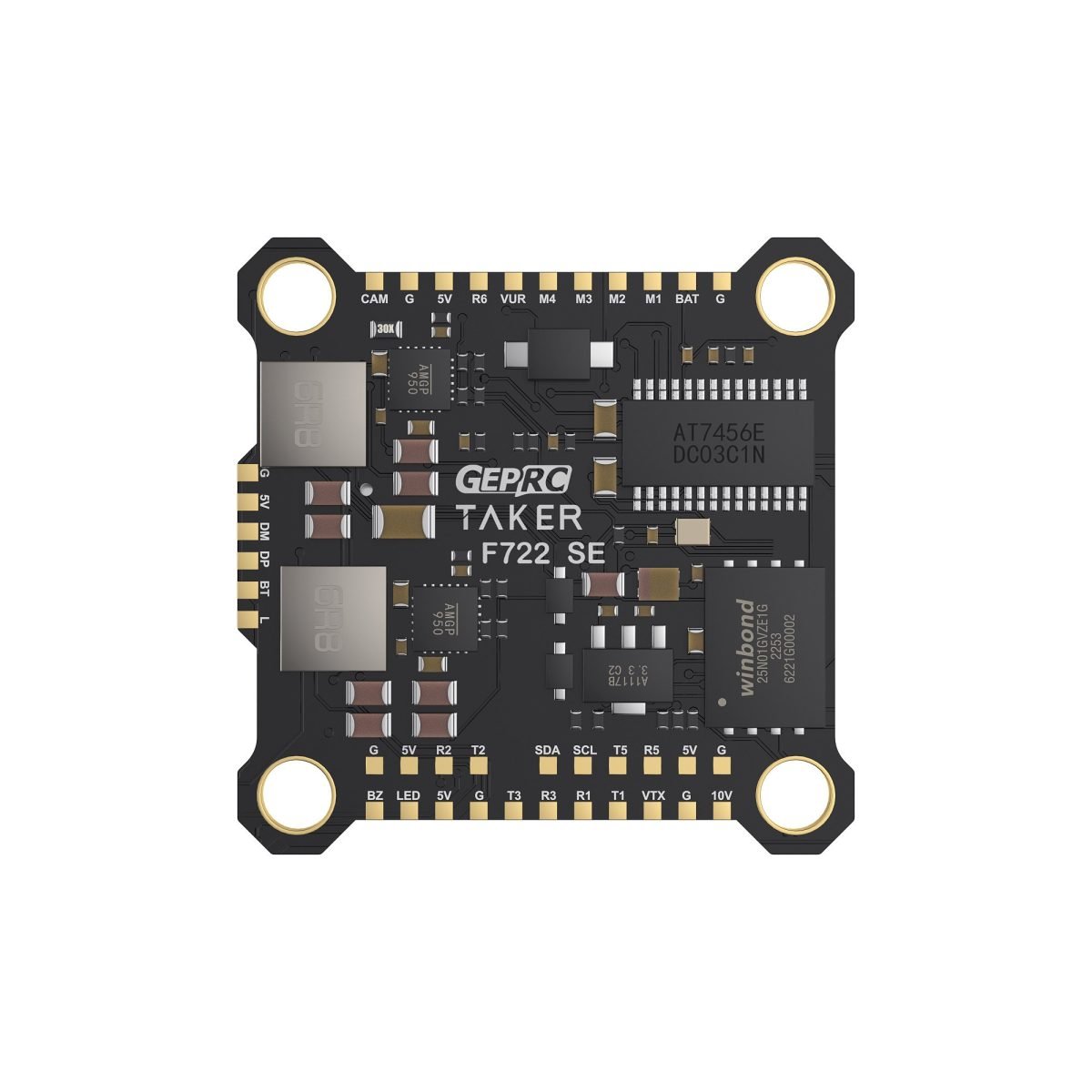

GEPRC TAKER F722 SE Flight Controller
GEPRC TAKER F722 SE Flight Controller
Couldn't load pickup availability
**Tax & Customs Notice (EU Customers)**
For orders **under €150**, the displayed prices **include all VAT and taxes**. You won’t need to pay anything extra upon delivery.
For orders **over €150**, import VAT and customs duties are **not included** in the price and must be paid by the recipient upon delivery, as per EU regulations.
If you have any questions about taxes or shipping, feel free to contact us — we're happy to help!
Specifications
Model: TAKER F722 SE FC
MCU: STM32F722RET6
IMU: MPU6000
Black Box: 32Mb Flash
USB: Type-C
OSD: BetaFlight OSD w/ AT7456E chip
BEC output: 5V@2.5A,10V@2A dual-output BEC
Firmware Target: TAKERF722SE
Dimension: 31.7×31.5mm
Moutning hole sizes:25.5×25.5mm,mounting hole size is φ4mm, use vibration reduction silicone to transform the fixing screws into 3mm or 2mm.
Input voltage: 7.4V-25.2V(LiPo 2-6S)
UART: 6 UARTS(for Uart6 ESC only)
Power Filter: Integrated LC filter
Weight: 6.0g
