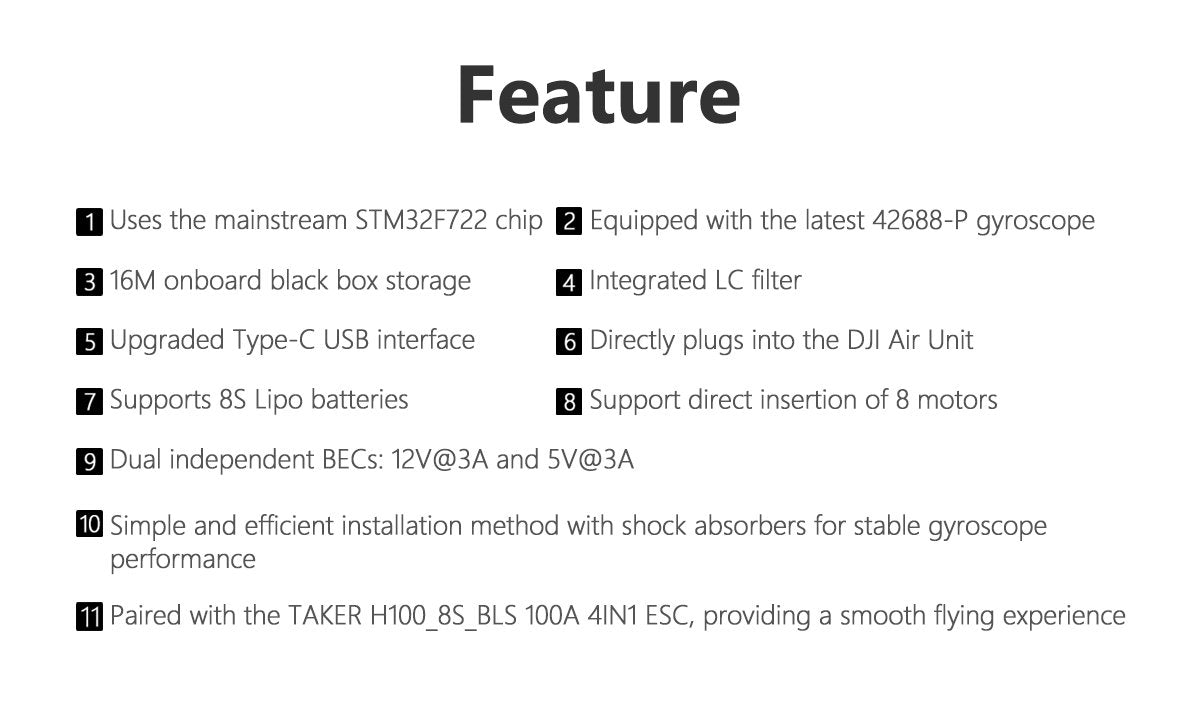

Feature
1. Uses the mainstream STM32F722 chip
2. Equipped with the latest 42688-P gyroscope
3.16M onboard black box storage
4. Integrated LC filter
5. Upgraded Type-C USB interface
6. Directly plugs into the DJI Air Unit
7. Paired with the TAKER H100_8S_BLS 100A 4IN1 ESC, providing a smooth flying experience
8. Simple and efficient installation method with shock absorbers for stable gyroscope performance
9. Dual independent BECs: 12V@3A and 5V@3A
10. Supports 8S Lipo batteries
11. Support direct insertion of 8 motors

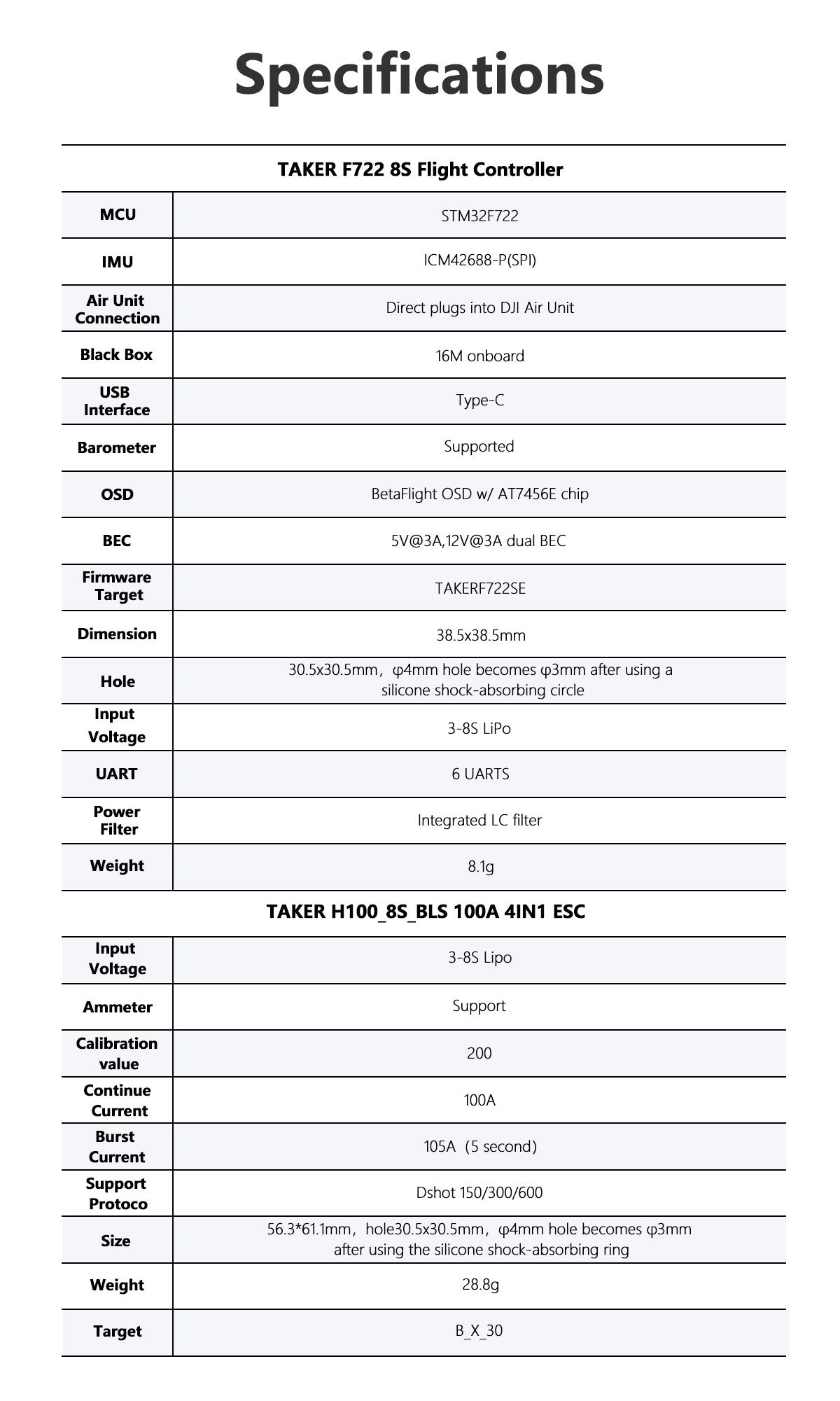

Specifications

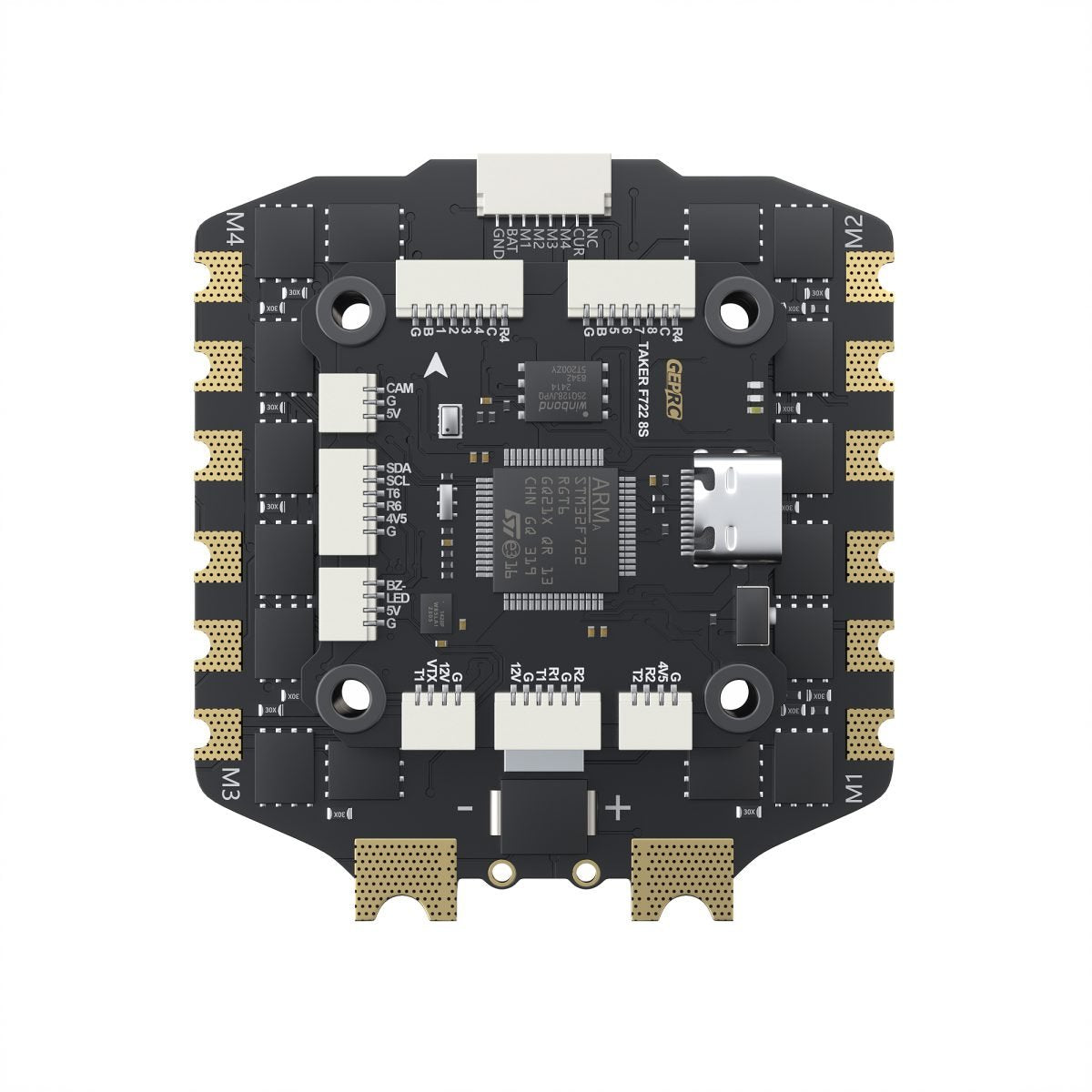

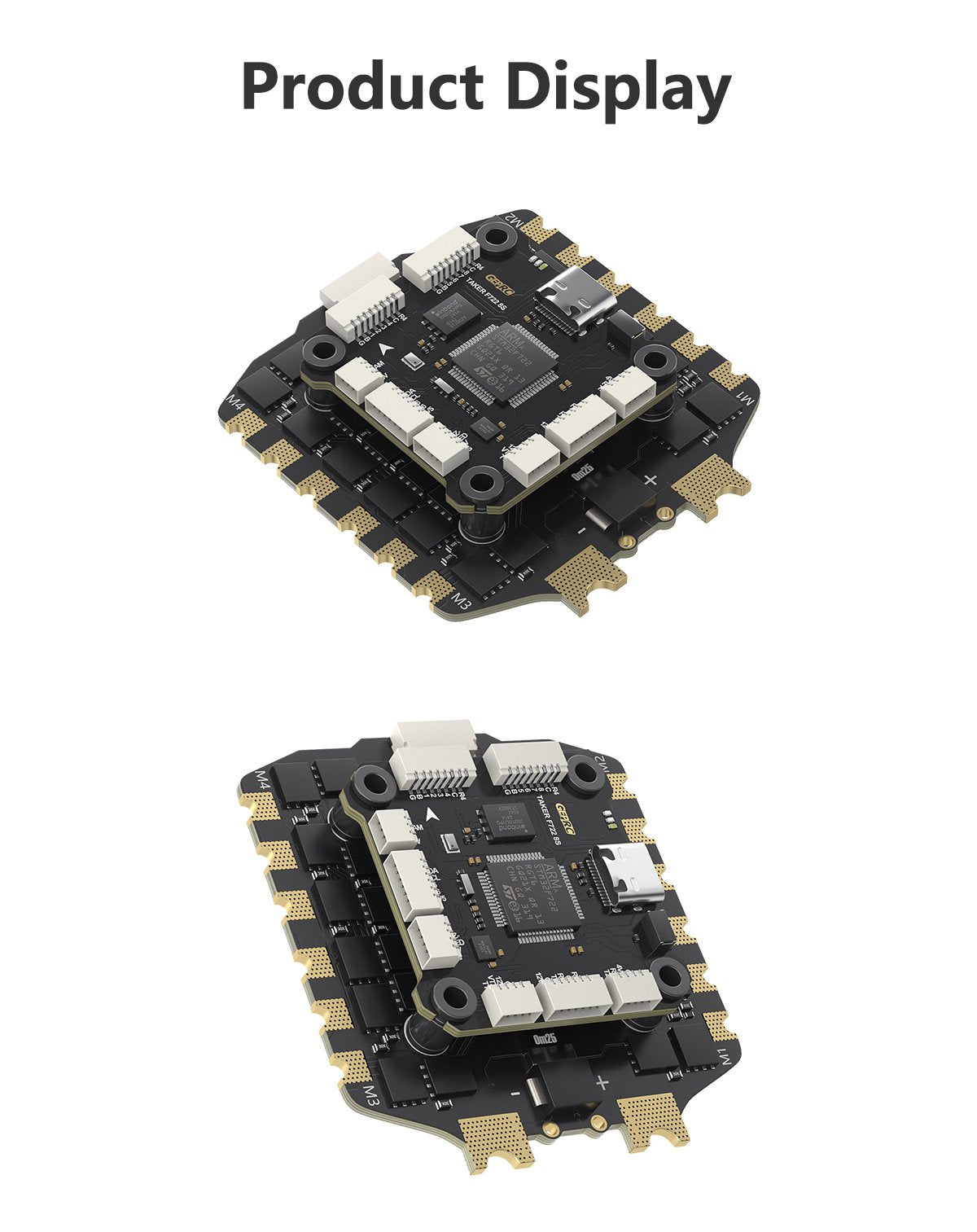

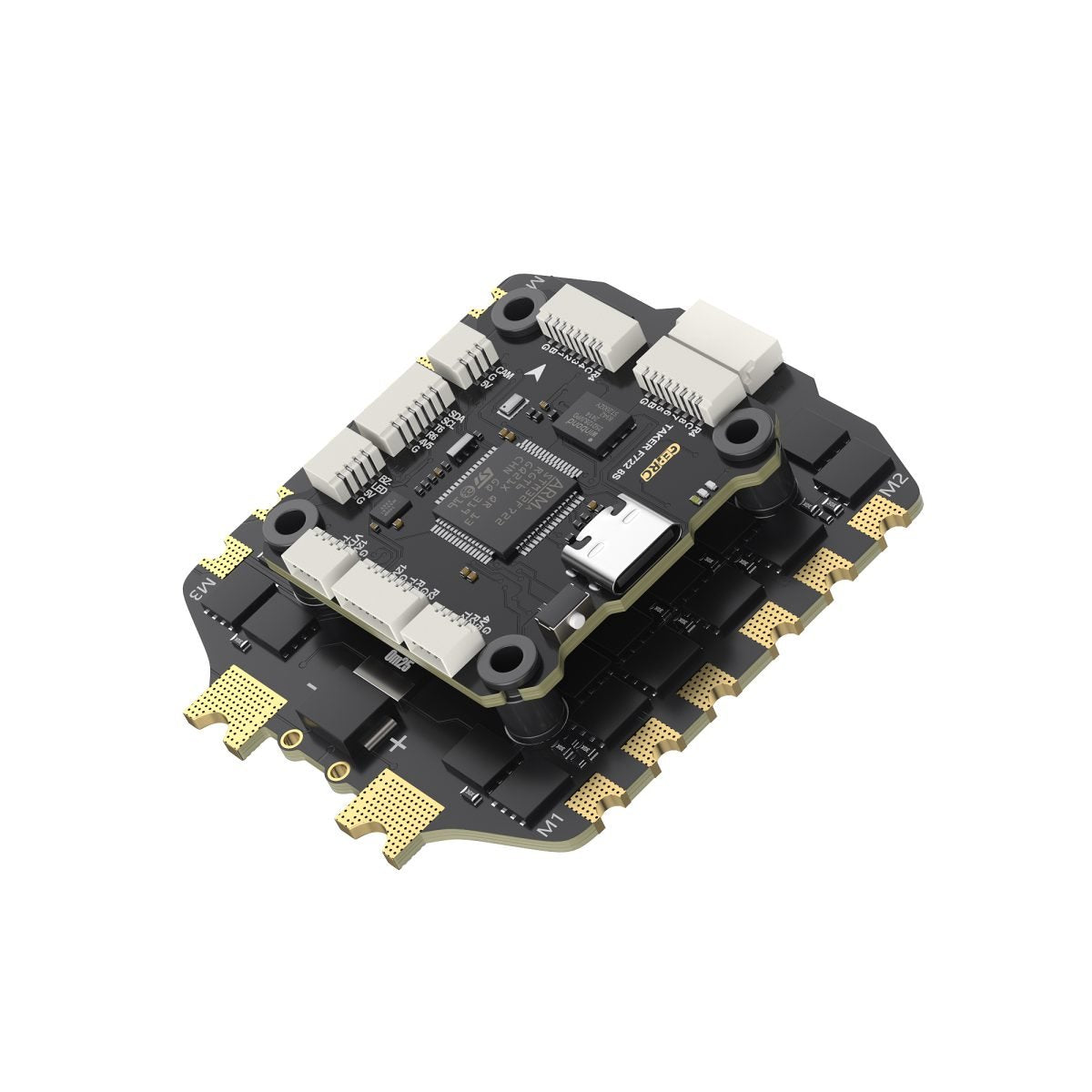

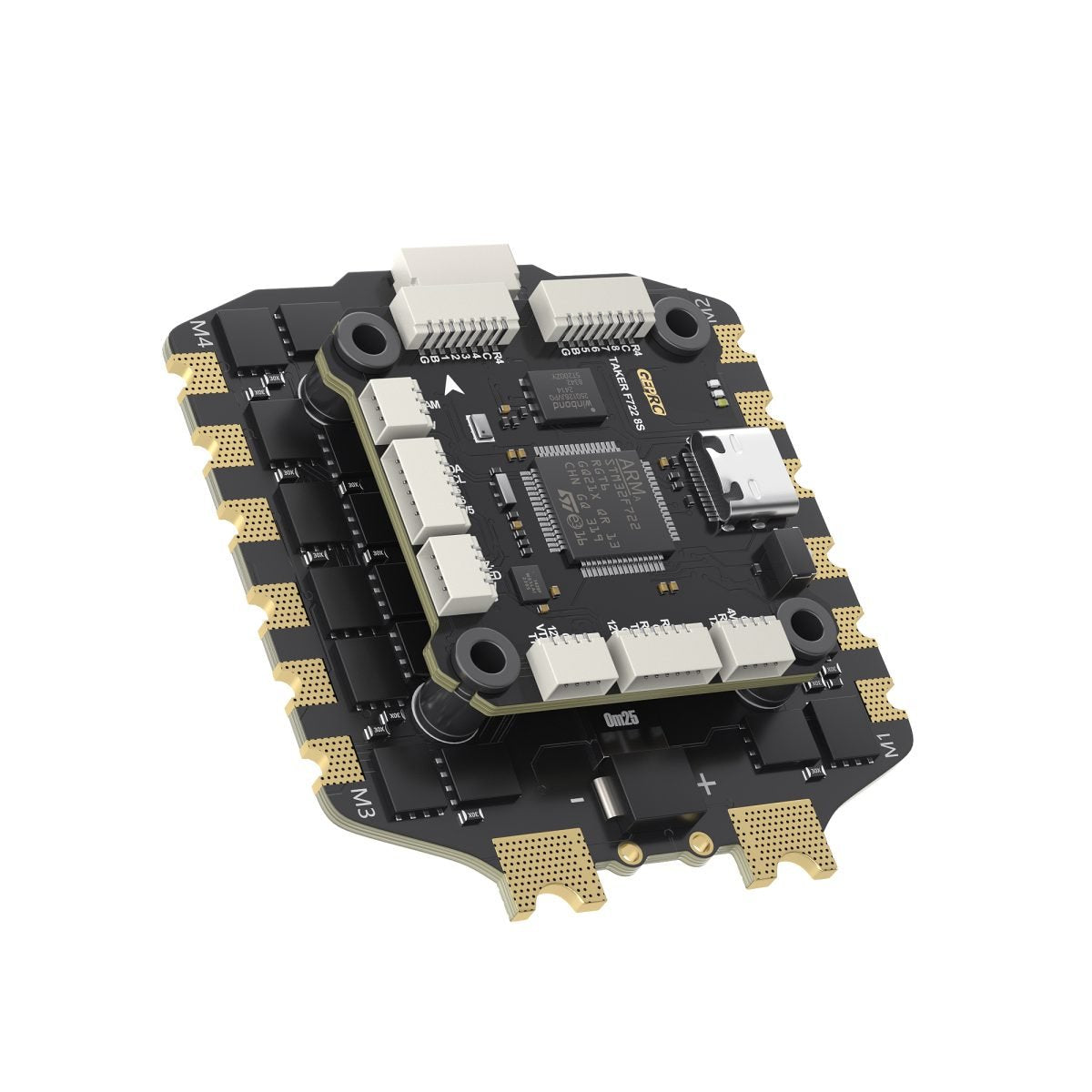

TAKER F722 8S Flight Controller
- MCU: STM32F722
- IMU: ICM42688-P(SPI)
- Air Unit Connection: Direct plugs into DJI Air Unit
- Black Box: 16M onboard
- USB Interface: Type-C
- Barometer: Supported
- OSD: BetaFlight OSD w/ AT7456E chip
- BEC: 5V@3A,12V@3A dual BEC
- Firmware Target: TAKERF722SE
- Dimension: 38.5×38.5mm,
- Mounfing Hole Size: 30.5×30.5mm，φ4mm hole becomes φ3mm after using a silicone shock-absorbing circle
- Input Voltage: 3-8S LiPo
- UART: 6 UARTs
- Power Filter: Integrated LC filter
- Weight: 8.1g Includes

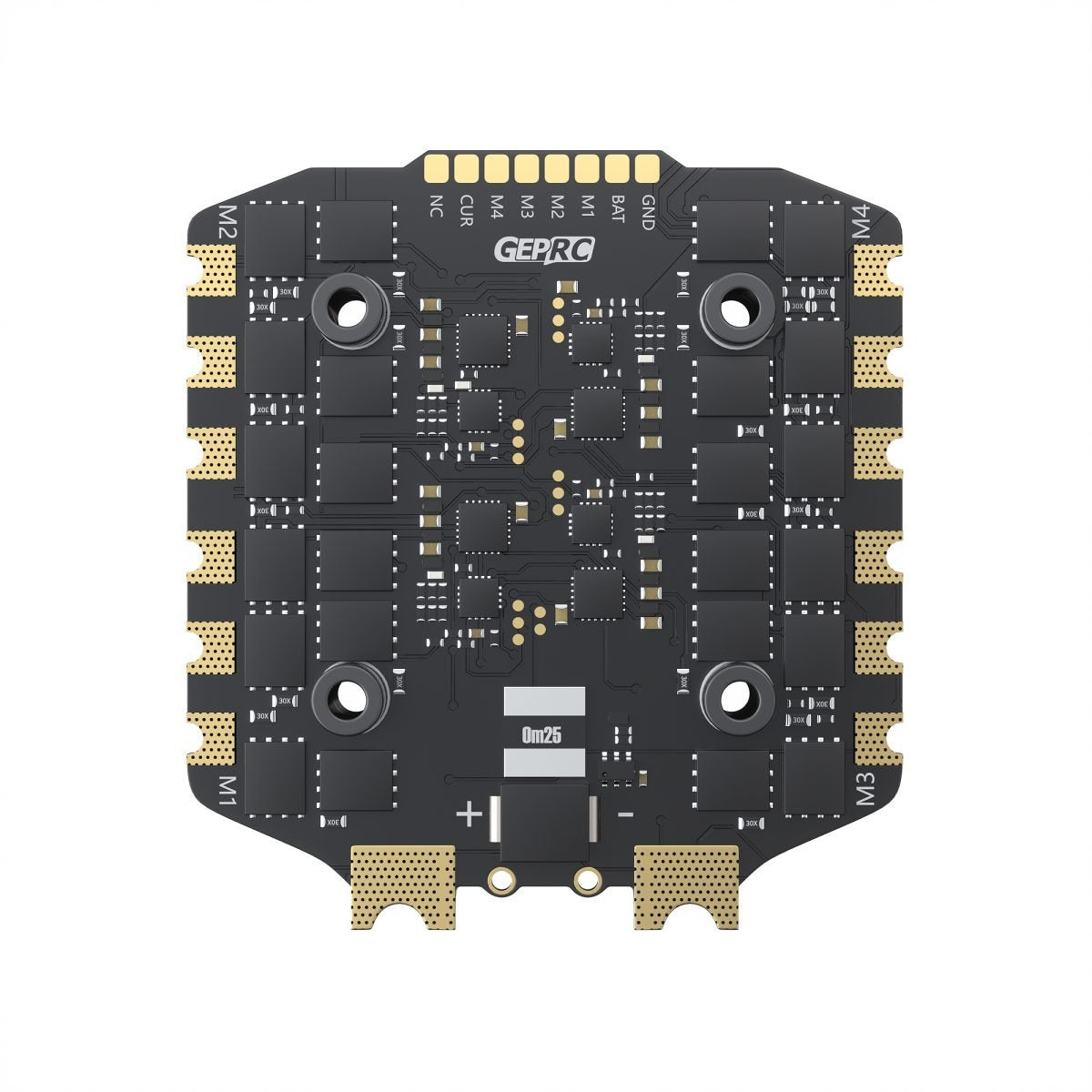

TAKER H100_8S_BLS 100A 4IN1 ESC
- Input Voltage: 3-8S Lipo
- Ammeter: Support
- Calibration value: 200
- Continue Current: 100A
- Burst Current: 105A (5 seconds)
- Support Protocol: Dshot 150/300/600
- Size: 56.3*61.1 mm; hole: 30.5×30.5 mm; φ4 mm hole becomes φ3mm after using the silicone shock-absorbing ring.
- Weight: 28.8g
- Target: B_X_30

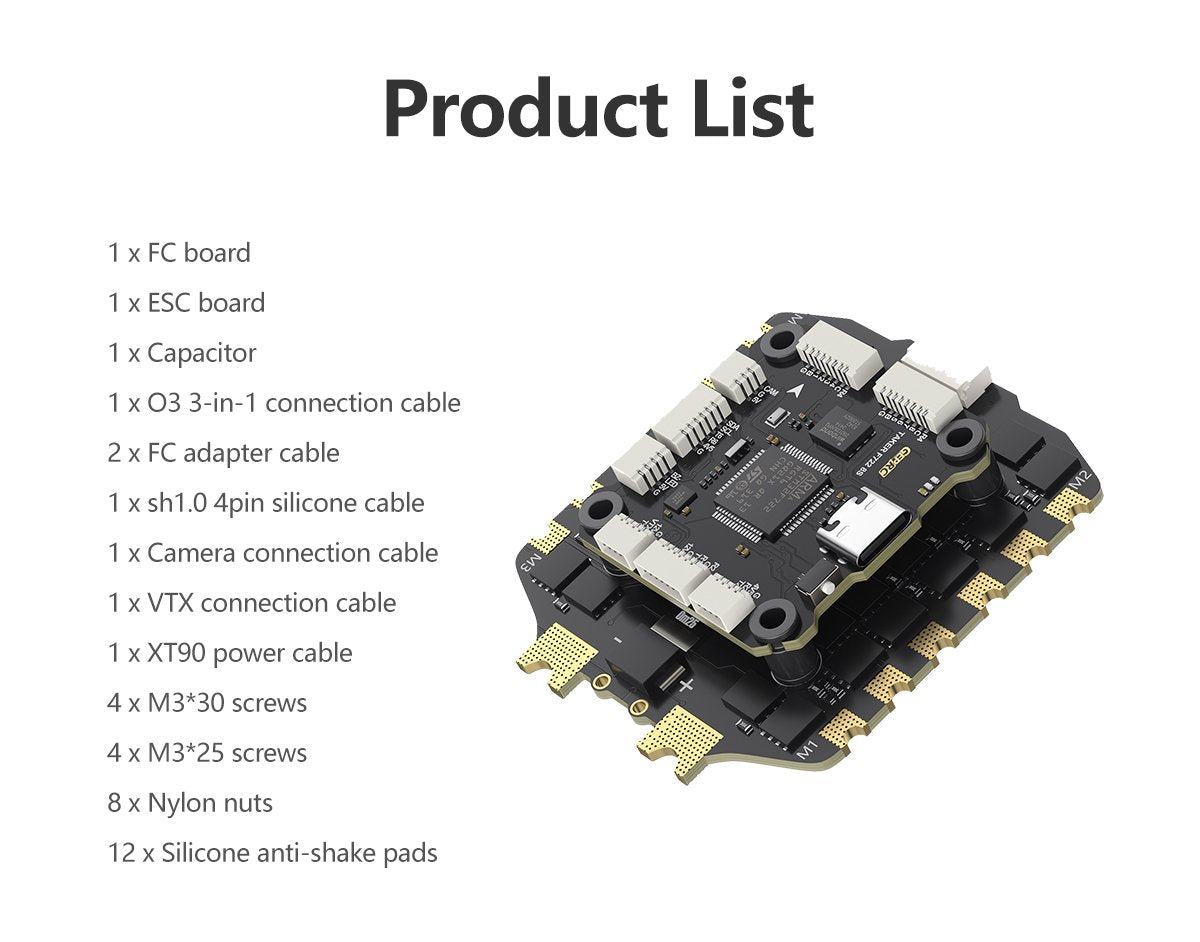

Includes
1 x FC board
1 x ESC board
1 x Capacitor
1 x O3 3-in-1 connection cable
2 x FC adapter cable
1 x sh1.0 4pin silicone cable
1 x Camera connection cable
1 x VTX connection cable
1 x XT90 power cable
4 x M3*30 screws
4 x M3*25 screws
8 x Nylon nuts
12 x Silicone anti-shake pads
